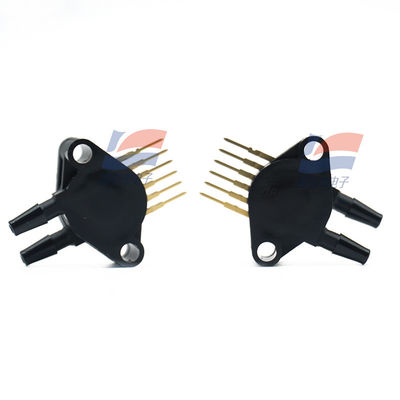

YJJ MPX5050DP Rare Inert Gas Sampling Differential Pressure 50KPA Trigger Interface Pressure Sensor

Product Description:

MPX5050DP Rare Inert Gas Sampling Differential Pressure 50KPA Trigger Interface Pressure Sensor

Features:

Piezoresistive sensors are advanced single-crystal silicon sensors. This sensor has A wide range of applications and is particularly suitable for those applications that adopt microcontrollers or microprocessors with A/D inputs. This patented unit sensor combines advanced micro-mechanical technology, thin-film metallization and bipolar processing to provide an accurate high-level analog output signal proportional to the applied pressure.

Characteristics

The error rate within the range of 0℃ to 85℃ is 2.5%

2. It is applicable to systems based on microprocessors or microcontrollers

3. Provide differential pressure and gauge pressure configurations

4. Patented silicon shear stress-strain gauge

5. Durable epoxy one-piece molded components

Brand: NXP/Freescale

Product type: Board computer interface pressure sensor

Pressure type: Differential

Working pressure: 7.25 psi

Accuracy: 2.5%

Output type: Analog

Installation style: Through Hole

Working power supply voltage: 5 V

Port type: Dual Axial Barbed

Packaging/Box: Unibody-6

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 125 ° C

Series: MPXx5050

Packaging: Tray

Trademark: NXP Semiconductors

Working power supply current: 7 mA

Output voltage: 4.587V to 4.813V

Port size: 4.93mm

Product type: Board Mount Pressure Sensors

100

Subcategory: Sensors

Power supply voltage - Maximum: 5.25V

Power supply voltage - minimum: 4.75V

Part number alias: 935324135117

Unit weight: 5.241g
