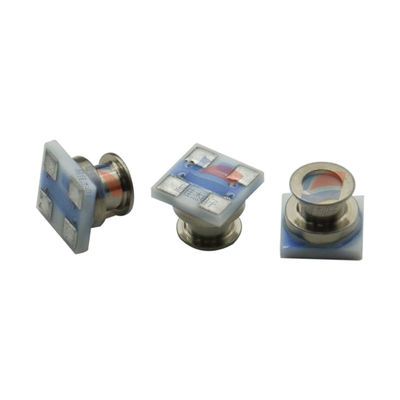

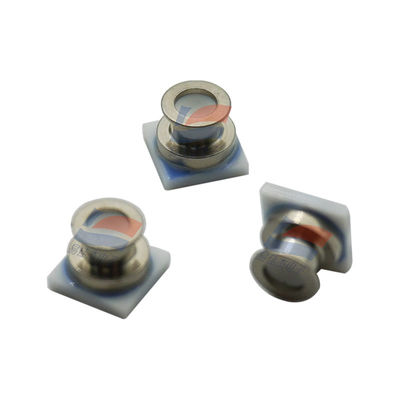

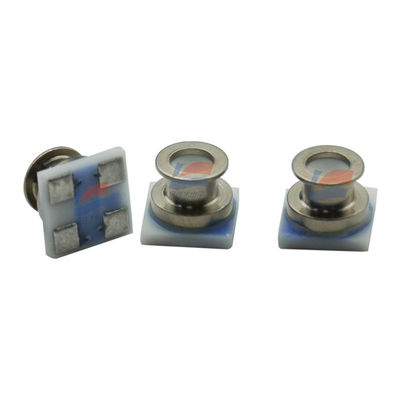

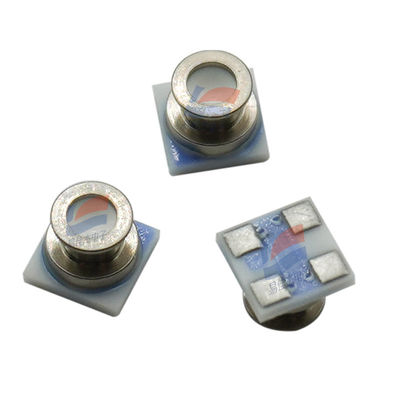

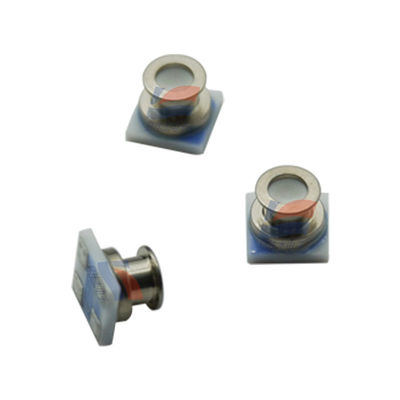

YJJ MS5837-30BA01-50 High-precision Water Depth And High-Resolution Pressure Sensor Is Used In Depth Measurement Systems

Product Description:

MS5837-30BA High-precision Water Depth And High-Resolution Pressure Sensor Is Used In Depth Measurement Systems

Features:

MS5837-30BA pressure sensor is a new generation of high-resolution I²C interface pressure sensor. It is an ideal choice for high-precision water depth measurement, with a water depth measurement resolution as high as 2mm. The MS5837-30BA pressure sensor module features a highly linear pressure sensing element and a 24-bit ΔΣ ADC with ultra-low power consumption, along with an integrated factory calibration coefficient. The MS5837-30BA pressure sensor A offers high-precision 24-bit digital output for pressure and temperature. Customers can configure the conversion speed and power consumption according to their application requirements. High-resolution temperature output can simultaneously achieve the function of a thermometer. The MS5837-30BA pressure sensor can be used in conjunction with all types of microcontrollers. The communication protocol is very simple and there is no need to modify the internal registers. Waterproof glue and anti-magnetic stainless steel rings enable the sensor to be used in sports watches with a water resistance of 100 meters. This new sensor module is based on advanced MEMS technology and benefits from MEAS 'experience in the research and development and mass production of barometric/altimeters over the past decade or so.

Technical indicators:

Type: Absolute pressure

Measurement range: 0-30 bar

Accuracy: Resolution 0.2mbar

Input: I²C

Power supply: 1.5-3.6V

Electrical connection: Solder pads

Operating temperature: -20 to 85℃

Feature: Ceramic-metal packaging, 3.3×3.3×2.5mm; High-resolution module

Typical applications: handheld depth measurement systems, underwater computers, exploration or multi-functional watches, data loggers

Pressure type: Absolute

Working pressure: 0 bar to 30 bar

Accuracy: 50 mbar

Output type: Digital

Installation style: SMD/SMT

Interface type: I2C

Working power supply voltage: 3 V

Port type: No Port

Resolution: 24 bits

Minimum operating temperature: -20 ° C

Maximum operating temperature: + 85 ° C

Series: MS5837-30BA

Encapsulation: Reel

Encapsulation: Cut Tape

Packaging: MouseReel

Trademark: Measurement Specialties

Working power supply current: 20.09 uA

Product type: Board Mount Pressure Sensors

2500

Subcategory: Sensors

Power supply voltage - Maximum: 3.6V

Power supply voltage - minimum: 1.5V

Unit weight: 35.093 g
