Product Details:
|
| Working Power Supply Voltage: | 10V | Port Type: | Single Axial Barbless |
|---|---|---|---|
| Package/Box: | SIP-4 | Minimum Operating Temperature: | -40 ° C |
| Maximum Operating Temperature: | + 85 ° C | Port Size: | 0.25 Inches |
| Highlight: | 250PSI Pressure Sensor,Unamplified Pressure Sensor,Non-Compensated Pressure Sensor |
||
Product Description:

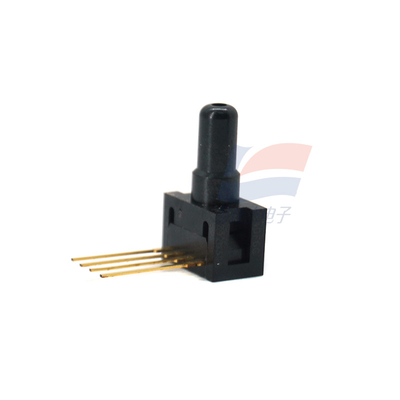

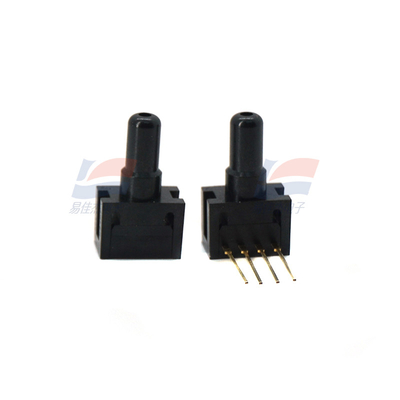

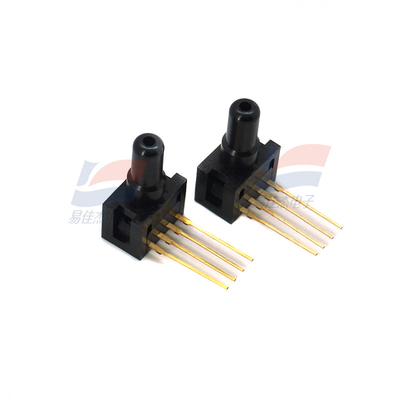

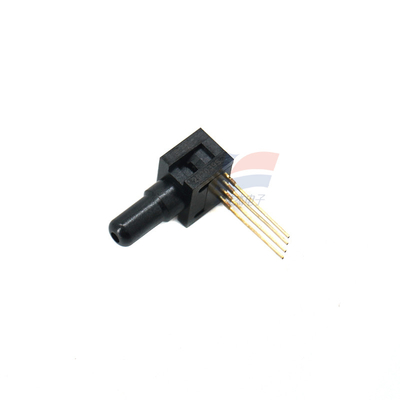

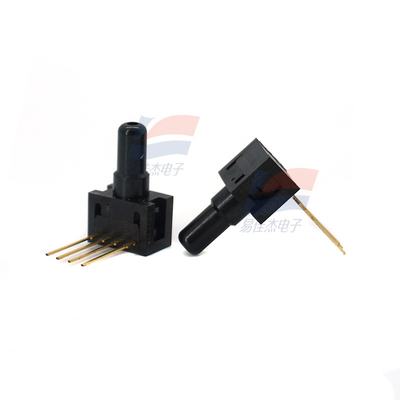

24PCGFA6G Unamplified Non-Compensated Trigger Interface Pressure Sensor With A Range Of 0 To 250PSI
Features:
24PC series of micro pressure sensors offer reliable gauge pressure sensing performance in a compact package. This sensor adopts a mature sensing technology and utilizes a special piezoresistive micro-mechanical sensing element. The low-power, no amplification, and no compensation Wheatstone bridge circuit design provides an inherently stable mV output within the sensing range of 0.5 psi to 250 psi.
The Honeywell 24PC/26PC series of low-pressure sensors, these micro surface mount technology (SMT) low-pressure sensors are small and economical devices, designed to be used in conjunction with wet/wet differential sensing.
Due to the long-term stable reliability and accuracy of its single through-hole package, the SMT model's smaller configuration reduces the volume space on the printed circuit board, thereby reducing the overall size of the printed circuit board and lowering the cost.
The sensor can be installed on the board together with other commonly used SMT equipment, helping to eliminate auxiliary board installation operations and improve production efficiency.
The 24PC/26PC sensor adopts the sensing technology of workers and uses professional piezoresistive microcomputers to process the sensing components, providing high performance, reliability and accuracy.
Both sensor series are non-amplifying, but the 26PC series is temperature-compensated.
The sensor can be used with a variety of dry and wet media, is compatible with polyphthalamide (PPA) plastic and medium seals, and is designed to operate within a temperature range of -40 to 85 degrees. Measure a pressure of ±1 to ±15 psi at C.
Product type: Board computer interface pressure sensor
Pressure type: Vacuum, Gauge
Working pressure: 250 psi
Accuracy: 0.25%
Output type: Analog
Installation style: Through Hole
Working power supply voltage: 10 V
Port type: Single Axial Barbless
Package/Box: SIP-4
Minimum operating temperature: -40 ° C
Maximum operating temperature: + 85 ° C
Series: 24PC
Trademark: Honeywell
Port size: 0.25 inches
Product type: Board Mount Pressure Sensors
25
Subcategory: Sensors
Power supply voltage - Maximum: 12 V
Unit weight: 2 g
Specifications:
| Working pressure | 250 psi |
| Accuracy | 0.25% |
| Output type | Digital, Analog |
| Installation style | SMD/SMT |
