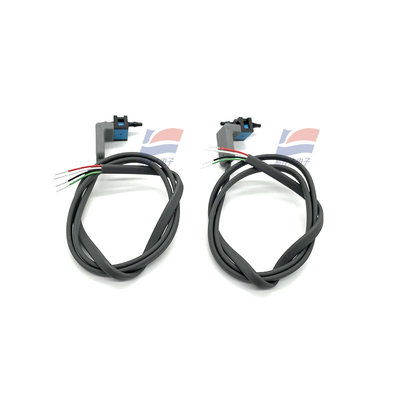

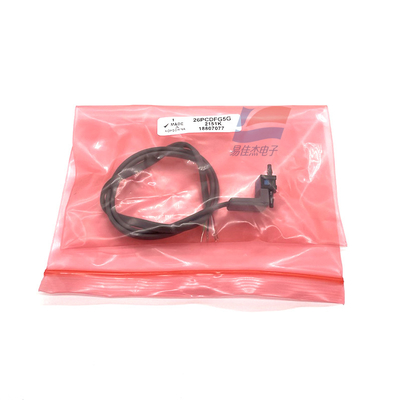

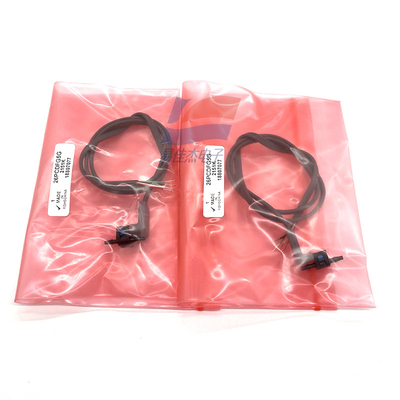

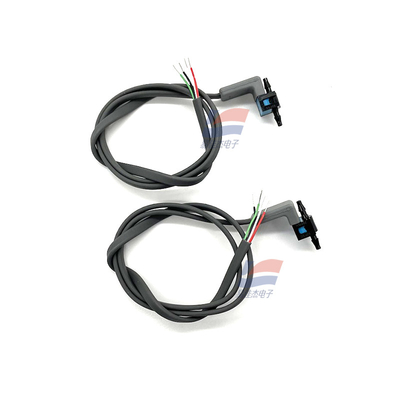

YJJ 26PCDFG5G Flow-through Pressure Sensor Capable Of Measuring Positive And Negative Gauge Pressure Of 30psi

Product Description:

26PCDFG5G Flow-through Pressure Sensor Capable Of Measuring Positive And Negative Gauge Pressure Of 30psi

Features:

26PC Circulation series

Compensatory type. Low pressure. mV output. Flowmeter. SIP. Linearity and lag: 0.35% typ.

Pressure range

1 psi to 100 psi

26PC series of small pressure sensors can provide reliable gauge pressure sensing performance within a compact package. This sensor is equipped with verified sensing technology and employs a dedicated piezoresistive microfabrication sensing element. The low-power, non-amplification, compensating Wheatstone bridge circuit design provides an intrinsically stable mV output within the sensing range of 1.0 psi to 250 psi.

26PC flow-through series, compensating type/non-amplification type, gauge pressure, 0 psi to 100 psi, 1 x 4, with wiring harness, flow-through type, short port.

The 26PC series of small pressure sensors can provide reliable gauge pressure sensing performance within a compact package. This sensor is equipped with verified sensing technology and employs a dedicated piezoresistive microfabrication sensing element. The low-power, non-amplification, compensating Wheatstone bridge circuit design provides an intrinsically stable mV output within the sensing range of 1.0 psi to 250 psi.

Product type: Board computer interface pressure sensor

Pressure type: Vacuum, Gauge

Working pressure: 30 psi

Accuracy: 0.2%

Output type: Analog

Installation style: Through Hole

Port type: Single Axial Barbed

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 85 ° C

Series: 26PC

Trademark: Honeywell

Product type: Board Mount Pressure Sensors

25

Subcategory: Sensors

Power supply voltage - Maximum: 10 V

Unit weight: 170.100 g

Specifications:
