Product Details:
|
| Accuracy: | 0.4% | Port Type: | Single Radial Barbed |
|---|---|---|---|
| Package/Box: | DIP-4 | Minimum Operating Temperature: | -40 ° C |
| Maximum Operating Temperature: | + 85 ° C | Series: | 26PC |
| Highlight: | Flow-through Pressure Sensor,0-30psi Pressure Sensor,YJJ 26PCDFJ6G Pressure Sensor |
||
Product Description:

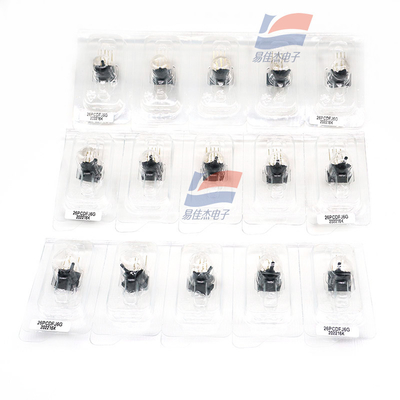

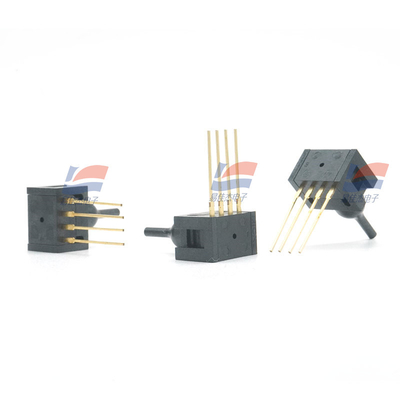

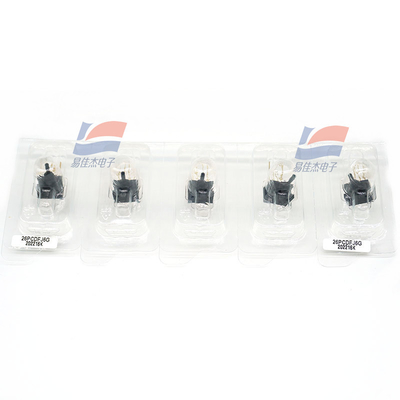

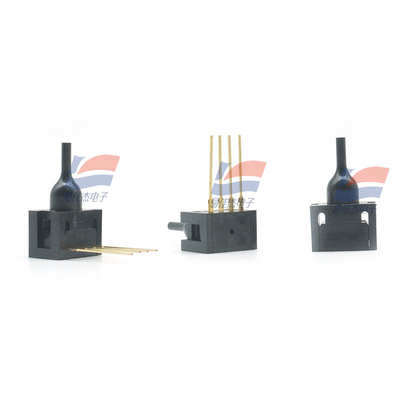

26PCDFJ6G Compensatory Online Measurement 0-30psi Flow-through Trigger Interface Pressure Sensor
Features:
26PC series compensating type. Low pressure. mV output. Differential pressure, wet/wet differential pressure, gauge pressure. DIP, SIP, SMT. Linearity and lag: 0.5% typ. Pressure range
0.5 psi to 250 psi (SIP, DIP)
1 psi to 15 psi (SMT)
The factory-calibrated 26PC series of small pressure sensors feature a compact package size and offer reliable gauge pressure sensing performance. This sensor is equipped with verified sensing technology and employs dedicated piezoresistive micro-machined sensing elements, allowing for part interchangeability. It features high performance, reliability and accuracy. The low-power, amplitation-free and compensation-free Wheatton bridge circuit can provide a stable mV output within the sensing range of 1.0 psi to 250 psi.
Product type: Board computer interface pressure sensor
Pressure type: Gauge
Working pressure: 0 psi to 30 psi
Accuracy: 0.4%
Output type: Analog
Installation style: Through Hole
Port type: Single Radial Barbed
Package/Box: DIP-4
Minimum operating temperature: -40 ° C
Maximum operating temperature: + 85 ° C
Series: 26PC
Trademark: Honeywell
Product type: Board Mount Pressure Sensors
25
Subcategory: Sensors
Power supply voltage - Maximum: 10 V
Unit weight: 2 g
Specifications:
| Working pressure | 0 psi to 30 psi |
| Accuracy | 0.4% |
| Output type | Digital, Analog |
| Installation style | SMD/SMT |
