Product Details:
|
| Response Time: | 1 Ms | Power Supply Voltage: | 5V |
|---|---|---|---|
| Minimum Operating Temperature: | -45°C | Maximum Operating Temperature: | +125°C |
| Pressure Type: | Gauge | Unit Weight: | 9.681 G |
| Highlight: | 40PC015G2A Pressure Sensor,Pressure Amplification Compensation Pressure Sensor |
||
Product Description:

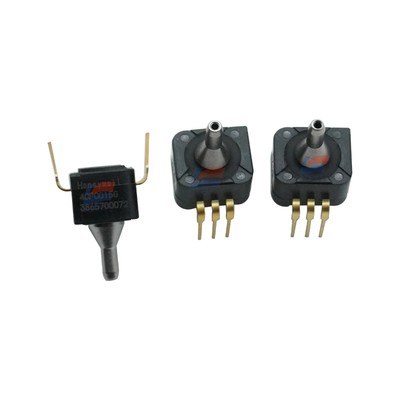

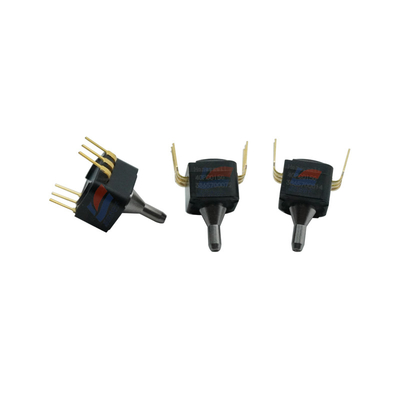

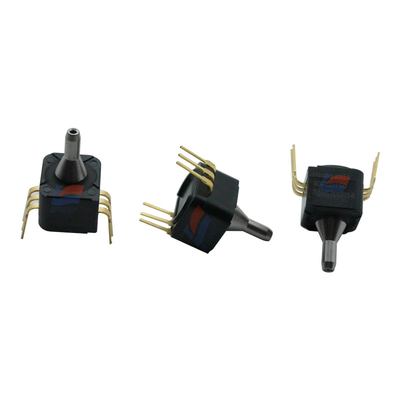

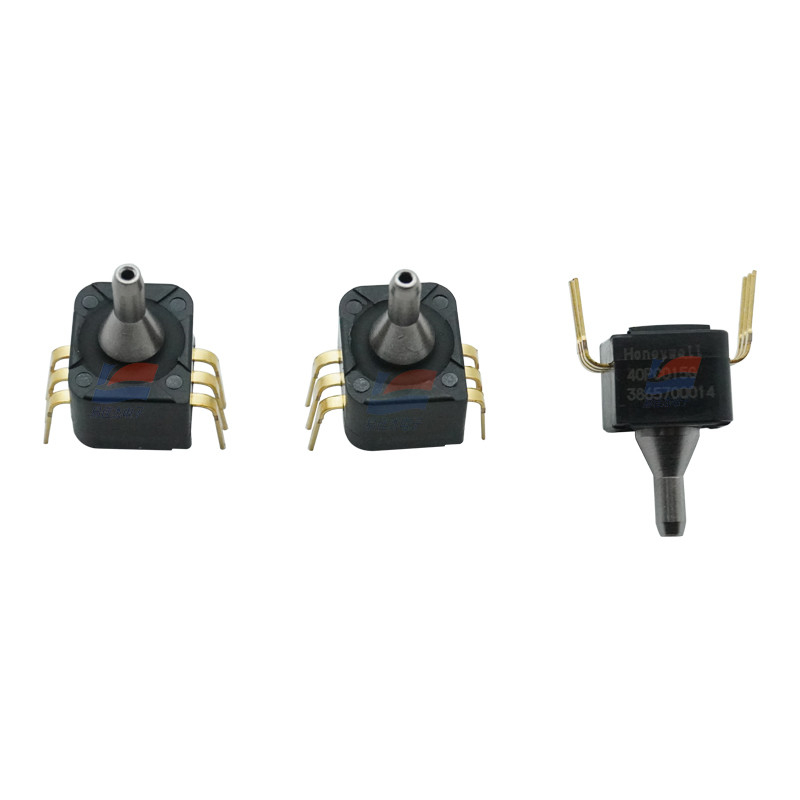

40PC015G2A 40PC Series Gauge Pressure Amplification Compensation Pressure Sensor
Features:
Features of the 40PC series pressure sensor.
Minimum volume, with an amplified sensor ranging from 0 to 15psi and 45 psi
● Full signal conditioning 0 to 100 psi 200psi
● Operating temperature: -45 to +125℃, 0 to 150psi, 300 psi
Silicon piezoresistive technology: 0 to 250 psi, 500 psi
● Single silicon wafer design: 0 to 500psi, 1000psi
● Hospital treatment bed ● Electronic braking system
● Ventilator ● Oil level detection
● Oxygen concentrator ● Liquefaction of transferred fluid
● Test equipment ● Air conditioning system
● Blood pressure measurement ● Fuel injection system
Typical applications of the 40PC series pressure sensors
● Hospital treatment bed
● Electronic braking system
● Ventilator
● Oil level detection
● Oxygen concentrator
● Fluid liquefaction for transmission
● Test equipment
● Air conditioning system
● Blood pressure measurement
● Fuel injection system
Pressure type: Gauge
Working pressure: 0 psi to 100 psi
Accuracy: 0.2%
Output type: Analog
Installation style: Through Hole
Port type: Single Axial Barbless
Package/Box: DIP-6
Minimum operating temperature: -45 ° C
Maximum operating temperature: + 125 ° C
Series: 40PC
Trademark: Honeywell
Working power supply current: 10 mA
Port size: 0.1 inches
Product type: Board Mount Pressure Sensors
50
Subcategory: Sensors
Power supply voltage - Maximum: 5 V
Unit weight: 9.681g
Specifications:
| Working pressure | 0 psi to 15 psi |
| Accuracy | 0.2% |
| Output type | Digital, Analog |
| Installation style | Through Hole |
