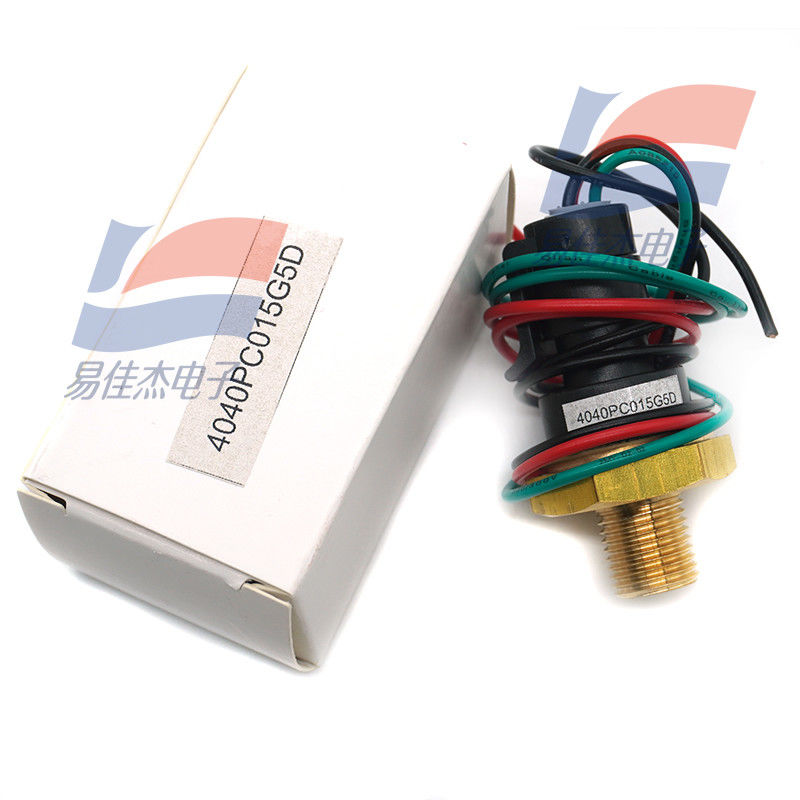

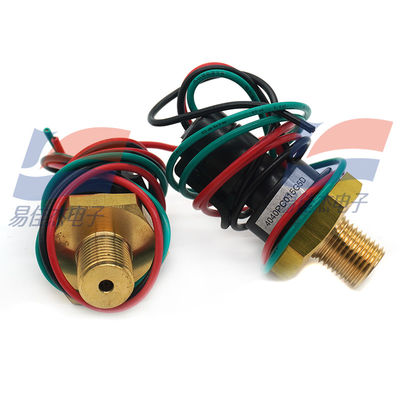

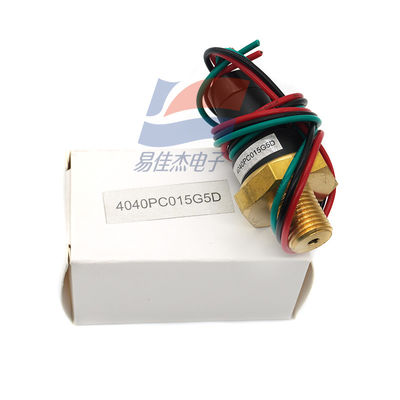

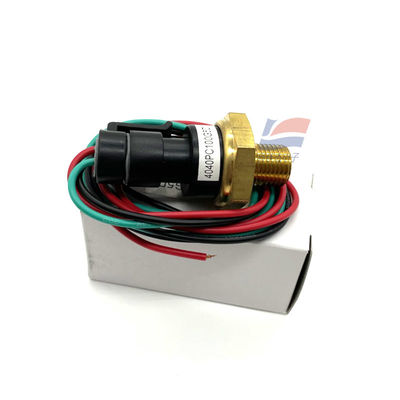

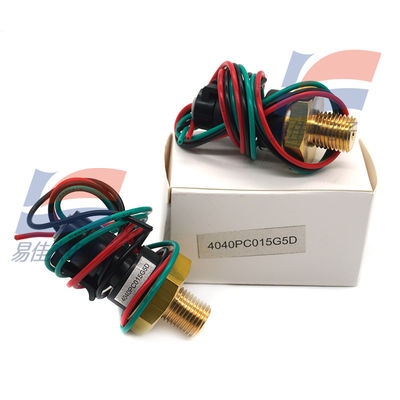

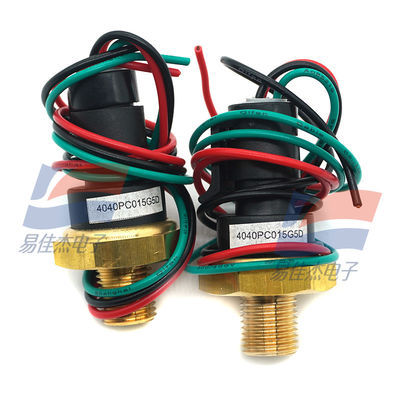

YJJ 4040PC015G5D Pressure Sensor With Temperature Compensation And Amplification Trigger Interface

Product Description:

4040PC015G5D Pressure Sensor With Temperature Compensation And Amplification Trigger Interface

Features:

Core of the latest economical 4040PC product is the minimum volume amplification pressure sensor launched by the HONEYWELL/MICO SWITCH division. With complete calibration and temperature compensation, it is the most robust sensor in Honeywell's pressure products and has the widest applicable temperature range. In addition, 40PC is compatible with a wide range of media, from dry air and water to coolant and engine oil. The 40PC offers an analog amplification model output. The sensor utilizes an original single-silicon wafer design, concentrating all the temperature compensation, output zero point, full-scale calibration, and amplification functions on a single silicon wafer. The sensor operates at a voltage of 5V, with an output variation range of 4V, from 0.5 to 4.5V, and the room temperature accuracy is 0.25%

Technical Specification:

● Power supply: 5VDC

● Pressure range: 0- 1PSI- 500PSI

Output signal: 0.5-4.5VDC

● Operating temperature: -45℃ to 125℃

● Temperature compensation: -40℃ to 85℃

● Pressure form: Gauge pressure (G)

● Pressure interface: G1/4 (Customized according to customer requirements)

● Product accuracy: 0.25%

Product Features:

The world's smallest volume amplification sensor

● Complete signal conditioning

The silicon piezoresistive technology is excellent

● Good medium compatibility

Note: The following models are supplied by our company on a long-term basis

4040PC001G5D, 4040PC015G5D, 4040PC100G5D, 4040PC150G5D, 4040PC250G5D.
