Product Details:
|
| Working Power Supply Voltage: | 5V | Package/Box: | DIP-8 |
|---|---|---|---|
| Minimum Operating Temperature: | -20 ° C | Maximum Operating Temperature: | + 105 ° C |
| Packaging: | Bulk | Bulk: | 2.31mm |
| Highlight: | 15psi Pressure Sensor,Board-computer Interface Pressure Sensor,2.31mm Pressure Sensor |
||
Product Description:

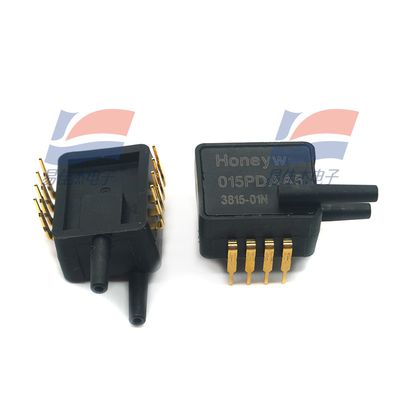

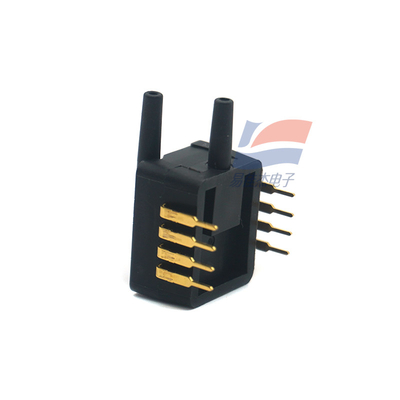

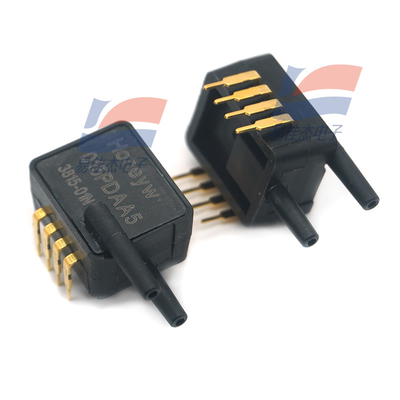

ASDXRRX015PDAA5 Board-computer Interface Pressure Sensor 15psi
Features:
ASDX series silicon pressure sensors
Low pressure and pressure analog output ±2% total error band, tilt, 10 inches H20 to 100 psi
Description
The ASDX series is a silicon pressure sensor that provides proportional analog output for reading pressure within the specified full-scale pressure range and temperature range.
ASDX has been fully calibrated and temperature-compensated for sensor offset, sensitivity, temperature effect and nonlinearity when used with automotive integrated circuits The calibrated output value of the pressure is updated at the following time: approximately 1 kilohertz.
The standard ASDX is calibrated within the temperature range of 0°C to 85°C[32°F to 185°F]. The feature of this sensor is that it is used for passing 3.3Vdc or 5.0V direct current.
These sensors can be used to measure differential and gauge pressure. The version has an internal vacuum reference and an output value proportional to the value. The pressure differential version allows pressure to be applied to both sides of the valve sensing diaphragm. The Gage version refers to atmospheric pressure and provides an output proportional to changes in atmospheric pressure.
The ASDX series sensors are suitable for non-corrosive and non-ionic working fluids, such as air and dry gas.
They are designed and manufactured in accordance with standards in ISO 9001.
Product type: Board computer interface pressure sensor
RoHS:
Pressure type: Differential
Working pressure: 15 psi
Accuracy: 2%
Output type: Analog
Installation style: Through Hole
Working power supply voltage: 5 V
Port type: Dual Radial Barbless
Package/Box: DIP-8
Minimum operating temperature: -20 ° C
Maximum operating temperature: + 105 ° C
Series: ASDX

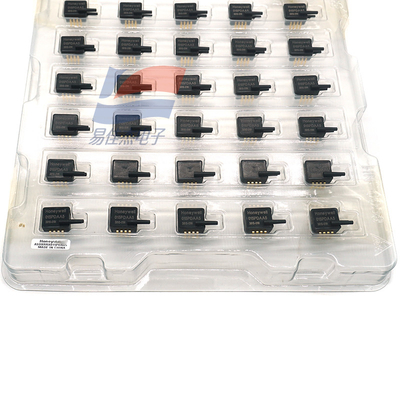

Packaging: Bulk
Trademark: Honeywell
Port size: 2.31mm
Product type: Board Mount Pressure Sensors
25
Subcategory: Sensors
Power supply voltage - Maximum: 6 V
Power supply voltage - minimum: 3 V
Unit weight: 6.280g
Specifications:
| Working pressure | 0 psi to 5 psi |
| Accuracy | 2% |
| Output type | Analog |
| Installation style | Through Hole |
