YJJ TBPDANS015PGUCV Trigger Interface Pressure Sensor For 0 Psi To 15 Psi Blood Pressure Detector

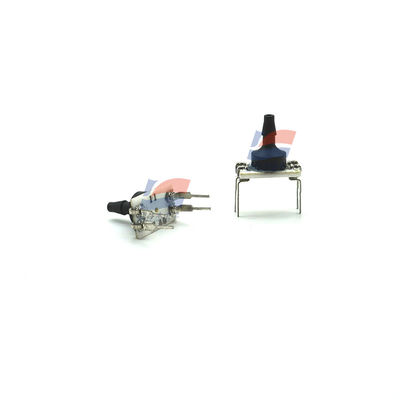

Large Image : YJJ TBPDANS015PGUCV Trigger Interface Pressure Sensor For 0 Psi To 15 Psi Blood Pressure Detector

Product Details:

Place of Origin:	USA
Brand Name:	HONEYWELL
Model Number:	TBPDANS015PGUCV

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Tube installation
Delivery Time:	5-8 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2200

Contact Now

YJJ TBPDANS015PGUCV Trigger Interface Pressure Sensor For 0 Psi To 15 Psi Blood Pressure Detector

Description

Working Power Supply Voltage:	5V	Port Type:	Single Axial Barbed
Package/Box:	DIP-4	Minimum Operating Temperature:	-40 ° C
Maximum Operating Temperature:	+ 125 ° C	Series:	TBP
Highlight:	0 Psi To 15 Psi Trigger Interface Pressure Sensor , TBPDANS015PGUCV Trigger Interface Pressure Sensor

Product Description:

TBPDANS015PGUCV Trigger Interface Pressure Sensor For 0 Psi To 15 Psi Blood Pressure Detector

Features:

Manufacturer: Honeywell

Product type: Board computer interface pressure sensor

RoHS:

Pressure type: Gauge

Working pressure: 0 psi to 15 psi

Accuracy: 0.15%

Output type: Analog

Installation style: Through Hole

Working power supply voltage: 5 V

Port type: Single Axial Barbed

Package/Box: DIP-4

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 125 ° C

Series: TBP

Packaging: Blister Pack

Trademark: Honeywell

Working power supply current: 600 uA

Product type: Board Mount Pressure Sensors

Subcategory: Sensors

Power supply voltage - Maximum: 12 V

Power supply voltage - minimum: 1.5V

Unit weight: 1.500 g

Specifications:

Working power	0 psi to 15psi
Accuracy	0.15%
Output type	Digital
Installation style	SMD/SMT

YJJ TBPDANS015PGUCV Trigger Interface Pressure Sensor For 0 Psi To 15 Psi Blood Pressure Detector 0
