Product Details:
|
| Output Signal: | 0.5- 4.5V (powered By 5V) | Accuracy: | ± 1.5% Span |
|---|---|---|---|
| Zero-point Temperature Drift: | ± 0.03% FS/℃ | Full-scale Temperature Drift: | ± 0.03% FS/℃ |
| Long-term Stability (1 Year): | ± 0.5% Span | Overvoltage Protection: | -14 To 20 V |
| Highlight: | 2.5MPa Pressure Gauge Sensor Transmitter,1MPa Pressure Gauge Sensor Transmitter,Remote Pressure Gauge Sensor Transmitter |
||
Product Description:

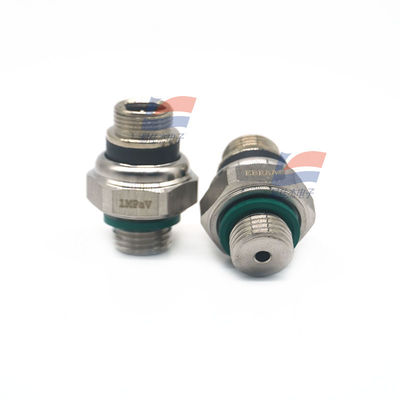

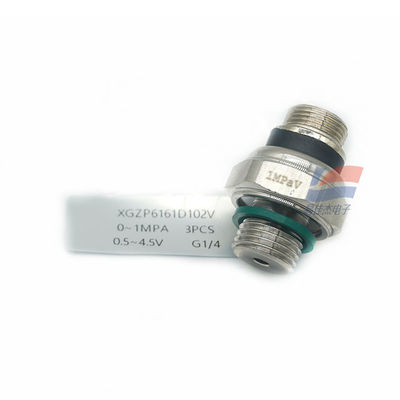

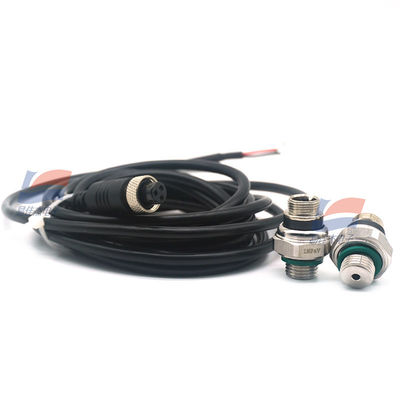

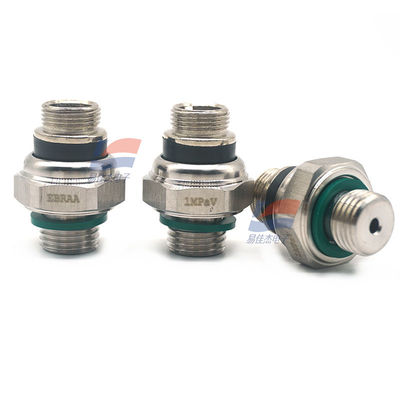

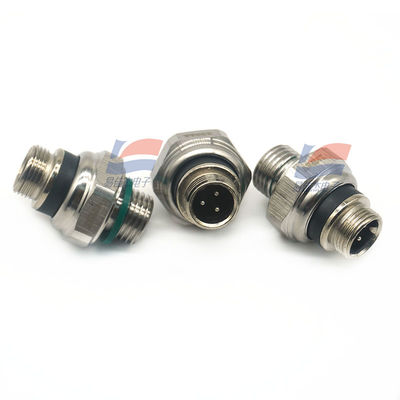

XGZP6161D Pressure Sensor Transmitter Remote Pressure Gauge Water Meter Pump Wireless Transmission Air Pressure Internet Pf Things 1MPa 2.5MPa
Features:
Product Features
· Measurement range: 0-1MPa... 2.5 MPa
· Ceramic flat membrane structure
Compact structure and high reliability
Advanced anti-interference and insulation properties
· Resistant to impact, overload and vibration
· Waterproof hammer and leak-proof
Application field
"Building Automation"
Variable frequency constant pressure water supply and compressor
Energy and water treatment systems
Overview
The XGZP6161D voltage-type pressure transmitter is a cost-effective pressure transmitter launched by our company, featuring a flat membrane structure sensor core
The body and the specially customized amplification circuit, after linear correction and temperature compensation, can meet the pressure measurement and control requirements under various environmental conditions.
It is mass-produced by an automatic production line, and all parameters are strictly controlled. The entire product has undergone strict testing and aging of components, semi-finished products and finished products
Screening: Good product consistency, strong anti-interference and overload resistance, and high stability.
The XGZP6161D voltage-type pressure transmitter features a variety of output forms and pressure interfaces. OEM customization services can maximize the potential
It meets the application requirements of customers and can be widely applied in variable frequency constant pressure water supply, compressors, building automation, HVAC control, process control, water pumps,
Intelligent water supply integrated machine, multi-pump intelligent water supply, refrigeration, pneumatic and hydraulic control, etc.
Performance index
Power supply: (5±0.25) V DC
Reference temperature: 25℃
Specifications:
| Measurement range | 0-1MPa... 2.5 MPa |
| Packaging form | SMD/DIP |
| Operating temperature | 0℃ to 40℃ |
| Operating temperature range | -30℃ to +100℃ |
