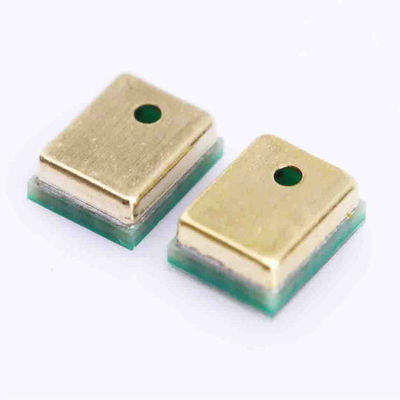

YJJ XGZP130 40kPa Gauge Pressure Gas Pressure Sensor Is Used For Wearing Wristbands Of Electronic Blood Pressure Monitors

Product Description:

XGZP130 40kPa Gauge Pressure Gas Pressure Sensor Is Used For Wearing Wristbands Of Electronic Blood Pressure Monitors

Features:

Measurement range: -40-40Kpa

MEMS technology

Absolute pressure form

COB packaging, small size

It is applicable to non-corrosive gases

Operating temperature range: -30℃ to +125℃

Mass production (100K per day)

"Application field"

Altimeter, atmospheric pressure

Tire pressure gauge, intake pressure measurement

Air pump, air filling pump

Pressure gauges and instruments

Product Overview

The XGZP130 pressure sensor is applicable to fields such as consumer electronics and automotive electronics. Its core component is a device processed using MEMS technology

The silicon piezoresistive pressure-sensitive chip. This pressure-sensitive chip consists of an elastic membrane and four resistors integrated on the membrane, namely four pressure-sensitive resistors

The Wheatstone bridge structure was formed. When pressure was applied to the elastic membrane, the bridge would generate a voltage that was linearly proportional to the applied pressure

Output signal.

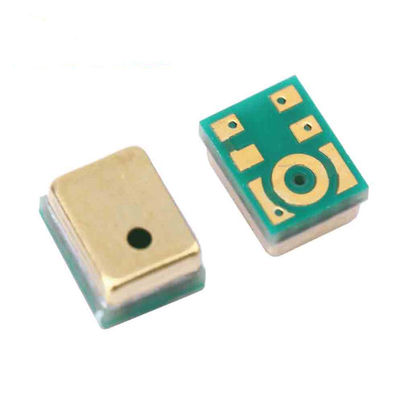

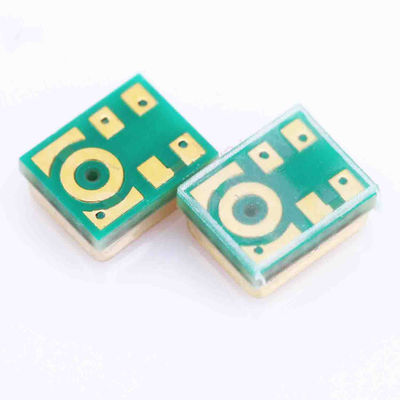

The XGZP130 pressure sensor is packaged with a PCB board as the base material, featuring a compact structure that is convenient for users to install by surface mount

Install. It features excellent linearity, repeatability and stability, high sensitivity, and is convenient for users to debug the output and temperature drift using operational amplifiers or integrated circuits

And compensation.

Specifications:
