Product Details:
|
| Working Force: | 100kPa | Output Voltage: | MV Output |
|---|---|---|---|
| Output Type: | Voltage | Termination Type: | PCB |
| Power Supply Voltage: | 5V | Accuracy: | ±1.0%Span |
| Highlight: | 2000kPa Pressure Sensor,100kPa Pressure Sensor,Atmospheric Pressure Pressure Sensor |
||
Product Description:
XGZP131 0kPa To 100kPa... A 2000kPa Pressure Sensor Is Used For The Atmospheric Pressure Of The Altimeter
Features:
Measurement range: 0kPa～100kPa…2000kPa
MEMS technology
Absolute pressure form
COB packaging, small size
It is applicable to non-corrosive gases
Operating temperature range: -30℃ to +125℃
Mass production (100K per day)
"Application field"
Altimeter, atmospheric pressure
Tire pressure gauge, intake pressure measurement
Air pump, air filling pump
Pressure gauges and instruments
Product Overview
The XGZP131 pressure sensor is applicable to fields such as consumer electronics and automotive electronics. Its core component is a device processed using MEMS technology
The silicon piezoresistive pressure-sensitive chip. This pressure-sensitive chip consists of an elastic membrane and four resistors integrated on the membrane, namely four pressure-sensitive resistors
The Wheatstone bridge structure was formed. When pressure was applied to the elastic membrane, the bridge would generate a voltage that was linearly proportional to the applied pressure
Output signal.

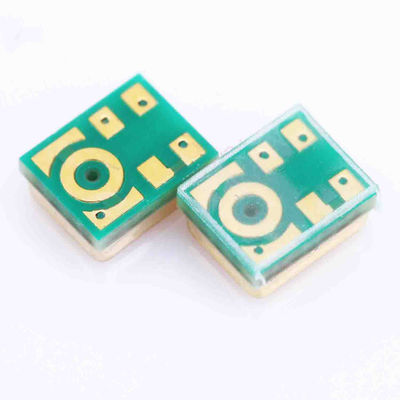

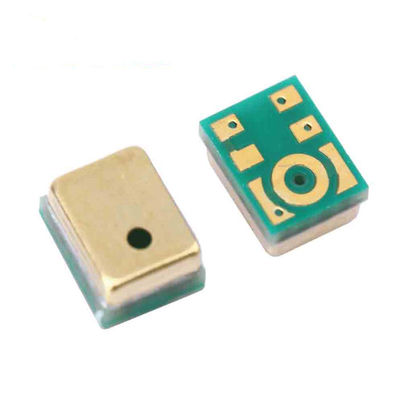

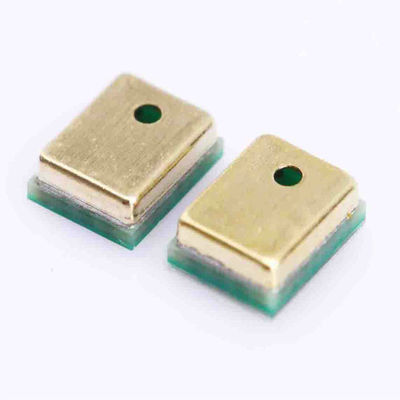

The XGZP131 pressure sensor is packaged with a PCB board as the base material, featuring a compact structure that is convenient for users to install by surface mount
Install. It features excellent linearity, repeatability and stability, high sensitivity, and is convenient for users to debug the output and temperature drift using operational amplifiers or integrated circuits
And compensation.
Specifications:
| Measurement range | 0kPa～100kPa…2000kPa |
| Packaging form | SMD/DIP |
| Operating temperature | 0℃ to 40℃ |
| Operating temperature range | -30℃ to +100℃ |
