YJJ XGZP151 40kPa Gauge Pressure Barometric Sensor Is Waterproof And Suitable For Electronic Blood Pressure Monitors Massagers And Pillows

Product Description:

XGZP151 40kPa Gauge Pressure Barometric Sensor Is Waterproof And Suitable For Electronic Blood Pressure Monitors Massagers And Pillows

Features:

Measurement range: -100 kpa to 0kPa... 200kPa

MEMS technology

Gauge pressure form

PCB packaging form

It is suitable for dry and non-corrosive gases

Operating temperature range :-30℃ to +100℃

The chip is under pressure on the front.

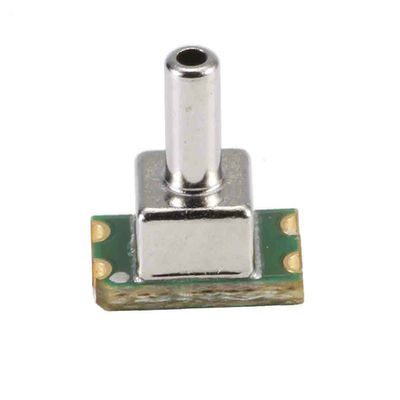

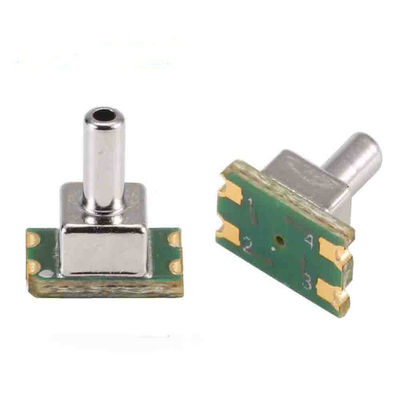

The diameter of the air nozzle is optional (3mm or 2.17mm).

Electrical performance

Power supply :≤15VDC or ≤3.0mADC

Input impedance :4kQ to 6kQ

Output impedance :4kQ to 6kQ

Insulation resistance :100 m · 100VDC

Allowable overload: Allowable overload :3 times full scale (pressure range ≤40kPa)

2 times full scale (40kPa< pressure range ≤200 kpa)

XGZP151 pressure sensor is applicable to fields such as consumer electronics and automotive electronics. Its core component is a device processed using MEMS technology

The silicon piezoresistive pressure-sensitive chip. This pressure-sensitive chip consists of an elastic membrane and four resistors integrated on the membrane, namely four pressure-sensitive resistors

The Wheatstone bridge structure was formed. When pressure was applied to the elastic membrane, the bridge would generate a voltage that was linearly proportional to the applied pressure

Output signal.

XGZP151 pressure sensor is packaged with a PCB board as the base material, featuring a compact structure that is convenient for users to install by surface mount

Install. It features excellent linearity, repeatability and stability, high sensitivity, and is convenient for users to debug the output and temperature drift using operational amplifiers or integrated circuits

And compensation.

Specifications:
