Product Details:
|
| Operating Temperature Range: | -30℃ To +100℃ | Power Supply: | ≤10V DC Or ≤3.0mA DC |
|---|---|---|---|
| Input Impedance: | 4kΩ To 6kΩ | Output Impedance: | 4kΩ To 6kΩ |
| Insulation Resistance: | 100MΩ,100VDC | Blasting Pressure: | ≥3 Times The Full Scale |
| Highlight: | Gas Vital Capacity Pressure Sensor,Oxygen Generator Pressure Sensor,Air Wave Massage Device Pressure Sensor |
||
Product Description:

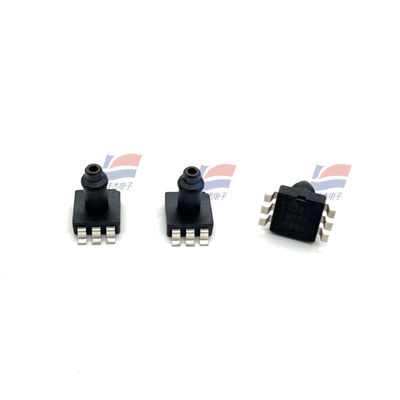

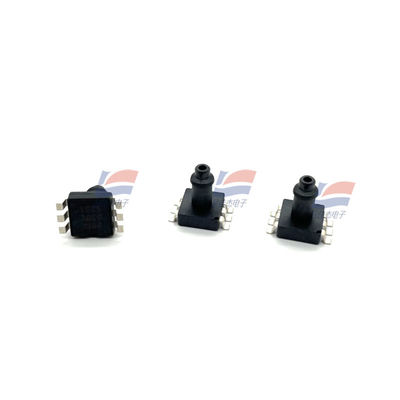

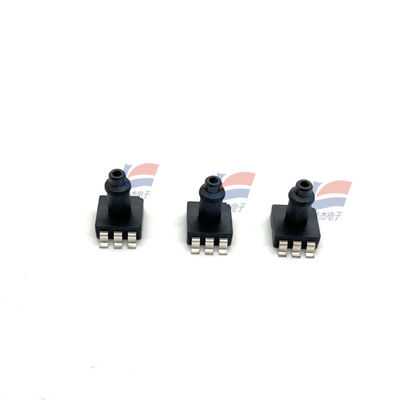

XGZP163 Pressure Sensor Gas Vital Capacity Sphygmomanometer Air Wave Massage Device Oxygen Generator
Features:
Measurement range: -100 kpa to 0kPa... 700kPa
MEMS technology
Gauge pressure form
SOP encapsulation form
It is applicable to non-corrosive gases
Operating temperature range: -30℃ to +100℃
The back pressure chamber of the chip is under pressure
The direction of the pins can be selected
"Application field"
Medical fields such as electronic blood pressure monitors, ventilators, oxygen generators and monitors
Automotive electronics fields such as tire pressure gauges, MAP, power steering, and brake assistance
The field of sports and fitness equipment such as massagers, massage chairs and air mattresses
Vacuum packaging machines, vacuum mixers, vacuum blenders, vacuum preservation boxes, vacuum pumps and other vacuum negative pressure fields
Washing machines, beer machines, coffee machines, vacuum cleaners, water purifiers, pressure gauges, pneumatic components and other fields
Product Overview
The XGZP163 type piezoresistive pressure sensitive element is a pressure sensor suitable for fields such as biomedicine and automotive electronics. Its core part
It is a silicon piezoresistive pressure-sensitive chip processed by MEMS technology. The pressure-sensitive chip consists of an elastic membrane and integrated on the membrane
It is composed of four resistors. The four varistors form the Wheatstone bridge structure. When pressure is applied to the elastic membrane, the bridge will generate a contact point
A voltage output signal with a linear proportional relationship of applied pressure.
The XGZP163 pressure-sensitive component is an OEM component packaged in the standard SOP6 form, which is convenient for users to install by surface mount
It features excellent linearity, repeatability and stability, high sensitivity, and is convenient for users to debug and compensate for output and temperature drift.
"Structural performance"
Pressure-sensitive chip: Silicon material
Lead wire: Gold wire
Specifications:
| Measurement range | -100 kpa to 0kPa... 700kPa |
| Packaging form | SMD/DIP |
| Operating temperature | 0℃ to 40℃ |
| Operating temperature range | -30℃ to +100℃ |
