Product Details:
|
| Power Supply: | ≤15VDC Or ≤3.0mA DC | Input Impedance: | 4kQ To 6kQ |
|---|---|---|---|
| Output Impedance: | 4kQ To 6kQ | Insulation Resistance: | 100 M · 100VDC |
| Allowable Overload: | Pressure Range ≤40kPa | Application Field: | Measuring Instrument |
| Highlight: | 10kPa Gas Pressure Sensor,3mm Gas Pressure Sensor,POCT Blood Immunoquantitative Analyzer Pressure Sensor |
||
Product Description:

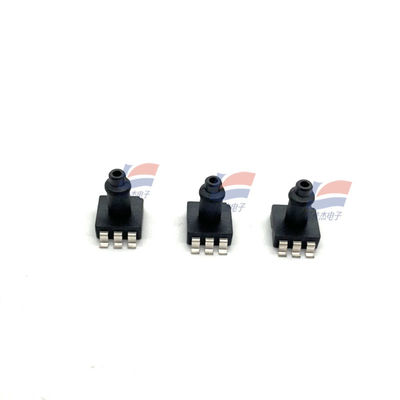

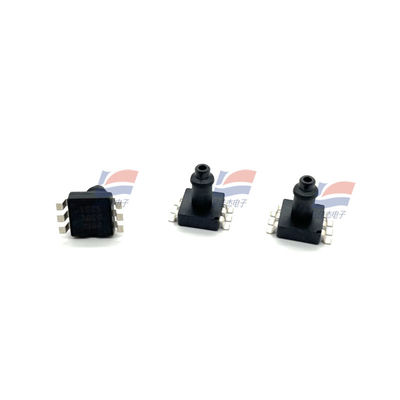

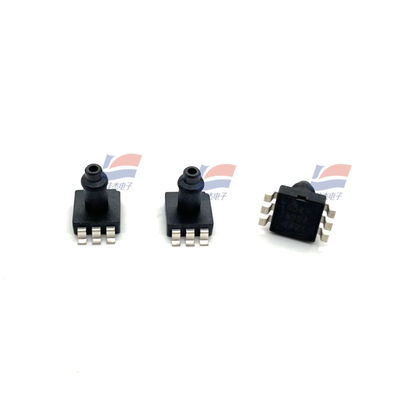

XGZP166 Short intake Pipe 3mm Gas Pressure Sensor POCT Blood Immunoquantitative Analyzer 10kPa
Features:
Measurement range: -100 kpa to 0kPa... 350kPa
MEMS technology
Gauge pressure form
SOP package form, 3MM short air nozzle
Suitable for non-corrosive gases
Operating temperature range :-30℃ to +100℃
The back pressure chamber of the chip is under pressure
The direction of the pins can be selected
Electrical performance
Power supply :≤15VDC or ≤3.0mA DC
Input impedance :4kQ to 6kQ
Output impedance :4kQ to 6kQ
Insulation resistance :100 m · 100VDC
Allowable overload: Allowable overload :3 times full scale (pressure range ≤40kPa)
2 times full scale (40kPa< pressure range ≤200 kpa)
1.5 times full scale (200kPa< pressure range ≤350kPa)
A voltage output signal with a linear proportional relationship of applied pressure.
The XGZP166 pressure-sensitive component is an OEM component packaged in the standard SOP8 form, which is convenient for users to adopt surface mount
The surface air nozzle is designed with a hook, which is suitable for the lateral air intake pressure structure and effectively prevents the air nozzle from falling off.
It features excellent linearity, repeatability and stability, high sensitivity, and is convenient for users to debug and compensate for output and temperature drift.
Structural performance
Pressure-sensitive chip: Silicon material
Lead wire: Gold wire
Encapsulation shell: PPS material
Pin: Copper plated with silver
Net weight: Approximately 0.4 grams
"Electrical performance"
Power supply: ≤15V DC or ≤3.0mA DC
Input impedance: 4kΩ to 6kΩ
Output impedance: 4kΩ to 6kΩ
Insulation resistance: 100MΩ,100VDC
Permissible overload: 3 times the maximum static pressure (maximum static pressure ≤40kPa)
1.5 times the maximum static pressure (40kPa< maximum static pressure ≤350kPa)
conditions"
Measuring medium: Air
Medium temperature: (25±1) ℃
Ambient temperature: (25±1) ℃
Vibration: 0.1g(1m/s ²)Max
Humidity: (50%±10%) RH
Power supply: (5±0.005) V DC
It is only used as the benchmark test condition for the following basic parameters
Specifications:
| Measurement range | -100 kpa to 0kPa... 350kPa |
| Packaging form | SMD/DIP |
| Operating temperature | 0℃ to 40℃ |
| Operating temperature range | -30℃ to +100℃ |
