Product Details:
|
| Operating Temperature Range: | -30℃ To +100℃ | Power Supply: | ≤15VDC Or ≤3.0mA DC |
|---|---|---|---|
| Input Impedance: | 4kQ To 6kQ | Output Impedance: | 4kQ To 6kQ |
| Insulation Resistance: | 100MQ,100VDC | Allowable Overload: | Pressure Range ≤40kPa |
| Highlight: | Massage Pillow Reverse Patch,40kPa Reverse Patch Small In Size,Portable Blood Pressure Monitor Reverse Patch |
||
Product Description:

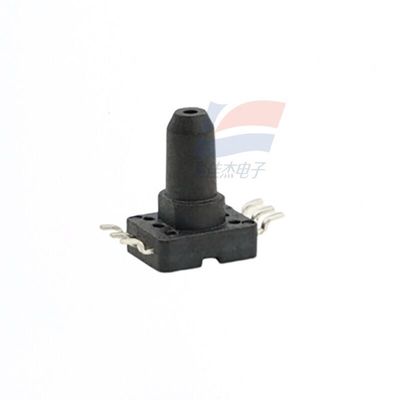

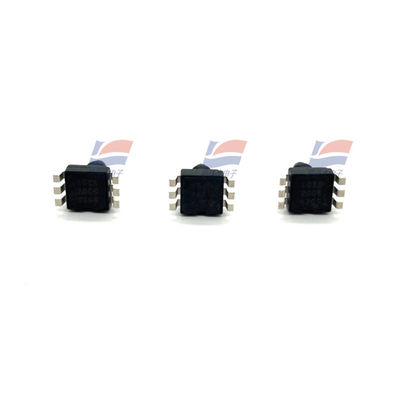

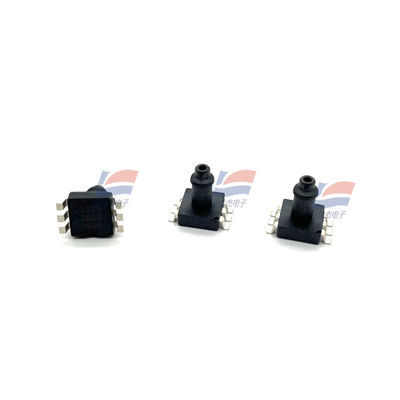

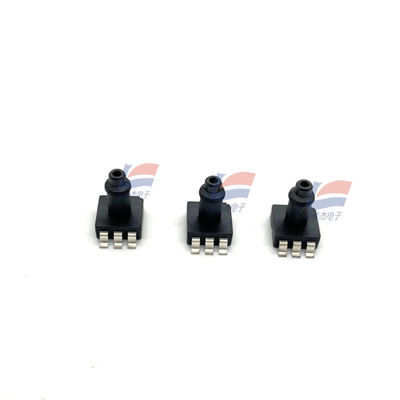

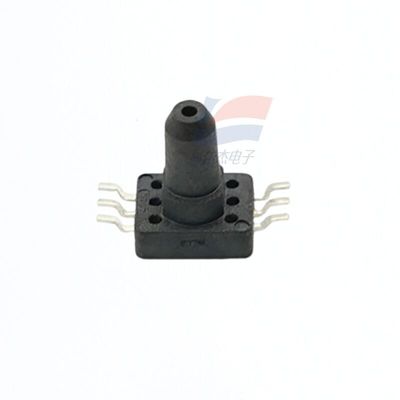

XGZP167 Reverse Patch Small In Size Is Suitable For Portable Blood Pressure Monitor And Massage Pillow With A Pressure Of 40kPa
Features:
Measurement range: -100 kpa to 0kPa... 200kPa
MEMS technology
Gauge pressure form
SOP packaging form
Suitable for non-corrosive gases
Operating temperature range :-30℃ to +100℃
The back pressure chamber of the chip is under pressure
Ultra-small size
Electrical performance
Power supply :≤15VDC or ≤3.0mA DC
Input impedance :4kQ to 6kQ
Output impedance :4kQ to 6kQ
Insulation resistance :100MQ,100VDC
Allowable overload :3 times full scale (pressure range ≤40kPa)
2 times full scale (40kPa< pressure range ≤200 kpa)
A voltage output signal with a linear proportional relationship of applied pressure.
The XGZP166 pressure-sensitive component is an OEM component packaged in the standard SOP8 form, which is convenient for users to adopt surface mount
The surface air nozzle is designed with a hook, which is suitable for the lateral air intake pressure structure and effectively prevents the air nozzle from falling off.
It features excellent linearity, repeatability and stability, high sensitivity, and is convenient for users to debug and compensate for output and temperature drift.
Structural performance
Pressure-sensitive chip: Silicon material
Lead wire: Gold wire
Encapsulation shell: PPS material
Pin: Copper plated with silver
Net weight: Approximately 0.4 grams
"Electrical performance"
Power supply: ≤15V DC or ≤3.0mA DC
Input impedance: 4kΩ to 6kΩ
Output impedance: 4kΩ to 6kΩ
Insulation resistance: 100MΩ,100VDC
Permissible overload: 3 times the maximum static pressure (maximum static pressure ≤40kPa)
1.5 times the maximum static pressure (40kPa< maximum static pressure ≤350kPa)
conditions"
Measuring medium: Air
Medium temperature: (25±1) ℃
Ambient temperature: (25±1) ℃
Vibration: 0.1g(1m/s ²)Max
Humidity: (50%±10%) RH
Power supply: (5±0.005) V DC
It is only used as the benchmark test condition for the following basic parameters
Specifications:
| Measurement range | -100 kpa to 0kPa... 200kPa |
| Packaging form | SMD/DIP |
| Operating temperature | 0℃ to 40℃ |
| Operating temperature range | -30℃ to +100℃ |
