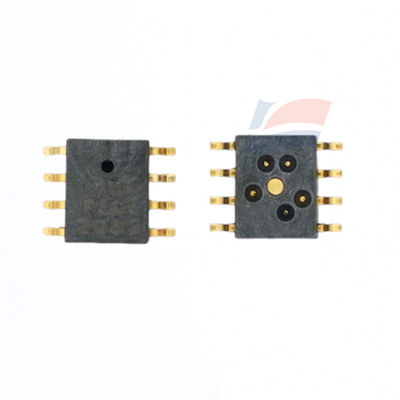

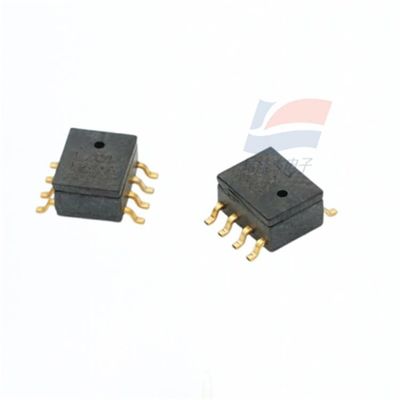

YJJ XGZP170 Piezoresistive Pressure Sensor Is Used for Waterproof and Highly Stable Water Pressure in Tap Water

Product Description:

XGZP170 Piezoresistive Pressure Sensor Is Used for Waterproof and Highly Stable Water Pressure in Tap Water

Features:

Measurement range: -100 kpa to 0kPa... 1000kPa

MEMS technology

Gauge pressure form

SOP or DIP packaging form

Suitable for non-corrosive gases

Operating temperature range :-30℃ to +100℃

The back pressure chamber of the chip is under pressure

The direction of the pins can be selected

Electrical performance

Power supply :≤15VDC or ≤3.0mA DC

Input impedance :4kQ to 6kQ

Output impedance :4k2 to 6kQ

Insulation resistance :100MQ,100VDC

Allowable overload: Allowable overload :3 times full scale (pressure range ≤40kPa)

2 times full scale (40kPa< pressure range ≤200 kpa)

1.5 times full scale (200kPa< pressure range ≤1000kPa)

Pressure-sensitive chip: Silicon material

Lead wire: Gold wire

Encapsulation shell: PPS material

Pin: Copper plated with silver

Net weight: Approximately 0.4 grams

"Electrical performance"

Power supply: ≤15V DC or ≤3.0mA DC

Input impedance: 4kΩ to 6kΩ

Output impedance: 4kΩ to 6kΩ

Insulation resistance: 100MΩ,100VDC

Permissible overload: 3 times the maximum static pressure (maximum static pressure ≤40kPa)

1.5 times the maximum static pressure (40kPa< maximum static pressure ≤350kPa)

conditions"

Measuring medium: Air

Medium temperature: (25±1) ℃

Ambient temperature: (25±1) ℃

Vibration: 0.1g(1m/s ²)Max

Humidity: (50%±10%) RH

Power supply: (5±0.005) V DC

It is only used as the benchmark test condition for the following basic parameters

Specifications:
