Product Details:
|
| Power Supply: | ≤15VDC Or ≤3.0mADC | Input Impedance: | 4kQ To 6k2 |
|---|---|---|---|
| Output Impedance: | 4kQ To 6kQ | Insulation Resistance: | 100 M · 100VDC |
| Allowable Overload: | 15 Times Full Scale | Operating Temperature Range: | -30℃ To +100℃ |
| Highlight: | 100 Psi Pressure Sensor,YJJ XGZP182 Pressure Sensor,700 Kpa Pressure Sensor |
||
Product Description:

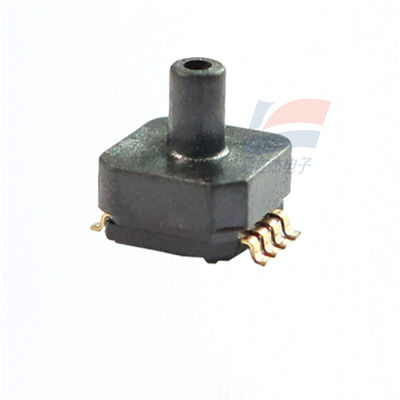

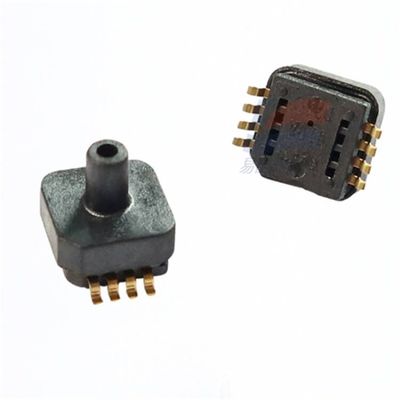

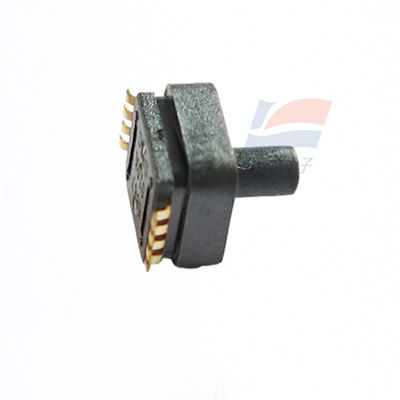

XGZP182 Pressure Sensor Has an Absolute Pressure Range Of 700 Kpa To 100 Psi
Features:
XGZP182 piezoresistive pressure-sensitive element is a pressure sensor suitable for fields such as biomedicine and automotive electronics. Its core component is a silicon piezoresistive pressure-sensitive chip processed by MEMS technology. This pressure-sensitive chip consists of an elastic membrane and four resistors integrated on the membrane. The four pressure-sensitive resistors form a Wheatstone bridge structure. When pressure acts on the elastic membrane, the bridge will generate a voltage output signal that is linearly proportional to the applied pressure.
The XGZP182 pressure-sensitive component is an OEM component packaged in the standard SOP6 form, which is convenient for users to use surface mount. The chip surface is coated with soft silicone, which can effectively prevent moisture and oil vapor.
It features excellent linearity, repeatability and stability, high sensitivity, and is convenient for users to debug and compensate for output and temperature drift.
Structural performance
Pressure-sensitive chip: Silicon material
Lead wire: Gold wire
Packaging shell :PPS material
Pins: Gold-plated
Protective adhesive: fluorine-containing silicone rubber
Electrical performance
Power supply :≤15VDC or ≤3.0mADC
Input impedance :4kQ to 6k2
Output impedance :4kQ to 6kQ
Insulation resistance :100 m · 100VDC
Allowable overload :15 times full scale
Product Features
Measurement range: 0kPa to 100kPa... 700kPa
MEMS technology
Absolute pressure form
SOP packaging form, glue filling treatment
It is suitable for non-corrosive and non-conductive gases or liquids
Operating temperature range :-30℃ to +100℃
The back pressure chamber of the chip is under pressure
Application field
In the field of small household appliances such as rice cookers, soy milk machines, water purifiers and coffee machines, there are tire pressure gauges, brake boosters, power steering boosters and MAP sensors. In the field of automotive electronics, there are massagers, air mattresses, animal blood pressure sensors and gastrointestinal sensors. In the field of medical and fitness equipment
Instruments, meters and other absolute pressure systems
Specifications:
| Measurement range | 0kPa to 100kPa... 700kPa |
| Packaging form | SMD/DIP |
| Operating temperature | 0℃ to 40℃ |
| Operating temperature range | -30℃ to +100℃ |
