Product Details:
|
| Power Supply: | ≤15VDC Or ≤3.0mA DC | Input Impedance: | 4kQ To 6k2 |
|---|---|---|---|
| Output Impedance: | 4kQ To 6kΩ | Insulation Resistance: | 100 M ²,100VDC |
| Allowable Overload: | 3 Times Full Scale | Operating Temperature Range: | -30℃ To +100℃ |
| Highlight: | 6kΩ Output Impedance Pressure Sensor,3x Overload Capacity Pressure Sensor,Non-corrosive Gases Pressure Sensor |
||
Product Description:

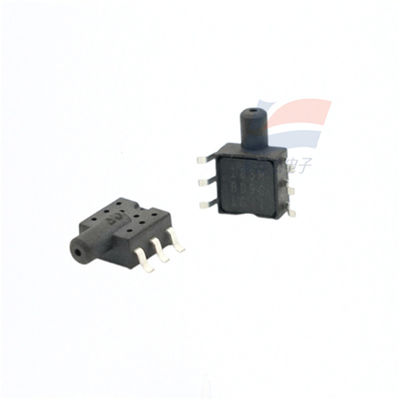

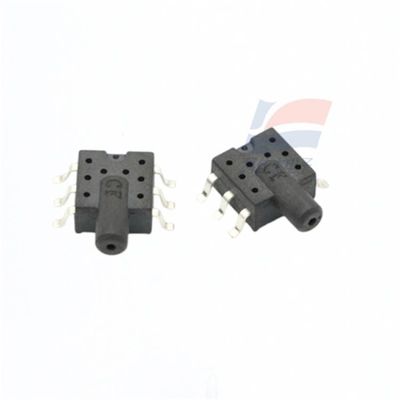

XGZP185 Pressure Sensor Is Suitable For Non-corrosive Gases With An Selectable Range
Features:
XGZP185 piezoresistive pressure-sensitive element is a pressure sensor suitable for fields such as biomedicine and automotive electronics. Its core component is a silicon piezoresistive pressure-sensitive chip processed by MEMS technology. This pressure-sensitive chip consists of an elastic membrane and four resistors integrated on the membrane. The four pressure-sensitive resistors form a Wheatstone bridge structure. When pressure acts on the elastic membrane, the bridge will generate a voltage output signal that is linearly proportional to the applied pressure.
The XGZP183 pressure-sensitive component is an OEM component packaged in the standard SOP6 form, which is convenient for users to use surface mount. The chip surface is coated with soft silicone, which can effectively prevent moisture and oil vapor.
It features excellent linearity, repeatability and stability, high sensitivity, and is convenient for users to debug and compensate for output and temperature drift.
Structural performance
Pressure-sensitive chip: Silicon material
Lead wire: Gold wire
Packaging shell :PPS material
Pins: Gold-plated
Protective adhesive: fluorine-containing silicone rubber
Electrical performance
Power supply :≤15VDC or ≤3.0mADC
Input impedance :4kQ to 6k2
Output impedance :4kQ to 6kQ
Insulation resistance :100 m · 100VDC
Allowable overload :15 times full scale
Measurement range: -100 kpa to 0kPa... 1000kPa
MEMS technology
Gauge pressure form
SOP packaging form
Suitable for non-corrosive gases
Operating temperature range :-30℃ to +100℃
The back pressure chamber of the chip is under pressure
The direction of the pins can be selected
Electrical performance
Power supply :≤15VDC or ≤3.0mA DC
Input impedance :4kQ to 6k2
Output impedance :4kQ to 6kΩ
Insulation resistance :100 m ²,100VDC
Allowable overload :3 times full scale (pressure range ≤40kPa)2 times full scale (40kPa< pressure range ≤200 kpa)
1.5 times full scale (200kPa< pressure range ≤1000kPa)
Specifications:
| Measurement range | -100 kpa to 0kPa... 1000kPa |
| Packaging form | SMD/DIP |
| Operating temperature | 0℃ to 40℃ |
| Operating temperature range | -30℃ to +100℃ |
