YJJ XGZP195 Pressure Sensor With A Pressure Range Of 0 To 10/50/100/200 Kpa Is Suitable For Sports And Fitness Equipment

Product Description:

XGZP195 Pressure Sensor With A Pressure Range Of 0 To 10/50/100/200 Kpa Is Suitable For Sports And Fitness Equipment

Features:

The measurement range is 0 to 10/50/100/200 kpa

MEMS technology

Gauge pressure type

Laser drag trimming and calibration of analog output signals

Good substitutability, plug and play

Various pressure ranges and outputs can be customized

"Application field"

Hemostatic devices, ventilators, oxygen generators, monitors and other medical fields

The field of sports and fitness equipment such as massagers, massage chairs and air mattresses

The Internet of Things fields such as smart fire protection and smart home

Pressure gauges, pneumatic components and other industrial control fields

Product Overview

The XGZP195 pressure sensor is applicable to fields such as biomedicine, industrial control, and the Internet of Things. Its core component is a device that utilizes MEMS technology

Processed silicon piezoresistive pressure-sensitive chips. This pressure-sensitive chip consists of an elastic membrane and four resistors integrated on the membrane, all of which are pressure-sensitive

The resistance forms the Wheatstone bridge structure. When pressure acts on the elastic membrane, the bridge will generate a structure that is linearly proportional to the applied pressure

Voltage output signal. The built-in circuit calibrates and compensates for parameters such as the zero-point output, full-scale output, and temperature drift of the sensor, generating a

High-precision standard voltage output signal with reference to the supply voltage.

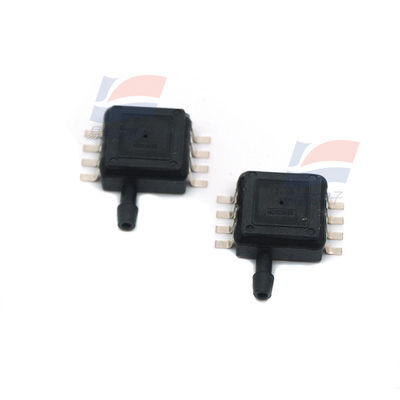

The XGZP195 pressure sensor is packaged in SOP form, with pins surface-mounted on a PCB board, making it convenient for users to install.

The measurement medium of the XGZP195 pressure sensor is limited to non-corrosive gases such as air. For pressure media other than non-corrosive gases,

Please feel free to inquire.

"Structural performance"

Pressure-sensitive chip: Silicon material

Lead wire: Gold wire

Shell material: PPS material,FR4

Allowable overload: 2 times the full scale

Measuring medium: Air

Medium temperature: (25±1) ℃

Ambient temperature: (25±1) ℃

Vibration: 0.1g(1m/s ²)Max

Humidity: (50%±10%) RH

Electric source: (10±0.005) VDC
