MS5837-30BA Board Mount Pressure Sensor Digital Pressure and Altimeter Sensor Modules

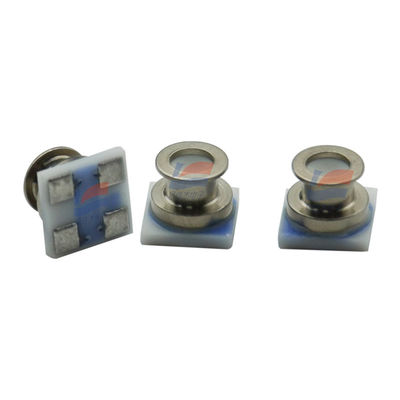

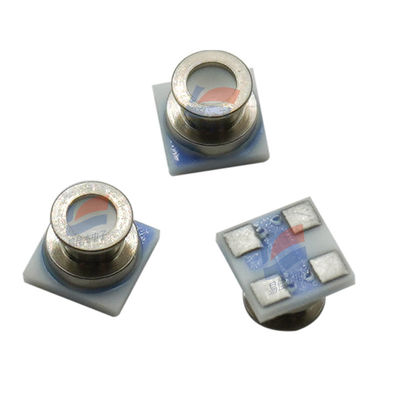

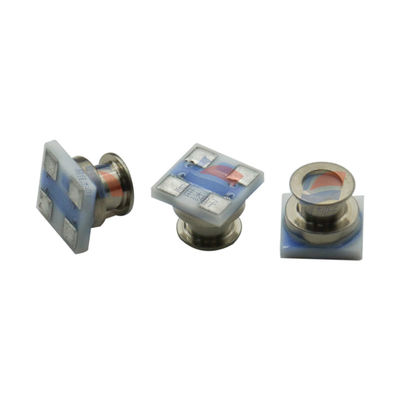

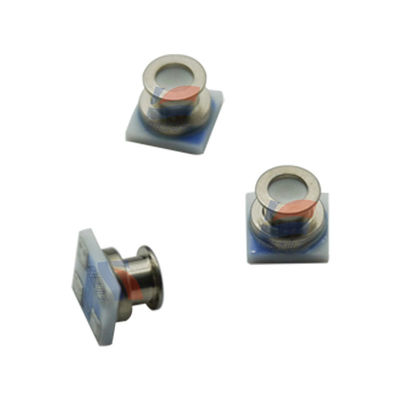

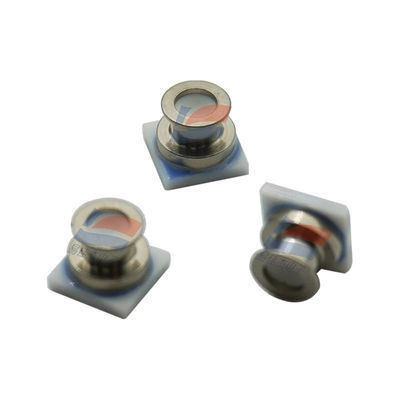

Large Image : MS5837-30BA Board Mount Pressure Sensor Digital Pressure and Altimeter Sensor Modules

Product Details:

Place of Origin:	USA
Brand Name:	TE
Model Number:	MS5837-30BA

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000/pcs/month

Contact Now

MS5837-30BA Board Mount Pressure Sensor Digital Pressure and Altimeter Sensor Modules

Description

Pressure Type:

Absolute

Proof Pressure Range:

50 Bar

Output Signal Type:

24 Bit ADC

Pressure Accuracy:

±1.5mbar

Highlight:

Board Mount Altimeter Sensor Module

MS5837-30BA Altimeter Sensor Module

Digital Pressure Altimeter Sensor Module

MS5837-30BA Board Mount Pressure Sensor Digital Pressure and Altimeter Sensor Modules

Digital Pressure and Altimeter Sensor Modules, Absolute, 24 bit ADC, ±1.5mbar
Pressure Accuracy, 1.5 – 3.6 V Supply Voltage Range

Supply Voltage Range	1.5 – 3.6 V
Product Width	3.3 mm[.13 in]
Product Length	3.3 mm[.129 in]
Product Height	2.75 mm[.108 in]
Operating Temperature Range	-20 – 85 °C[-4 – 185 °F]
Output Interface	I2C
Resolution	2
Proof Pressure Range	50 bar
Output Signal Type	24 bit ADC
Pressure Accuracy	±1.5mbar

MS5837-30BA Board Mount Pressure Sensor Digital Pressure and Altimeter Sensor Modules 0
