26PCCFA6D Board Mount Pressure Sensors Miniature Low with 0.4% Accuracy

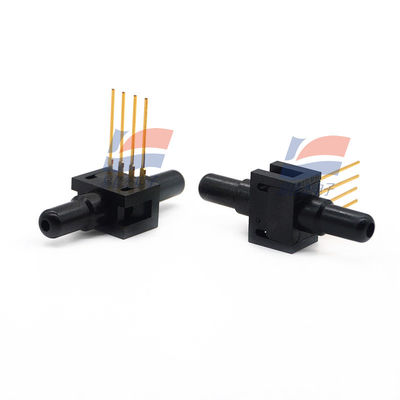

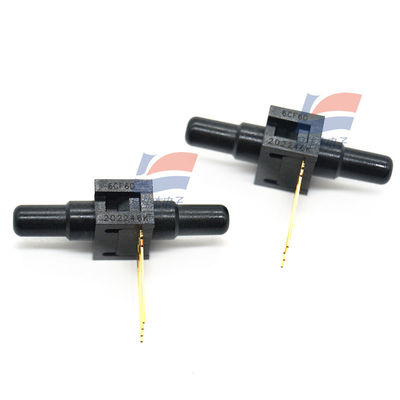

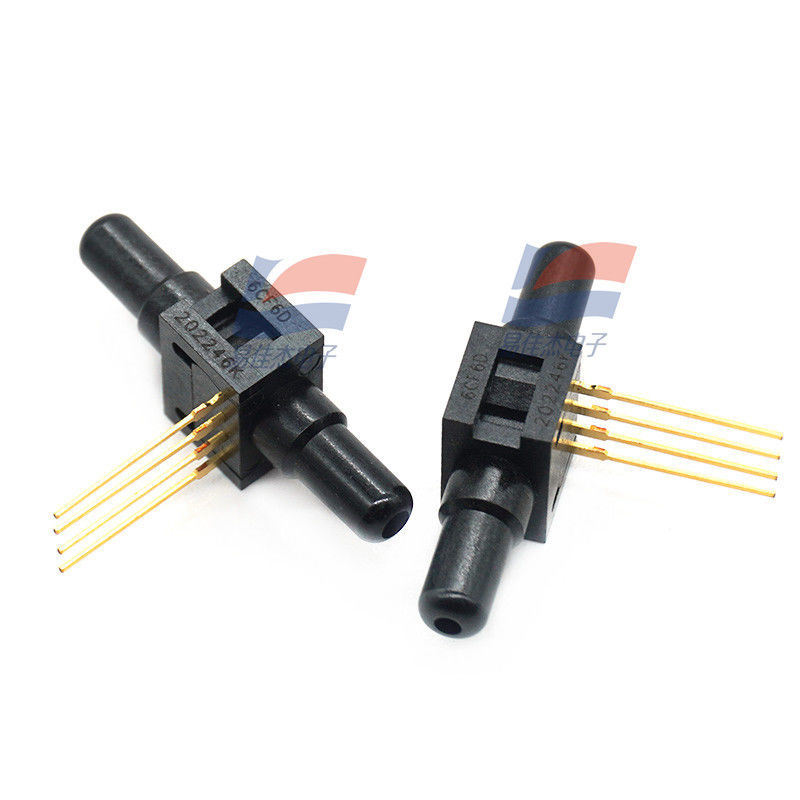

Large Image : 26PCCFA6D Board Mount Pressure Sensors Miniature Low with 0.4% Accuracy

Product Details:

Place of Origin:	USA
Brand Name:	YJJ
Model Number:	26PCCFA6D

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000/pcs/month

Contact Now

26PCCFA6D Board Mount Pressure Sensors Miniature Low with 0.4% Accuracy

Description

Pressure Type:

Vacuum, Gauge, Differential

Operating Pressure:

15 Psi

Accuracy:

0.4 %

Output Type:

Analog

Highlight:

Board Mount Pressure Sensors Miniature Low

Miniature Low Board Mount Pressure Sensors

PCCFA6D Board Mount Pressure Sensors

26PCCFA6D Board Mount Pressure Sensors Miniature Low

The 26PC Series Miniature Pressure Sensors are small, cost-effective devices intended for use with wet or dry media.
These sensors feature proven sensing technology that uses a specialized piezoresistive micromachined sensing element
to offer high performance, reliability, and accuracy. Each sensor contains four active piezoresistors that form a Wheatstone
bridge. When pressure is applied, the resistance changes and the sensor provides a milliVolt output signal that is proportional to the input pressure.

Mounting Style	Through Hole
Operating Supply Voltage	10 V
Port Type	Dual Axial Barbless, Opposite Sides
Package / Case	SIP-4
Minimum Operating Temperature	- 40℃
Maximum Operating Temperature	+ 85℃
Supply Voltage - Max	16 V

26PCCFA6D Board Mount Pressure Sensors Miniature Low with 0.4% Accuracy 0
