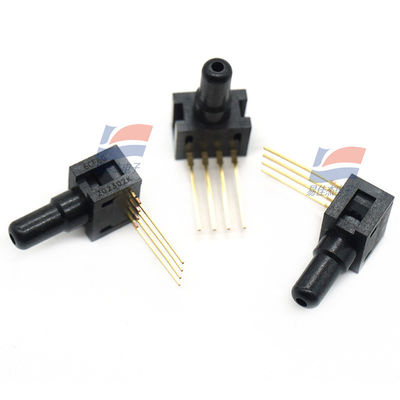

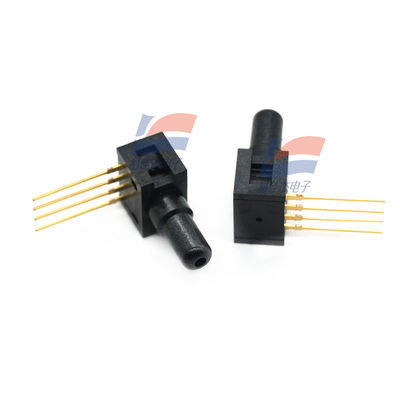

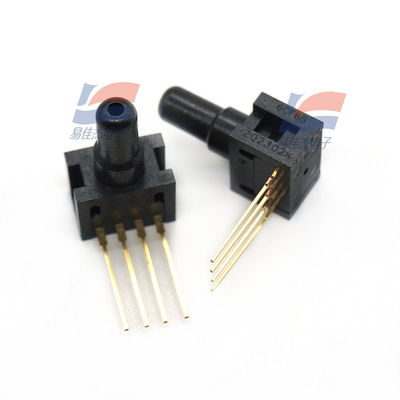

26PCCFA6G Board Mount Pressure Sensors Miniature Low Pressure 1 Psi to 250 Psi

Large Image : 26PCCFA6G Board Mount Pressure Sensors Miniature Low Pressure 1 Psi to 250 Psi

Product Details:

Place of Origin:	USA
Brand Name:	YJJ
Model Number:	26PCCFA6G

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000pcs/Month

Contact Now

26PCCFA6G Board Mount Pressure Sensors Miniature Low Pressure 1 Psi to 250 Psi

Description

Pressure Type:

Vacuum, Gauge

Operating Pressure:

15 Psi

Accuracy:

0.2 %

Output Type:

Analog

Highlight:

PCCFA6G Board Mount Pressure Sensors

Miniature Board Mount Pressure Sensors

1 Psi to 250 Psi Pressure Sensors

26PCCFA6G Board Mount Pressure Sensors Miniature Low Pressure 1 Psi to 250 Psi

The 26PC Series Miniature Pressure Sensors are small, cost-effective devices intended for use with wet or dry media.
These sensors feature proven sensing technology that uses a specialized piezoresistive micromachined sensing element
to offer high performance, reliability, and accuracy. Each sensor contains four active piezoresistors that form a Wheatstone
bridge. When pressure is applied, the resistance changes and the sensor provides a milliVolt output signal that is
proportional to the input pressure.

Mounting Style	Through Hole
Port Type	Single Axial Barbless
Package / Case	SIP-4
Minimum Operating Temperature	- 40℃
Maximum Operating Temperature	+ 85℃
Port Size	0.2 in
Supply Voltage - Max	10 V

26PCCFA6G Board Mount Pressure Sensors Miniature Low Pressure 1 Psi to 250 Psi 0
