30 PSI-A-4V-MINI 1 PSI-D1-4V-SMINI 5 PSI-D1-4V-MINI Micro Pressure Sensor for Suitable for Non-corrosive

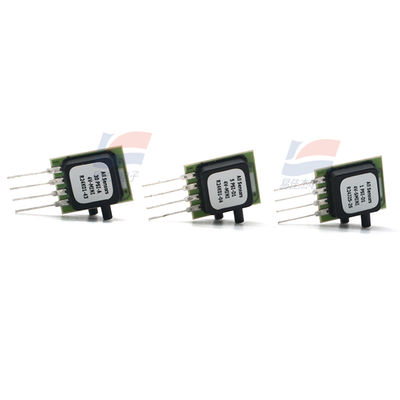

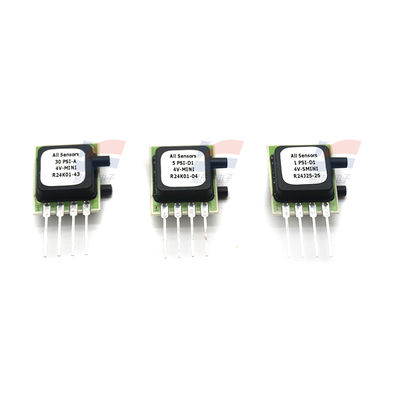

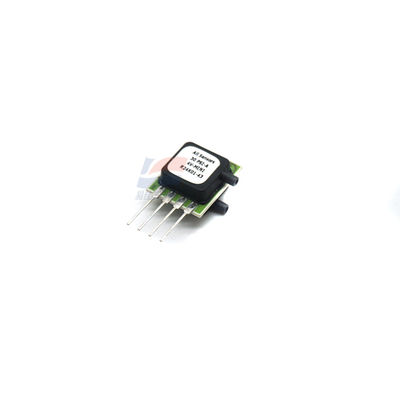

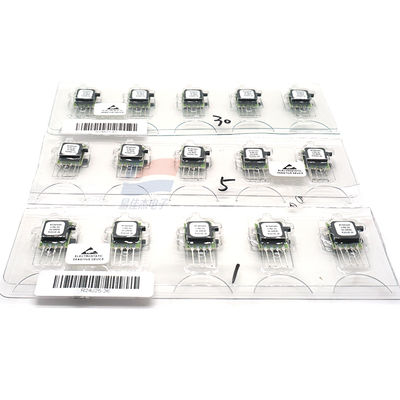

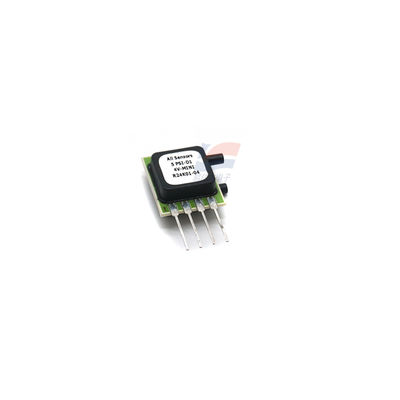

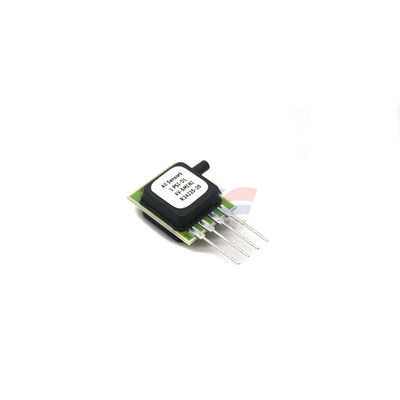

Large Image : 30 PSI-A-4V-MINI 1 PSI-D1-4V-SMINI 5 PSI-D1-4V-MINI Micro Pressure Sensor for Suitable for Non-corrosive

Product Details:

Place of Origin:	USA
Model Number:	30 PSI-A-4V-MINI 1 PSI-D1-4V-SMINI 5 PSI-D1-4V-MINI

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Standard packaging
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

30 PSI-A-4V-MINI 1 PSI-D1-4V-SMINI 5 PSI-D1-4V-MINI Micro Pressure Sensor for Suitable for Non-corrosive

Description

Unit Weight:

7.152 G

Operating Pressure Range:

0~30 Psi (approx. 0~200 KPa)

Output Type:

Analog

Output Voltage:

5.5 V

Highlight:

30 PSI micro pressure sensor

non-corrosive pressure sensor

mini electronic pressure sensor

30 PSI-A-4V-MINI 1 PSI-D1-4V-SMINI 5 PSI-D1-4V-MINI Micro Pressure Sensor for Suitable for Non-corrosive

Product Features:

Adopts silicon micromachined stress concentration enhancement structure for excellent output linearity.
Sensor housing design minimizes parasitic stress and strain caused by packaging.
Internal compensation using ASIC technology ensures stable output across a wide temperature range.

Application Fields:

Suitable for non-corrosive, non-ionic working fluids (e.g., air, dry gases), and can be used in measuring instruments and related equipment.

Brand	All Sensors
Model	30 PSI - A - 4V - MINI
Pressure Type	Absolute Pressure
Product Category	Board - Mounted Pressure Sensor
Mounting Style	Through - Hole Mounting
Package/Case	Miniature Package
Unit Weight	7.152g
Pressure Range	0 - 30psi (about 0 - 200Kpa)
Output Type	Analog
Output Voltage	5.5V
Accuracy	0.25%
Supply Voltage	5V
Minimum Operating Temperature	- 25℃
Maximum Operating Temperature	85℃

30 PSI-A-4V-MINI 1 PSI-D1-4V-SMINI 5 PSI-D1-4V-MINI Micro Pressure Sensor for Suitable for Non-corrosive 0
