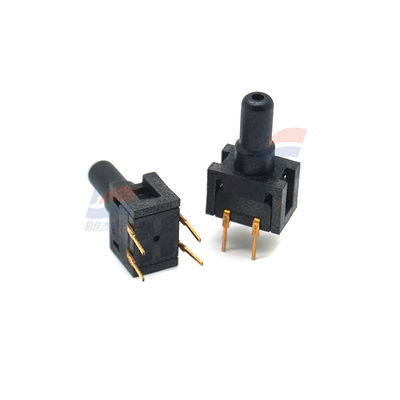

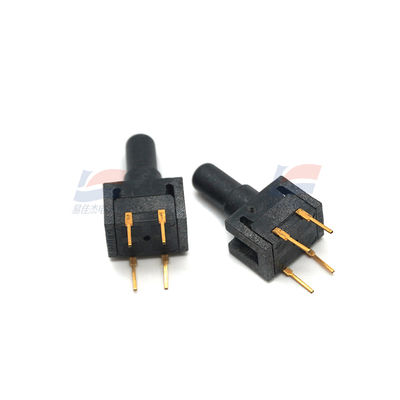

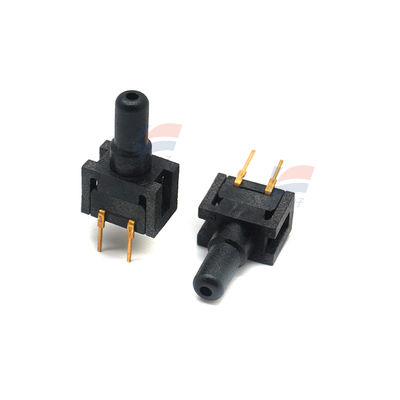

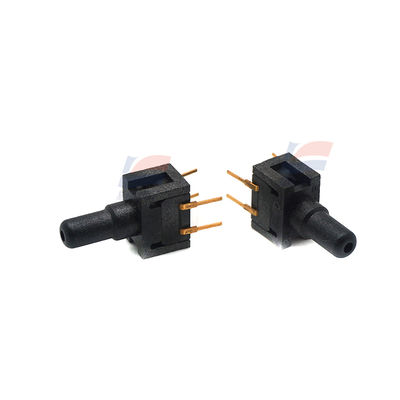

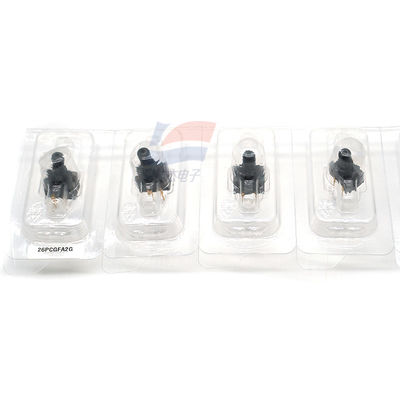

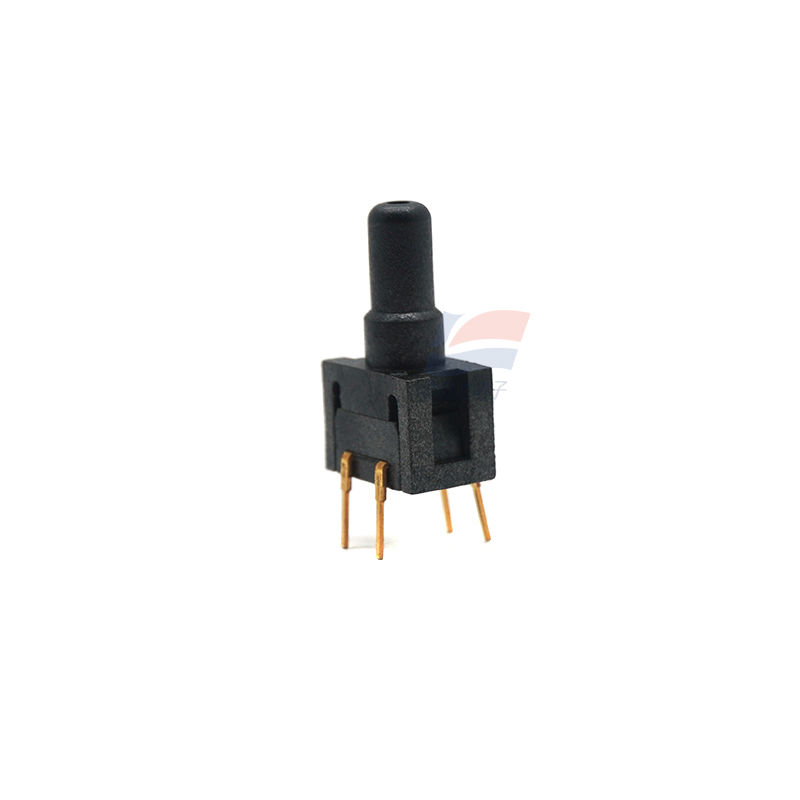

26PCGFA2G Board Mount Pressure Sensors Vacuum Gauge Through Hole

Large Image : 26PCGFA2G Board Mount Pressure Sensors Vacuum Gauge Through Hole

Product Details:

Place of Origin:	USA
Brand Name:	YJJ
Model Number:	26PCGFA2G

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram
Supply Ability:	2000pcs/Month

Contact Now

26PCGFA2G Board Mount Pressure Sensors Vacuum Gauge Through Hole

Description

Pressure Type:

Vacuum, Gauge

Operating Pressure:

250 Psi

Accuracy:

0.4 %

Output Type:

Analog

Highlight:

board mount pressure sensor

vacuum gauge pressure sensor

through hole pressure sensor

26PCGFA2G Board Mount Pressure Sensors Vacuum Gauge Through Hole

These sensors feature proven sensing technology that uses a specialized piezoresistive micromachined sensing element
to offer high performance, reliability, and accuracy. Each sensor contains four active piezoresistors that form a Wheatstone
bridge. When pressure is applied, the resistance changes and the sensor provides a milliVolt output signal that is
proportional to the input pressure.
The low power 26PC sensors are designed to accommodate pressures from 1 psi to 250 psi and have an operating
temperature range of -40 ºC to 85 ºC [-40 ºF to 185 ºF]

Specification

Mounting Style	Through Hole
Package / Case	PDIP-4
Minimum Operating Temperature	- 40℃
Maximum Operating Temperature	+ 85℃
Supply Voltage - Max	10 V

26PCGFA2G Board Mount Pressure Sensors Vacuum Gauge Through Hole 0
