MS5540CM Pressure Sensor For Mobile Altimeters Barometers Meteorological Monitoring systems

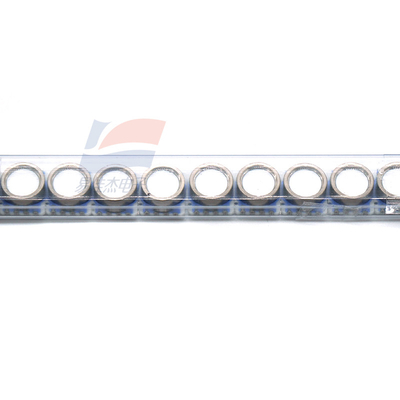

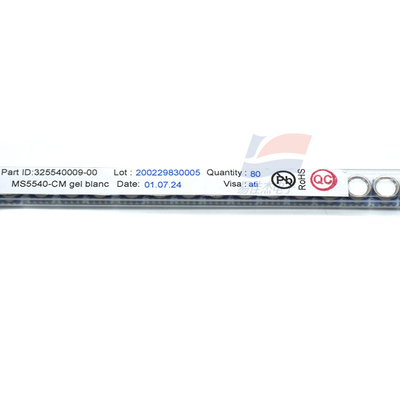

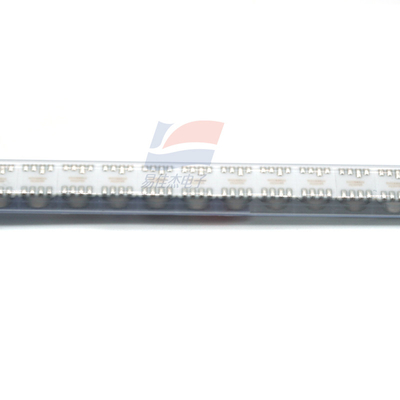

Large Image : MS5540CM Pressure Sensor For Mobile Altimeters Barometers Meteorological Monitoring systems

Product Details:

Place of Origin:	USA
Brand Name:	TE
Model Number:	MS5540CM

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Standard packaging
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

MS5540CM Pressure Sensor For Mobile Altimeters Barometers Meteorological Monitoring systems

Description

Dimensions:	6.2×6.4 Mm	Pressure Measurement Range:	10 - 1100 Mbar (1 KPa - 110 KPa)
Resolution:	0.1 Mbar	ADC Resolution:	16 - Bit
Interface:	3 - Wire Serial Interface	System Clock:	32.768 KHz
Highlight:	MS5540CM mobile altimeter sensor , barometric pressure sensor for meteorological systems , electronic pressure sensor for altimeters

MS5540CM Pressure Sensor For Mobile Altimeters Barometers Meteorological Monitoring systems

Protection Features:

Waterproof gel coating, meeting the 100-meter waterproof requirement for diving watches.
Electrostatic discharge (ESD) protection improved to 4 kV for all pins.

Compatibility:

Fully compatible with software versions of MS5534C and previous MS5540 models.
Form factor compatible with the MS54XX series.

Environmental Compliance:

Lead-free and RoHS compliant.

Typical Applications

Mobile altimeters and barometers
Meteorological monitoring systems
Multifunctional sports watches
Diving equipment and watches
Mobile water depth detection devices

Sensor Type	Absolute - pressure sensor
Dimensions	6.2×6.4 mm
Pressure Measurement Range	10 - 1100 mbar (1 kPa - 110 kPa)
Resolution	0.1 mbar
ADC Resolution	16 - bit
Output	16 - bit digital output, providing digital pressure and temperature values
Interface	3 - wire serial interface
System Clock	32.768 kHz
Operating Temperature Range	- 40℃ to 85℃
Supply Voltage	2.2 - 3.6 V
Operating Current	< 5 μA
Standby Current	< 0.1 μA

MS5540CM Pressure Sensor For Mobile Altimeters Barometers Meteorological Monitoring systems 0
