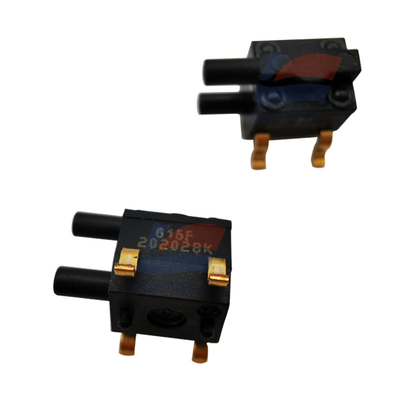

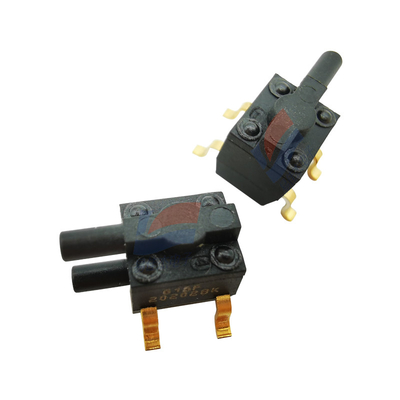

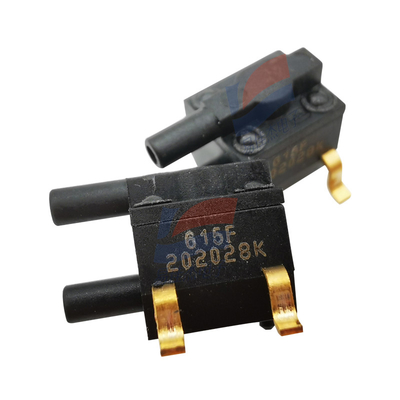

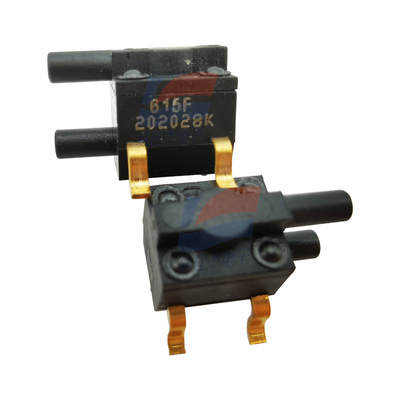

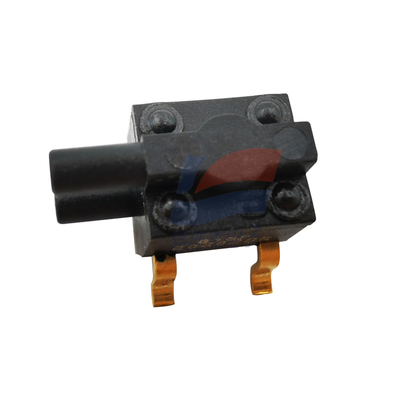

26PC15SMT Board-mounted Pressure/Force Sensor For Measuring Gauge Pressure Vacuum Wet

Large Image : 26PC15SMT Board-mounted Pressure/Force Sensor For Measuring Gauge Pressure Vacuum Wet

Product Details:

Place of Origin:	USA
Model Number:	26PC15SMT

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiable
Packaging Details:	Standard packaging
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000PCS

Contact Now

26PC15SMT Board-mounted Pressure/Force Sensor For Measuring Gauge Pressure Vacuum Wet

Description

Package:	4-SMD Module	Pressure Range:	±15 Psi (approximately ±103.42 KPa)
Supply Voltage:	2.5V–16V	Accuracy:	±0.25%
Linearity:	0.5% (%F.S.)	Operating Temperature Range:	-40°C To 85°C
Highlight:	board-mounted pressure sensor , force sensor gauge pressure , vacuum wet pressure sensor

26PC15SMT Board-mounted Pressure/Force Sensor For Measuring Gauge Pressure Vacuum Wet

Materials and Technology:

Material: Polymer
Physical Properties: Semiconductor
Crystal Structure: Single crystal
Manufacturing Process: Integrated

Product Features:

Adopts piezoresistive micro-machined sensing elements for reliable performance and high accuracy.
Ultra-thin Surface Mount Technology (SMT) supports automatic assembly on PCBs, reducing assembly costs.
Compatible with various wet and dry media that are compatible with polyphthalamide (PPA) plastic and sealing media.

Application Fields:

Suitable for measuring gauge pressure, vacuum, or wet/wet differential pressure in scenarios such as industrial process control, environmental monitoring, and medical equipment.

Operating Temperature	-40°C - 85°C
Compensated Temperature Range	0°C - 50°C
Storage Temperature	-55°C - 100°C
Output Type	Analog, Wheatstone Bridge
Supply Voltage	2.5V - 16V, 10V
Pressure Port	Straight,Male - 0.07" (1.88 mm) Tube
Package/Case	4 - SMD Module
Number of Pins	4
Weight	500 mg
Dimensions (Length×Width×Height)	7.11 mm×6.1 mm×7.87 mm 7.1mm×6.1mm×7.7mm
Linearity	±0.5% span typ.,±1.0% span max.
Response Time	1 ms
Max Pressure	±45 Psi(±310.26kPa)

26PC15SMT Board-mounted Pressure/Force Sensor For Measuring Gauge Pressure Vacuum Wet 0
