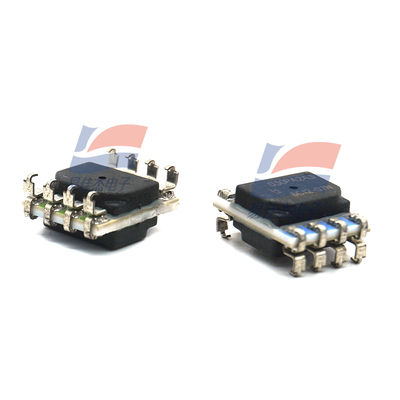

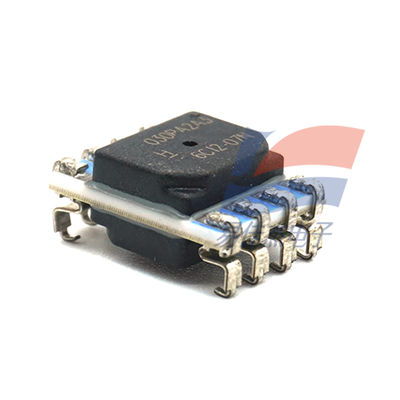

SSCMNNN030PA2A3 Pessure Sensor Suitable For Non-corrosive Non-ionic Gases

                SSCMNNN030PA2A3 Pessure Sensor Suitable For Non-corrosive Non-ionic Gases

Pressure Parameters:

• Pressure Type: Absolute Pressure
• Working Pressure Range: 30 PSI (approximately 0–206.85 kPa)

Electrical Parameters:

• Output Type: I²C
• Supply Voltage: 3V–3.6V
• Nominal Supply Current: 1.6 mA

Accuracy:

±0.25%

Physical Characteristics:

• Package/Case: 8-SMD, 鸥翼型 (Gull Wing)
• Dimensions: Length 10 mm × Width 13.3 mm × Height 5.44 mm
• Termination Type: Gull Wing
• Mounting Style: Surface Mount

Environmental Specifications:

• Operating Temperature Range: -40°C–85°C

Other Features:

• Response Time: 1 ms
• Measured Media: Suitable for non-corrosive, non-ionic gases (e.g., air and other dry gases)
• Standards Compliance: Meets IPC/JEDEC J-STD-020D.1 Moisture Sensitivity Level 1 requirements
