DC002NDC4 Pressure Sensor For Being Integrated Into Infusion Pumps Medical Equipment

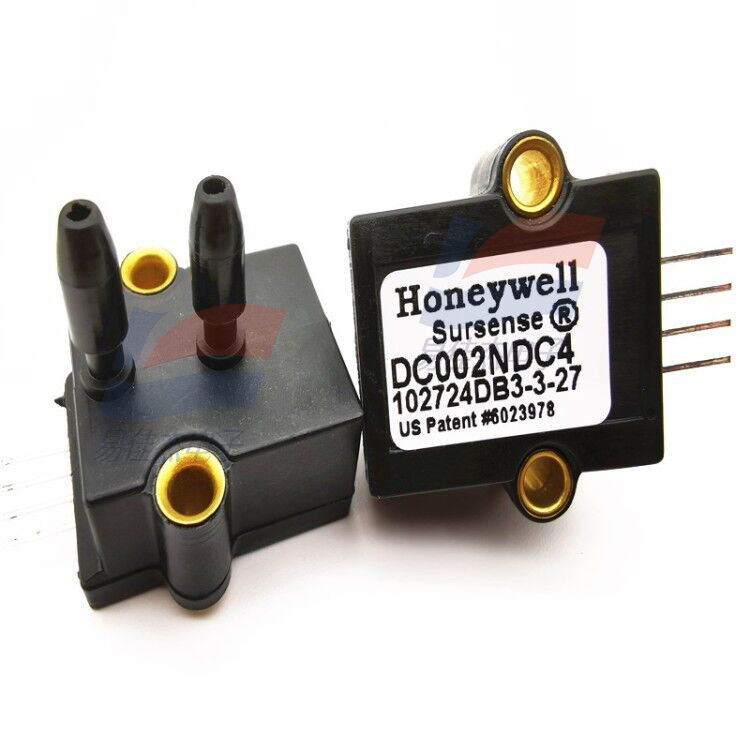

Large Image : DC002NDC4 Pressure Sensor For Being Integrated Into Infusion Pumps Medical Equipment

Product Details:

Place of Origin:	USA
Model Number:	DC002NDC4

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiable
Packaging Details:	Standard packaging
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000PCS

Contact Now

DC002NDC4 Pressure Sensor For Being Integrated Into Infusion Pumps Medical Equipment

Description

Operating Temperature Range:	- 25°C To 85°C	Output Voltage Range:	0.25 V To 4.25 V Or 2.25 V To 6.25 V
Supply Current:	4 MA (typical)	Supply Voltage:	3.0 V To 16.0 V, Typical Value Is 5 V
Accuracy:	±0.05%	Pressure Range:	0 Psi To 0.072 Psi
Highlight:	medical infusion pump pressure sensor , DC002NDC4 electronic pressure sensor , integrated medical equipment pressure sensor

DC002NDC4 Pressure Sensor For Being Integrated Into Infusion Pumps Medical Equipment

Product Features:
- It is a temperature - compensated differential sensor, which can provide relatively accurate pressure measurement in a certain temperature range.
- The barbed port design is convenient for pipeline connection, which is suitable for board - mount applications.
Application Fields:
- It can be used in medical equipment, such as being integrated into infusion pumps, ventilators and other equipment to measure the pressure of liquids or gases, helping medical staff to monitor the treatment process and ensure the safety of patients. It can also be used in some industrial occasions that require low - pressure measurement.

Accuracy	±0.05%	--
Output Type	Analog voltage	--
Output Voltage Range	0.25 - 4.25 V or 2.25 - 6.25 V	V
Supply Voltage	3.0 - 16.0 V, typical 5 V	V
Supply Current	4 (typical)	mA
Operating Temperature Range	-25 - 85	°C
Mounting Style	Through - hole	--
Package/Case	4 - SIP module	--
Port Type	Dual Radial Barbed, Same sides	--
Port Size	Male - 0.19" (4.83 mm) tube, dual	--
Body Length	21.59	mm
Body Breadth	12.95	mm
Body Height	27.43	mm
Maximum Pressure	3.61 psi (24.92 kPa)	psi (kPa)

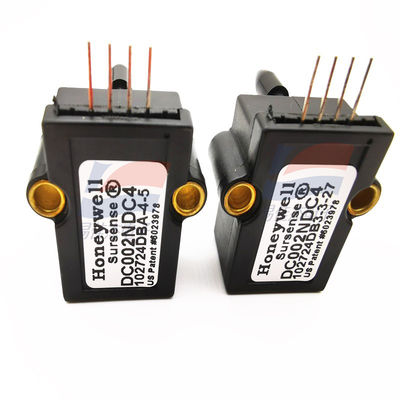

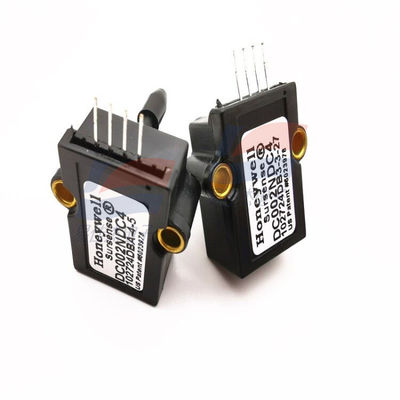

DC002NDC4 Pressure Sensor For Being Integrated Into Infusion Pumps Medical Equipment 0
