CPXL10DF Pressure Sensor For Medical Applications

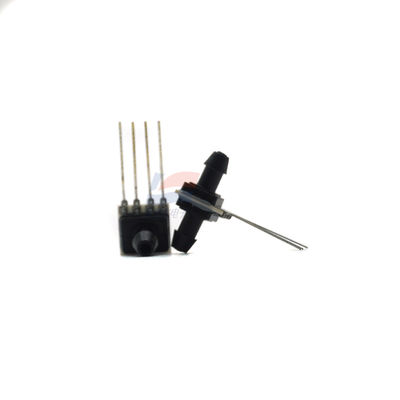

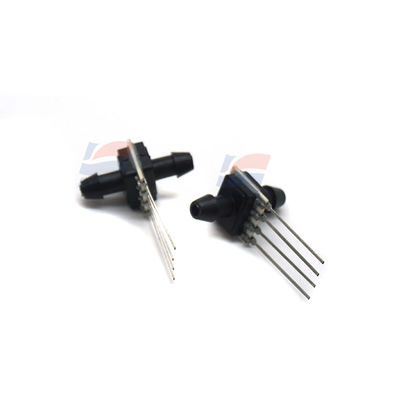

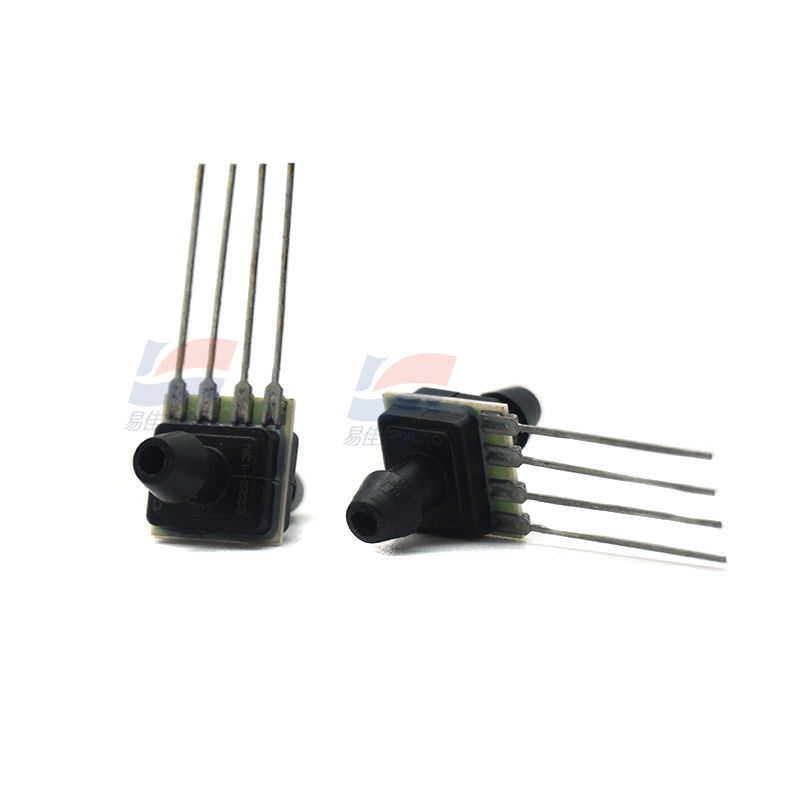

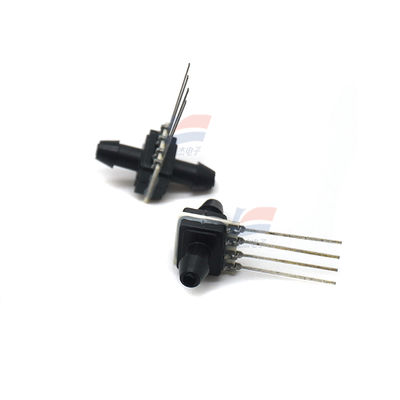

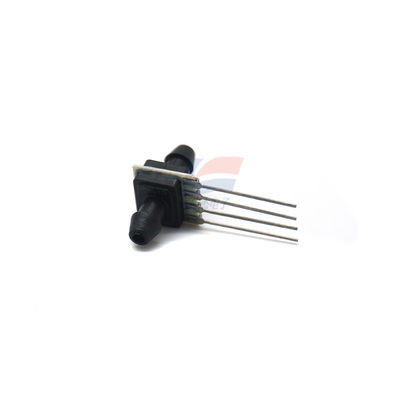

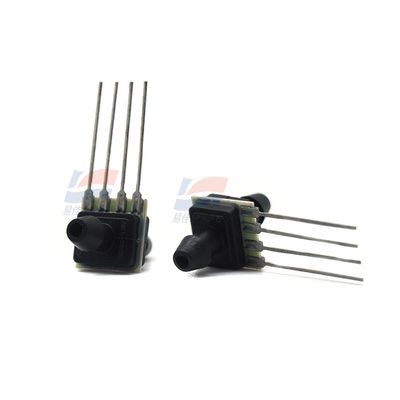

Large Image : CPXL10DF Pressure Sensor For Medical Applications

Product Details:

Place of Origin:	USA
Model Number:	CPXL10DF

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiable
Packaging Details:	Standard packaging
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, T/T, MoneyGram
Supply Ability:	5000pcs

Contact Now

CPXL10DF Pressure Sensor For Medical Applications

Description

Working Pressure:

0.36 PSI (2.49 KPa), 10" H₂O

Output Range:

0 MV ~ 78.5 MV

Supply Voltage:

3 V ~ 16 V

Operating Temperature Range:

- 25°C ~ 85°C

Highlight:

medical pressure sensor

electronic pressure sensor CPXL10DF

CPXL10DF medical application sensor

CPXL10DF Pressure Sensor For Medical Applications

Product Features:
- The CPXL series, where the product belongs, integrates silicon micromachined sensing technology, temperature compensation, and calibration, with the advantages of low - cost and small - size.
- It has a millivolt output, supports constant - voltage excitation, and has the characteristics of high impedance and low current.
Application Scenarios:
- Suitable for medical applications, as well as occasions requiring small - size and vacuum reference.

Parameter	English Expression	Value	Unit
Pressure Sensing Mode	Pressure Sensing Mode	Differential	--
Sensor/Transducer Type	Sensor/Transducer Type	Pressure Sensor, Piezoresistive	--
Pressure Range	Pressure Range	10	in H₂O
Output Range	Output Range	0 - 78.5	mV
Output Type	Output Type	Analog Voltage	--
Linearity	Linearity	±1	%
Maximum Supply Voltage	Max Supply Voltage	16	V
Minimum Supply Voltage	Min Supply Voltage	3	V
Operating Temperature Range	Operating Temperature Range	-25 - 85	°C
Overpressure	Overpressure	3	psi
Pin 1	Pin 1	-V Excitation	--
Pin 2	Pin 2	+Output Signal	--
Pin 3	Pin 3	+V Excitation	--
Pin 4	Pin 4	-Output Signal

CPXL10DF Pressure Sensor For Medical Applications 0

Tag:

Oil Filled Pressure Sensor,

Piezoresistive Pressure Sensor,

Piezoresistive Differential Pressure Sensor
