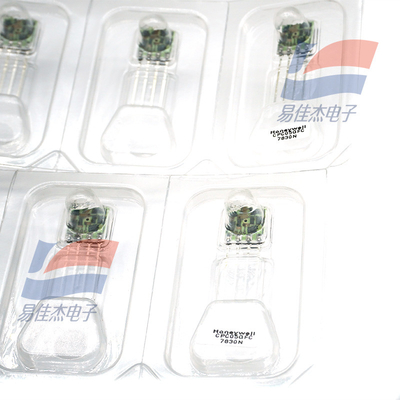

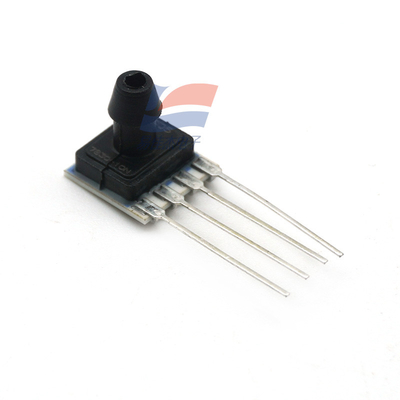

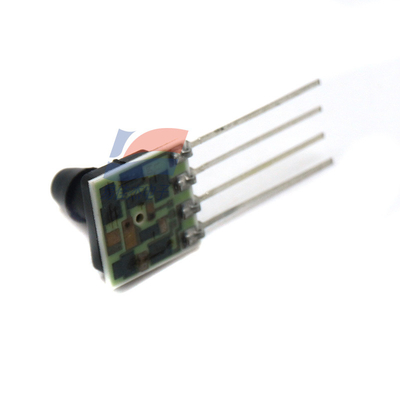

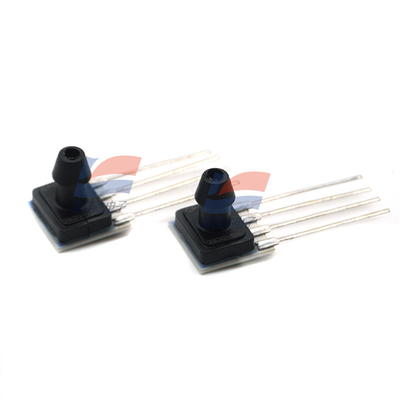

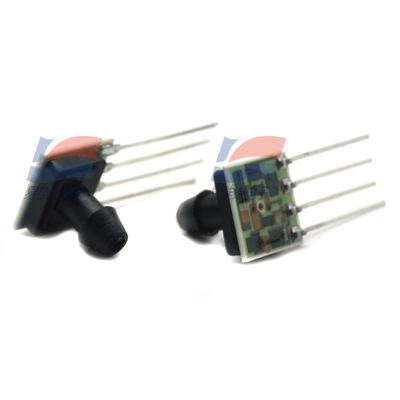

CPC05GFC Pressure Sensor For HVAC Equipment Data Storage Process Control Industrial Machinery

Large Image : CPC05GFC Pressure Sensor For HVAC Equipment Data Storage Process Control Industrial Machinery

Product Details:

Place of Origin:	USA
Model Number:	CPC05GFC

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiable
Packaging Details:	Standard packaging
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000PCS

Contact Now

CPC05GFC Pressure Sensor For HVAC Equipment Data Storage Process Control Industrial Machinery

Description

Output:

0 MV - 60 MV

Supply Voltage:

3 V - 16 V

Operating Temperature:

-25°C - 85°C

Package/Case:

4 - SIP Module

Highlight:

HVAC pressure sensor

industrial machinery pressure sensor

data storage pressure sensor

CPC05GFC Pressure Sensor For HVAC Equipment Data Storage Process Control Industrial Machinery

Product Features:
The sensor adopts a design with four piezoresistors embedded under the surface of a thin chemically - etched silicon diaphragm. The change in pressure will cause the diaphragm and the built - in resistors to deform, and the resistance value will change proportionally to the stress, thus generating an electrical output. It has the characteristics of high precision and good linearity, with a typical linearity and hysteresis accuracy of 0.25%.
Application Fields:
It can be used in dialysis equipment, blood analysis, oxygen and nitrogen distribution, HVAC equipment, data storage, process control, industrial machinery, pumps, and robot control.

Model	CPC05GFC
Manufacturer	Honeywell Sensing and Control
Pressure Type	Gauge
Pressure Range	±5 psi 0 - 4
Accuracy	±0.25%
Output Type	Analog voltage output
Output Range	0 - 60
Supply Voltage	3 - 16
Mounting Style	Through Hole
Port Type	Dual Radial Barbed, Same sides
Port Size	Male, 0.15" (3.8mm) tube
Terminal Type	PCB
Package/Case	4 - SIP module
Operating Temperature Range	-25 - 85
Body Breadth	2.7
Body Height	9.9
Body Length or Diameter	9.9

CPC05GFC Pressure Sensor For HVAC Equipment Data Storage Process Control Industrial Machinery 0

Tag:

Oil Filled Pressure Sensor,

Piezoresistive Pressure Sensor,

Piezoresistive Differential Pressure Sensor
