MPX10DP Pressure Sensor Environmental Control Systems Level Indicators Leak Detection

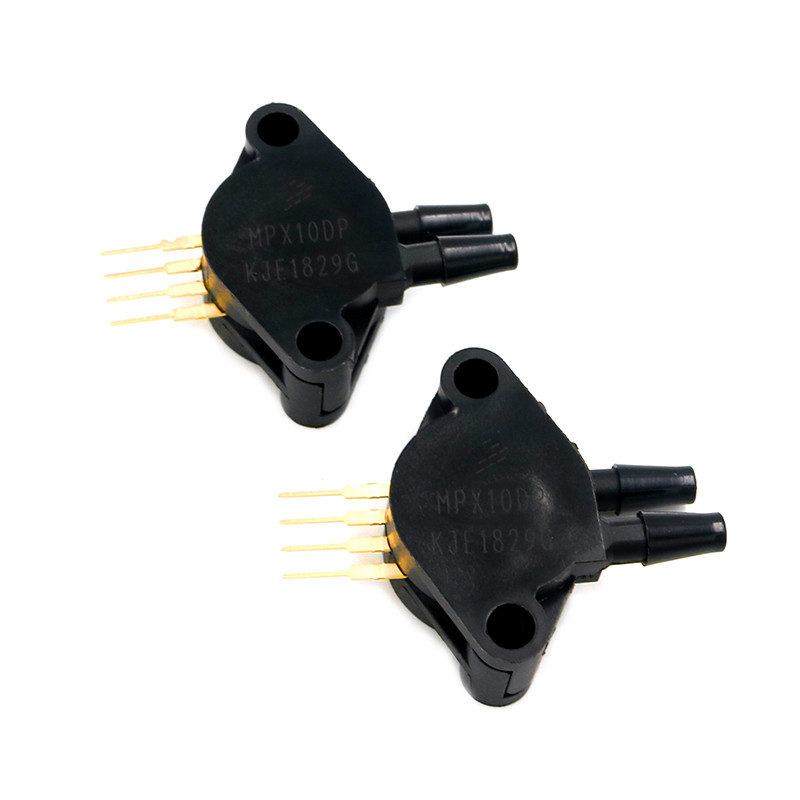

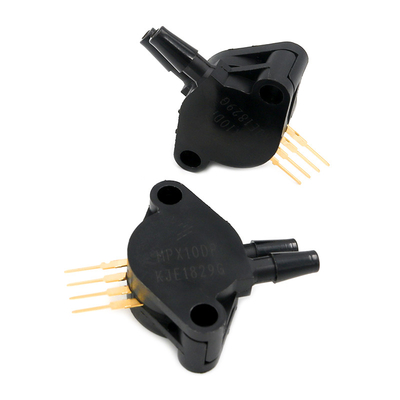

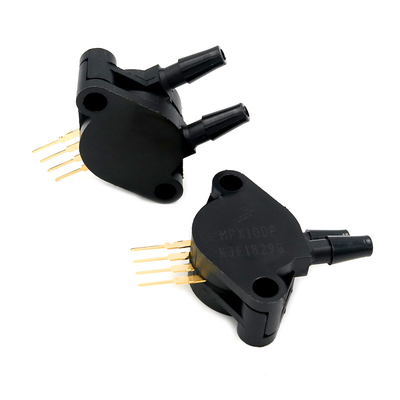

Large Image : MPX10DP Pressure Sensor Environmental Control Systems Level Indicators Leak Detection

Product Details:

Place of Origin:	USA
Model Number:	MPX10DP

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiable
Packaging Details:	Standard packaging
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000PCS

Contact Now

MPX10DP Pressure Sensor Environmental Control Systems Level Indicators Leak Detection

Description

Pressure Range:	0 - 10 KPa	Sensitivity:	3.5 MV/kPa
Output:	0 - 35 MV	Accuracy:	±1%
Supply Voltage:	3 - 6 V	Operating Temperature Range:	-40 - 125 °C
Highlight:	MPX10DP pressure sensor leak detection , electronic pressure sensor level indicators , environmental control pressure sensor MPX10DP

MPX10DP Pressure Sensor Environmental Control Systems Level Indicators Leak Detection

Product Features:
- It has a patented silicon shear - stress strain - gauge design, and the output is proportional to the supply voltage.
- It is a cost - effective standard uncompensated sensor, allowing manufacturers to design and add their own external temperature compensation and signal - conditioning networks.
- It is available in differential and gauge options, with a durable epoxy unibody element or thermoplastic (PPS) surface - mount package.
Application Fields:
- It can be used in air movement control, environmental control systems, level indicators, leak detection, medical diagnostics, industrial controls, pneumatic control systems, robotics and other fields.

Pressure Range	0 – 10 kPa
Sensitivity	3.5	mV/kPa
Output Range	0 - 35	mV
Supply Voltage	3 - 6	V
Operating Supply Current	6	mA
Linearity	-1 to +1	%FSS
Pressure Hysteresis	±0.1	%FSS
Temperature Hysteresis	±0.5	%FSS
Input Impedance	400 - 550	Ω
Output Impedance	125 - 750	Ω
Storage Temperature Range	-50 - 150	°C
Operating Temperature Range	-40 - 125	°C
Response Time	1	ms
Overload Pressure	75	kPa
Pin Count	4	--
Package/Case	4 - SIP Module

MPX10DP Pressure Sensor Environmental Control Systems Level Indicators Leak Detection 0
