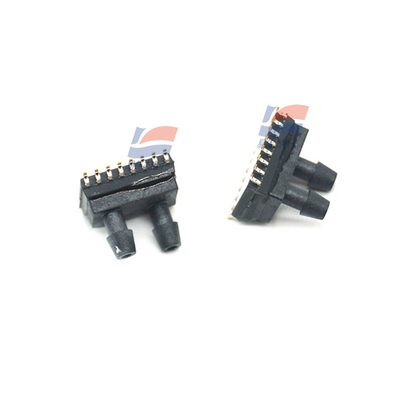

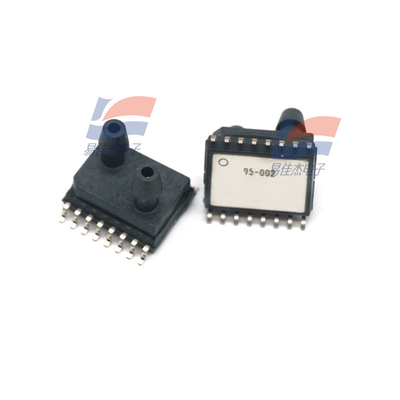

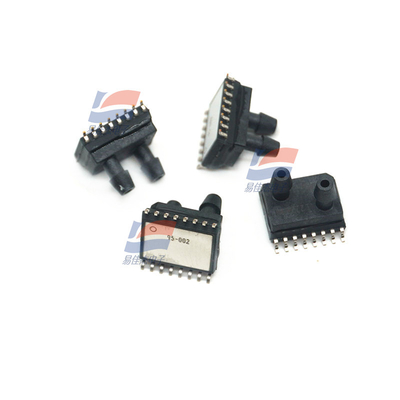

SM9541-020C-S-C-3-S Pressure Sensor For Medical Field Industrial Field

SM9541-020C-S-C-3-S Pressure Sensor For Medical Field Industrial Field
SM9541-020C-S-C-3-S Pressure Sensor For Medical Field Industrial Field SM9541-020C-S-C-3-S Pressure Sensor For Medical Field Industrial Field SM9541-020C-S-C-3-S Pressure Sensor For Medical Field Industrial Field

Large Image :  SM9541-020C-S-C-3-S Pressure Sensor For Medical Field Industrial Field

Product Details:
Place of Origin: USA
Model Number: SM9541-020C-S-C-3-S
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Standard packaging
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000PCS
Contact Now

SM9541-020C-S-C-3-S Pressure Sensor For Medical Field Industrial Field

Description
Pressure Range: 1 - 20 CmH₂O (Approx. 0.15 - 3 Psi) Accuracy: ±1% FS
Supply Voltage: 3.3 VDC Supply Current: 2 MA
Resolution: 14 - Bit Compensated Temperature Range: -5 - 60 °C
Highlight:

medical pressure sensor SM9541

,

industrial pressure sensor 020C

,

electronic pressure sensor S-C-3-S



                                 SM9541-020C-S-C-3-S Pressure Sensor For Medical Field Industrial Field



Product features:

  • Fully digital, pressure - calibrated, and temperature - compensated output.
  • I2C digital interface, which is easy to connect to the main control of different platforms.
  • 14 - bit resolution provides high - precision measurement results.
  • Insensitive to mounting orientation, with strong adaptability.
  • Adopt JEDEC standard SOIC - 16 package, suitable for automated assembly, and can be directly installed on the standard printed circuit board.



Application field:



  • Medical Field:Sleep apnea (CPAP, MPAP) equipment, ventilators/anesthesia equipment, oxygenators, spirometers.
  • Industrial Field:Pneumatic gauges, pressure switches, safety cabinets, liquid level measurement.
  • Consumer Field:Sports equipment, appliances.
Pressure Range 1-20 cmH₂O
Accuracy ±1% FS --
Supply Voltage 3.3 VDC
Supply Current 2 mA
Output Interface I2C --
Resolution 14 - bit --
Compensated Temperature Range -5 - 60 °C
Operating Temperature Range -5 - 65 °C
Port Style Dual Radial Barbed --
Long - term Zero Shift <+2% FS over 10 years --
Package/Case SOIC - 16



SM9541-020C-S-C-3-S Pressure Sensor For Medical Field Industrial Field 0



Tag:

Oil Filled Pressure Sensor,

Piezoresistive Pressure Sensor,

Piezoresistive Differential Pressure Sensor
