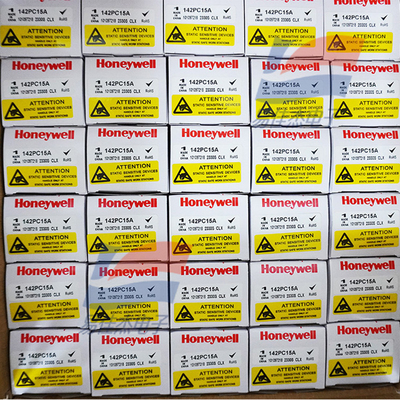

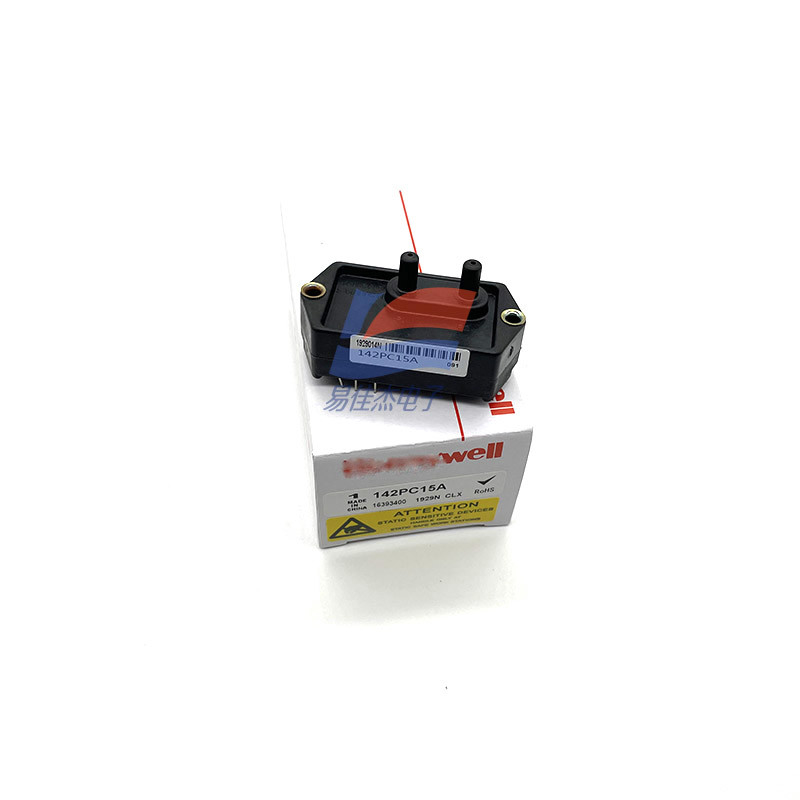

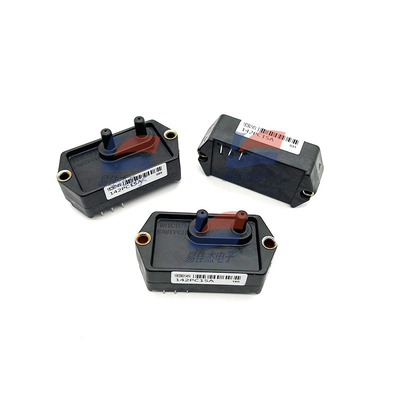

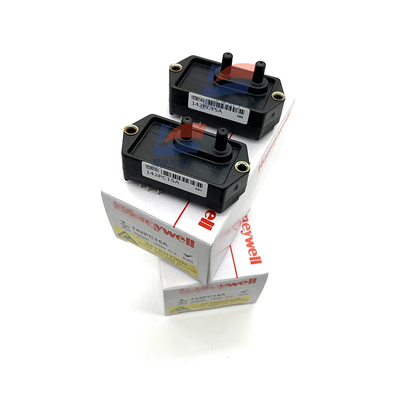

142PC15A Pressure Sensor For biomedical instrumentation

142PC15A Pressure Sensor For biomedical instrumentation
142PC15A Pressure Sensor For biomedical instrumentation 142PC15A Pressure Sensor For biomedical instrumentation 142PC15A Pressure Sensor For biomedical instrumentation 142PC15A Pressure Sensor For biomedical instrumentation

Large Image :  142PC15A Pressure Sensor For biomedical instrumentation

Product Details:
Place of Origin: USA
Model Number: 142PC15A
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Standard packaging
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000PCS
Contact Now

142PC15A Pressure Sensor For biomedical instrumentation

Description
Operating Pressure Range: 2 Psi ~ 15 Psi Maximum Pressure: 45 Psi
Accuracy: ±0.4% Supply Voltage: 7 V ~ 16 V
Nominal Supply Current: 8mA Max Supply Current: 20 MA
Highlight:

142PC15A biomedical pressure sensor

,

electronic pressure sensor for instrumentation

,

medical instrumentation pressure transducer



                                  142PC15A Pressure Sensor For biomedical instrumentation



Product features:



  • It has a fully - signal - conditioned and amplified output, which can provide a stable voltage output within the specified pressure range.
  • With temperature compensation function, it can maintain high - accuracy measurement in the temperature range of - 40 °C ~ 85 °C.
  • The 3 - SIP module package is adopted, which is convenient for board - mounting, and the PCB pins are easy to connect.





Application field:

  • Widely used in aviation, marine, automotive, biomedical instrumentation and other industrial fields, such as pressure monitoring in aircraft fuel systems, marine hydraulic systems, automotive engine oil pressure detection, etc.



Operating Pressure Range 2-15psi
Maximum Pressure 45psi
Supply Voltage 7 – 16 vdc
Supply Current 8mA
Maximum Supply Current 20mA
Zero - Offset(@2psia) 1.62 - 1.72v
Output Voltage at Full Pressure 5.9 - 6.10v
Full - Scale 4.95 - 5.05v
Error(7 - 8V or 8 - 9V) ±0.5% F.S
Error(9 - 12V) ±2.00% F.S
Linearity 0.25 - 0.75% F.S
Sensitivity and Zero - Drift(25 - 5°C) ±0.5% F.S
Sensitivity and Zero - Drift(25 - 45°C) ±0.5% F.S
Sensitivity and Zero - Drift(25 - 18°C) ±1.5% F.S



142PC15A Pressure Sensor For biomedical instrumentation 0
