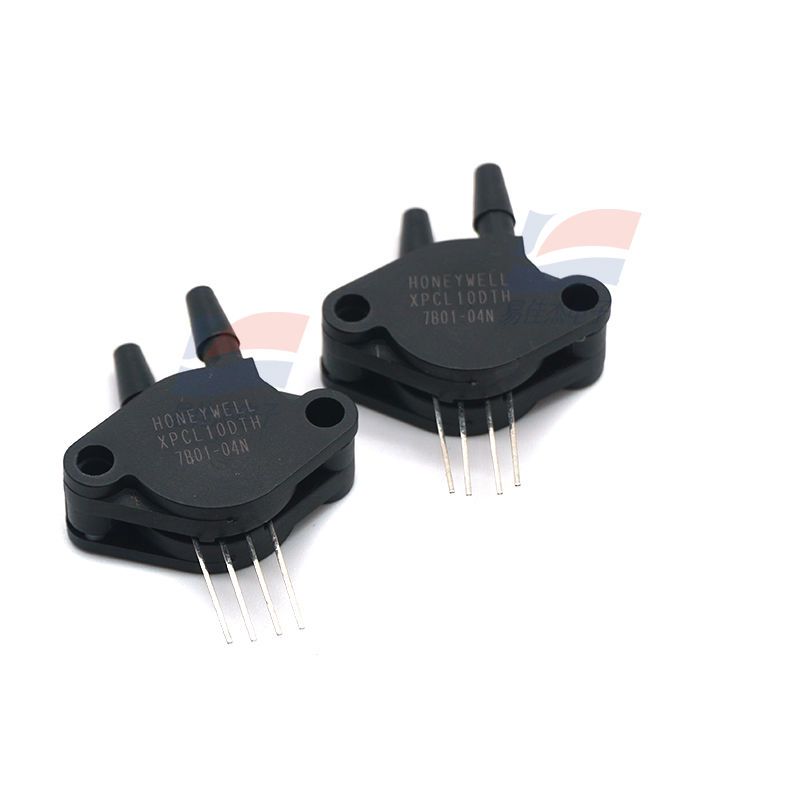

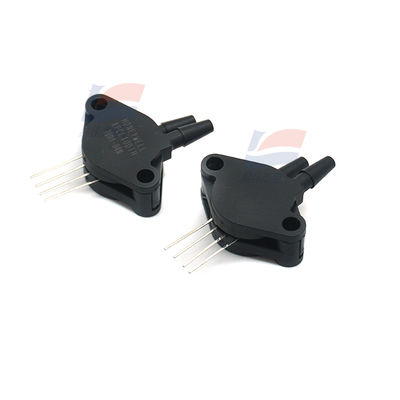

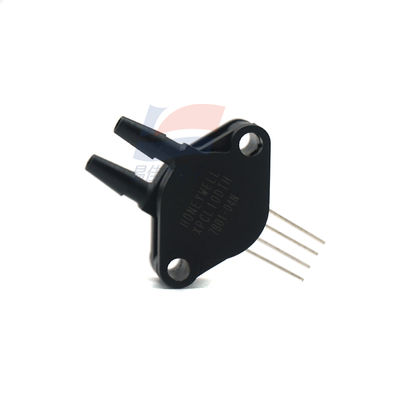

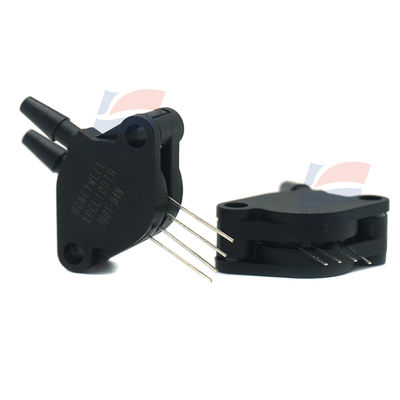

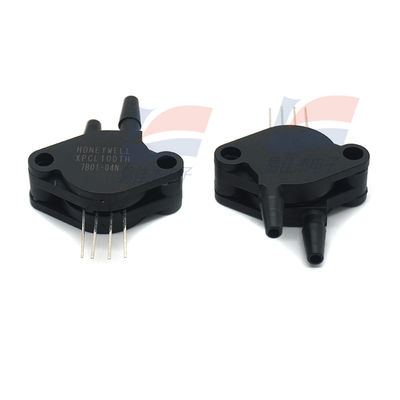

YJJ XPCL10DTH Push-Button Interface Pressure Sensor Is Used In Medical Devices

Product Description:

XPCL10DTH Push-Button Interface Pressure Sensor Is Used In Medical Devices

Features:

Function, Application

Compensation/Calibration and Uncompensated/Uncalibrated Board-mounted Pressure Sensors

Description: The XPC/XPCL series and XPXL series sensors integrate silicon microfabrication sensing technology, temperature compensation, and calibration into a complete low-cost package. This series provides an economical solution for design requirements. These piezoelectric pressure sensors use microfabricated silicon chips mounted on ceramics and are protected by plastic covers. Several tube arrangements

Pressure type: Vacuum, Gauge, Differential

Working pressure: 10 in H2O

Accuracy: 1%

Output type: Analog

Installation style: Through Hole

Operating power supply voltage: 12 V

Port type: Dual Radial Barbless

Package / Housing: SIP-4

Minimum operating temperature: -25°C

Maximum operating temperature: +85°C

Series: XPCL

Port size: 0.19 inches

Product type: Board-mounted pressure sensors 5

Subcategory: Sensors

Power supply voltage - maximum: 16 V

Power supply voltage - minimum: 3 V
