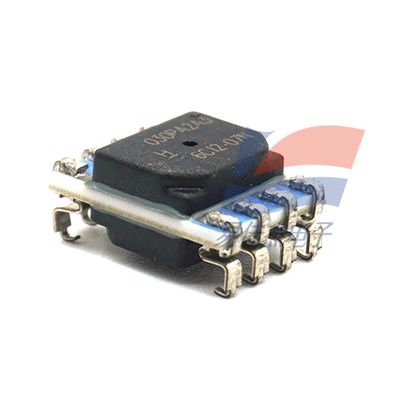

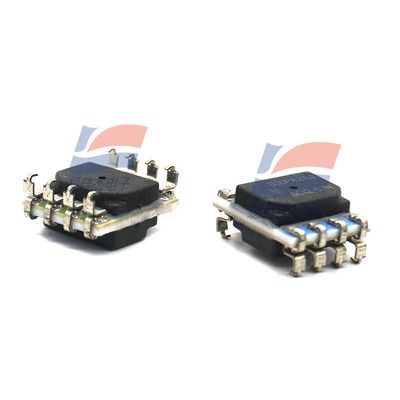

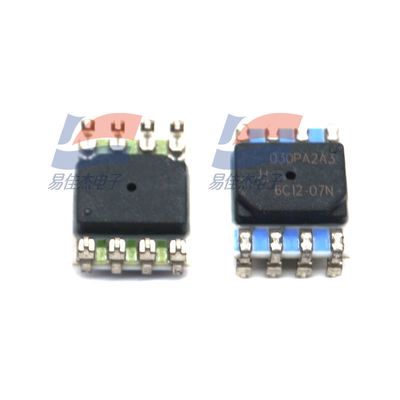

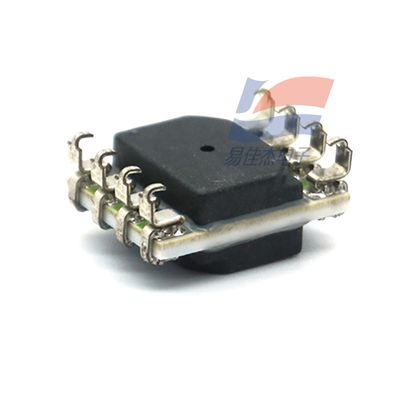

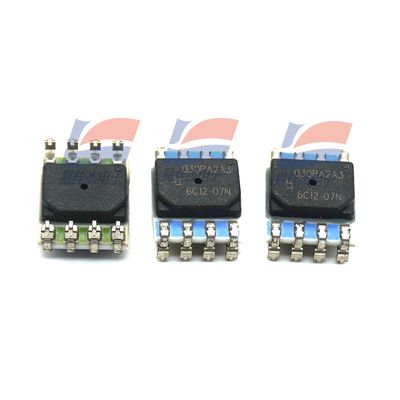

SSCMNNN030PA2A3 Board Mount Pressure Sensors Absolute SMD SMT Type

Large Image : SSCMNNN030PA2A3 Board Mount Pressure Sensors Absolute SMD SMT Type

Product Details:

Place of Origin:	USA
Brand Name:	YJJ
Model Number:	SSCMNNN030PA2A3

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000/pcs/month

Contact Now

SSCMNNN030PA2A3 Board Mount Pressure Sensors Absolute SMD SMT Type

Description

Pressure Type:

Absolute

Operating Pressure:

0 Psi To 30 Psi

Accuracy:

0.25 %

Output Type:

Digital

Highlight:

SMD pressure sensor absolute

board mount pressure sensor SMT

electronic pressure sensor SMD

SSCMNNN030PA2A3 Board Mount Pressure Sensors Absolute SMD SMT Type

DESCRIPTION
The TruStability Standard Accuracy Silicon Ceramic (SSC) Series is a piezoresistive silicon pressure sensor offering a
digital output for reading pressure over the specified full scale pressure span and temperature range.
The SSC Series is fully calibrated and temperature compensated for sensor offset, sensitivity, temperature effects,
and non-linearity using an on-board Application Specific Integrated Circuit (ASIC). Calibrated output values for pressure
are updated at approximately 2 kHz.

Mounting Style	SMD/SMT
Interface Type	I2C
Operating Supply Voltage	3 V
Port Type	Manifold
Resolution	12 bit
Package / Case	SMT-8
Minimum Operating Temperature	- 40℃
Maximum Operating Temperature	+ 85℃
Supply Voltage - Max	3.3 V
Supply Voltage - Min	3 V

SSCMNNN030PA2A3 Board Mount Pressure Sensors Absolute SMD SMT Type 0
