ADS21 Diffuse Silicon Gauge Pressure Sensor Fast Response

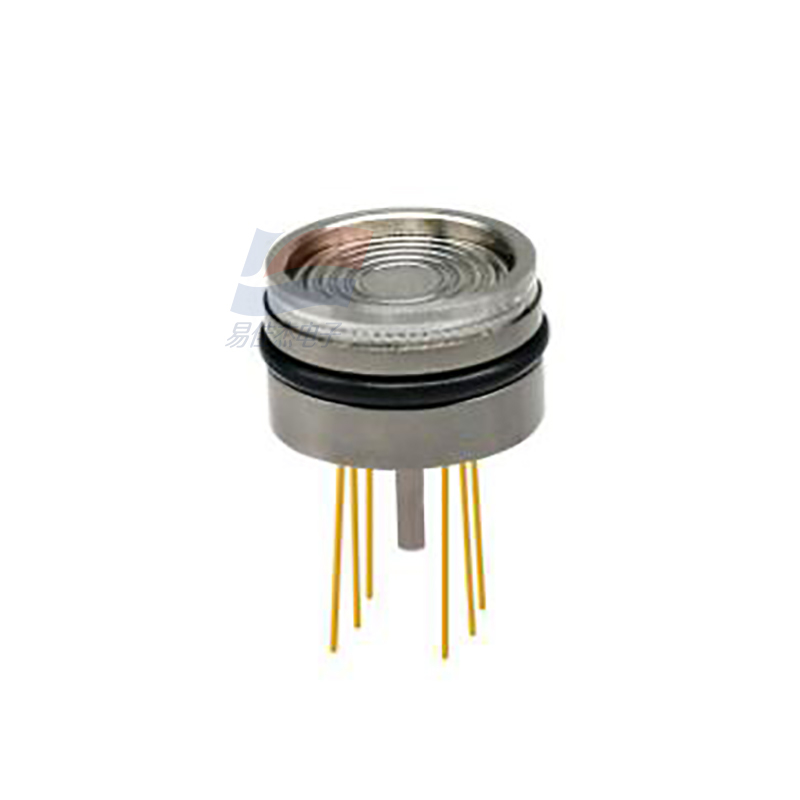

Large Image : ADS21 Diffuse Silicon Gauge Pressure Sensor Fast Response

Product Details:

Place of Origin:	China
Brand Name:	YJJ
Model Number:	ADS21

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Western Union
Supply Ability:	3000/pcs/month

Contact Now

ADS21 Diffuse Silicon Gauge Pressure Sensor Fast Response

Description

Supply Voltage:

2~10V

Working Current:

0.4~2mA

Range:

0.7~2.5MPa

Non-linearity:

±0.3%FS

Highlight:

diffuse silicon pressure sensor

fast response pressure sensor

electronic gauge pressure sensor

ADS21 Diffuse Silicon Gauge Pressure Sensor Fast Response

ADS21 series piezoresistive diffusive silicon manufacturing process is fine, the range ofup to 0.7~ 1.6MPa, real-time external pressure conduc-
tion to the pressure-sensitive sensing chip, and then converted into an electrical signal output. The product shell is made of316L stainless steel
which is resistant to environmental corrosion and has the advantages of high sensitivity, high linearity and high reliability, and can cope with the
OEM requirements in specific scenarios.

Fast response, strong anti-interference ability
Highly stable silicone oil filled medium
Corrosion-resistant 316L stainless steel grade material
2 times the range ofoverload resistance
Industry standard common external diameter Ф19mm

Specification:

Repeatability	±0.3%FS
Pressure hysteresis	±0.3%FS
Overload Pressure	2x
Zero Output	0mV
Full scale output	<140mV
Reponse Time	<5mS
Inputlmpedance	5.2KΩ
Insulation Resistance	100MQ
Operating Temperature	-40~85°C
Storage Temperature	-40~85°C
Output Mode	Analogue Output

ADS21 Diffuse Silicon Gauge Pressure Sensor Fast Response 0
