AGR12 Pressure Sensor 5V Voltage DIP Package Gauge Pressure

AGR12 Pressure Sensor 5V Voltage DIP Package Gauge Pressure

Product Description

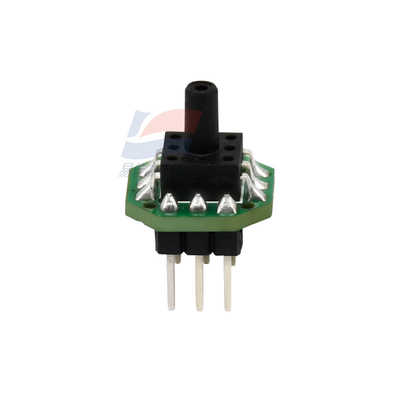

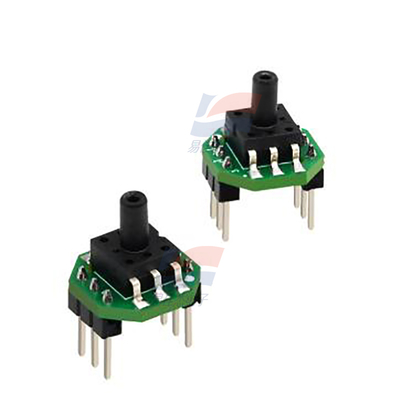

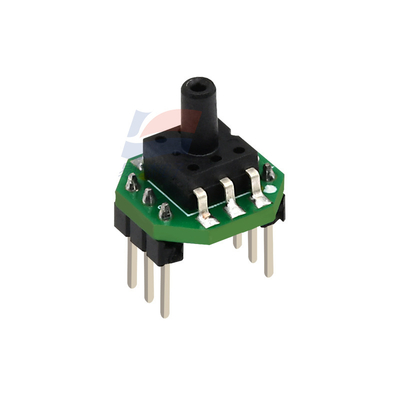

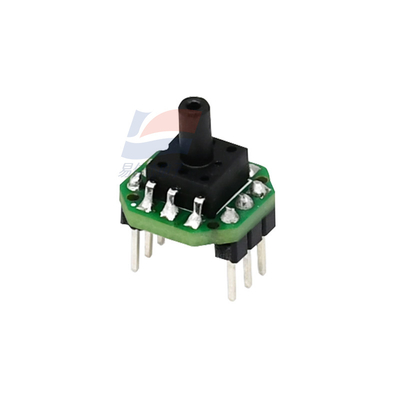

The AGR12 pressure sensor adopts a DIP-like package, which is convenient for inserting and removing components and is very suitable for automated assembly equipment; the SOP-packaged pressure sensor and signal processing circuit chip are installed on both sides of the PCB board, which digitally compensates the sensor's offset, sensitivity, temperature drift and nonlinearity, and generates a calibrated and temperature-compensated standard voltage signal with the supply voltage as a reference. It is an ideal low-cost, high-precision pressure sensor.
The AGR12 pressure sensor is small in size and easy to install. The output signal can be calibrated according to user requirements. It is widely used in medical electronics, automotive electronics, sports and fitness equipment and other fields.

Product Features
* Measuring range -100kPa～100kPa
* Gauge pressure type
* Applicable to non-corrosive gases
* 5V power supply
* Standard voltage output or proportional voltage output optional

Specification:
