26PCCFD2G Pressure Sensor For Medical Equipment Water - related Applications

                  26PCCFD2G Pressure Sensor For Medical Equipment Water - related Applications

• Product Features:
  • High - performance Sensing Element: Adopts a specialized piezoresistive micromachined sensing element, which can provide high - performance, reliability, and accuracy, ensuring accurate measurement of pressure.
  • Low - power Design: With a low - power consumption design, it is suitable for applications where power consumption needs to be considered. The unamplified and uncompensated Wheatstone bridge circuit can provide a stable mV output within the sensing range of 1 psi to 250 psi.
  • Wide Temperature Range: The operating temperature range is from - 40 °C to 85 °C, which enables it to work in a variety of environmental conditions, and it can also operate normally under frozen conditions.
  • Good Media Compatibility: It can be used to measure various wet and dry media that are compatible with polyphthalamide (PPA) plastics, such as nitrogen, oxygen, and water, with strong adaptability.

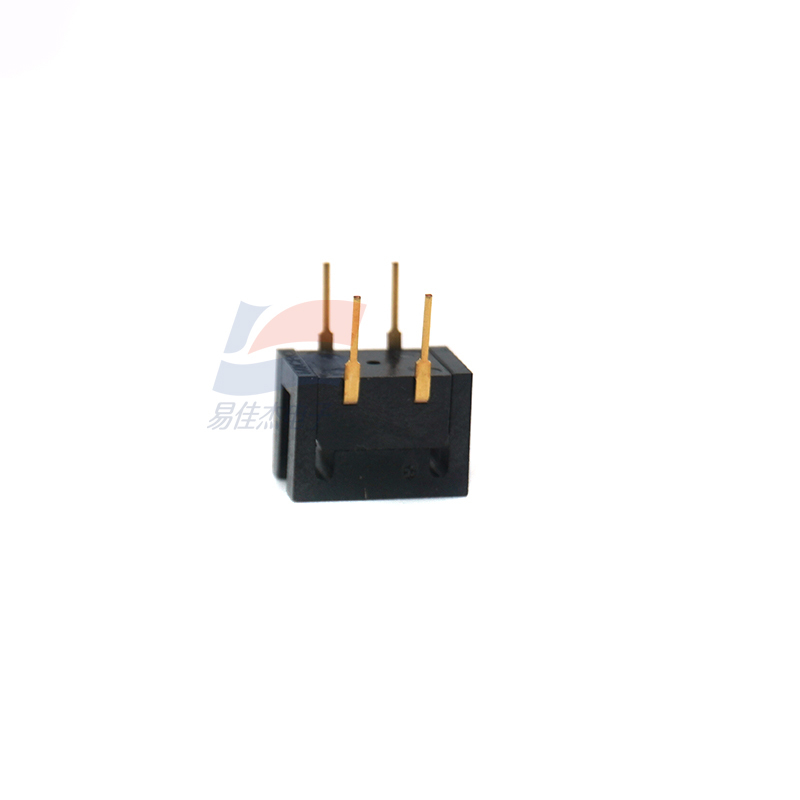

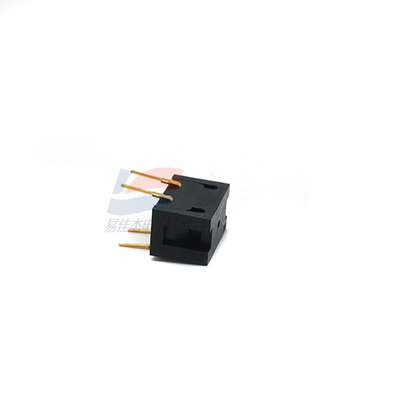

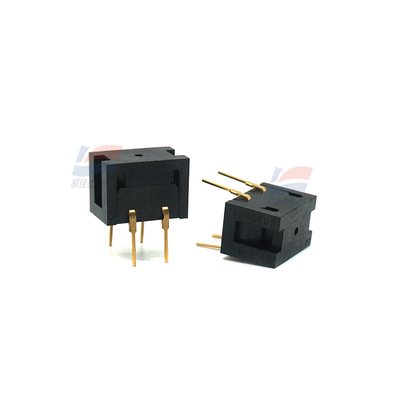

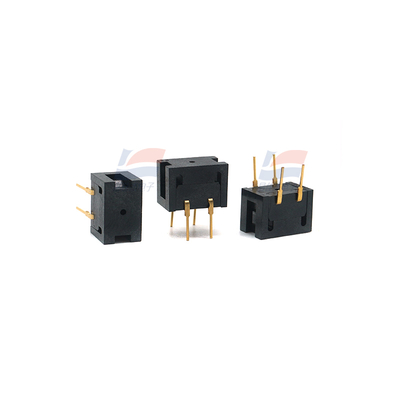

  • Compact Size: The rectangular structure and through - hole mounting method, with a size of 8.0 mm in breadth, 9.0 mm in height, and 12.7 mm in length, are easy to install and integrate into various equipment.
  • RoHS Compliance: Complies with RoHS standards, which is environmentally friendly, and the design and manufacturing meet ISO 9001 standards, with reliable quality.
• Product Uses:
  • Medical Equipment: It can be used in oxygen concentrators to measure the bed - screen pressure to optimize system performance; in dental chairs to control the air pressure in various dental instruments; in hemodialysis machines to monitor the correct pressure to ensure optimal blood filtration; and in respirators to measure the exhaled pressure to ensure correct respiratory analysis.
  • Water - related Applications: Used in water control valves to monitor the water consumption of homes and buildings; applied to irrigation equipment to control the water pressure and flow rate delivered, helping to achieve efficient water use.
  • Industrial Process Control: Used in pressure valves to measure and control the pressure in industrial processes; applied to air compressors to control the pressure supplied to the end - user equipment; also can be used for filter monitoring to detect whether the filter is blocked and needs to be replaced.
