Product Description:

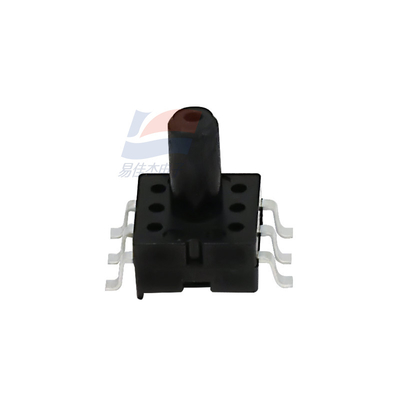

YJJ AGR10 0-350 kPa MEMS Air Gas Pressure Sensor Gauge Pressure Sensor For Biomedical Applications
Features:
AGR10 gauge pressure series pressure sensor is applicable in fields such as biomedicine, vacuum negative pressure, and household appliances. Its core component is a piezoresistive pressure-sensitive chip fabricated using MEMS technology. This chip consists of an elastic membrane and four pressure-sensitive resistors integrated onto the membrane. The four pressure-sensitive resistors form a Wheatstone bridge structure. When pressure is applied to the elastic membrane, the bridge will generate a voltage output signal proportional to the applied pressure. By measuring the output voltage of the Wheatstone bridge, the pressure value can be calculated.

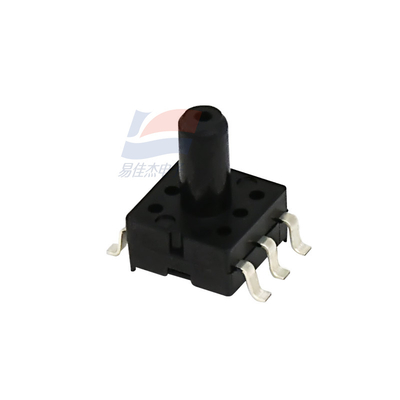

The AGR10 gauge pressure series pressure sensor is packaged in a standard SOP6 form, facilitating surface mount installation for users. AGR10 has excellent linearity, repeatability, high sensitivity, and stability.
The AGR10 gauge-type series pressure sensors can be applied in the following fields:
Biomedical: Electronic blood pressure monitors, ventilators, oxygen generators, nebulizers, monitoring devices, etc.;
Industrial applications: Negative pressure measurement, pressure gauges, etc.;
Household appliances: Washing machines, beer machines, coffee machines, vacuum cleaners, water purifiers, water heaters, etc.;
Vacuum negative pressure: Vacuum packaging machines, vacuum mixers, vacuum blenders, vacuum preservation boxes, vacuum pumps, etc.
Constant voltage supply: < 12.5V
Constant current supply: < 2.5mA
Measurement range: 5, 10, 40 100, 200, 350kPa
Repeatability: ±0.3% FS
Operating environment: -30 to 100℃
Zero output: -15 to 15 mV
Dimensions: 11.5 * 10.6 * 7 mm
Specifications:
| Constant voltage supply |
< 12.5V |
| Temperature |
-40℃ ~ +80℃ |
| Repeatability |
±0.3%FS |
| Temperature |
±0.5℃ |
