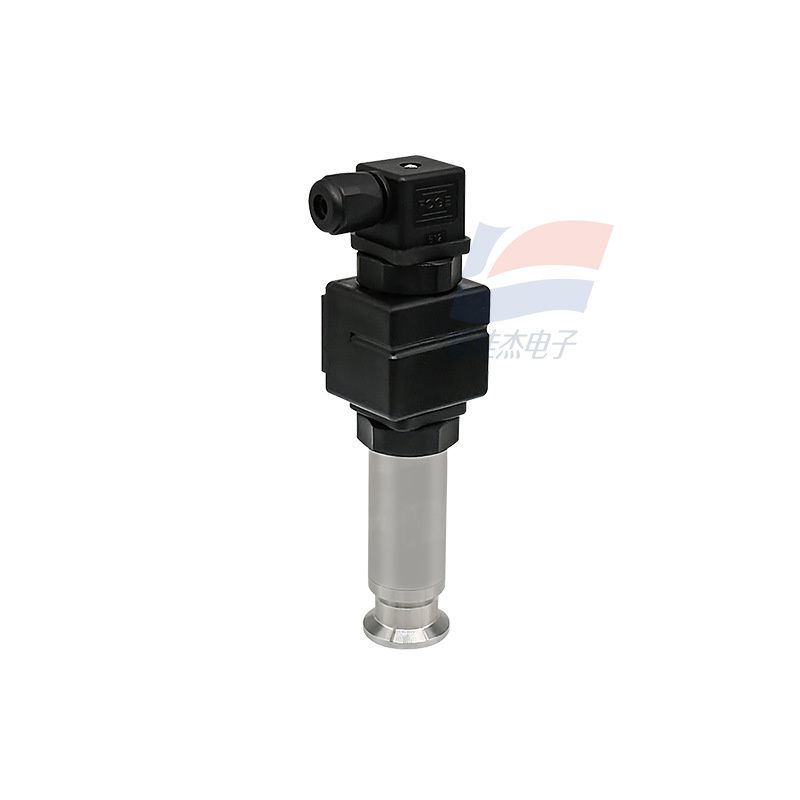

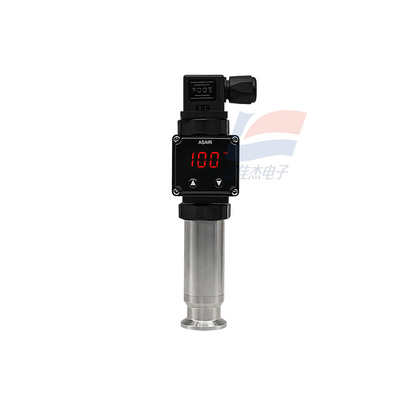

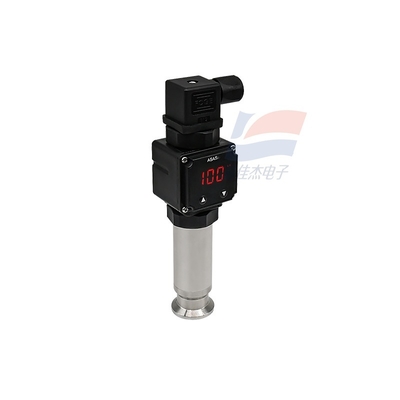

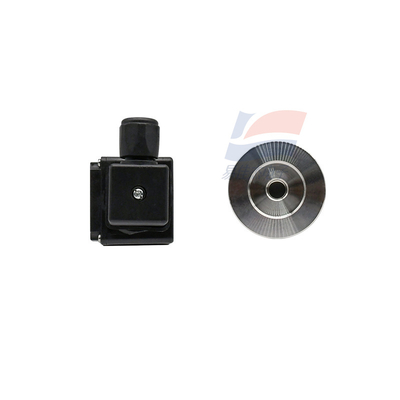

AGP11 Piezoresistive Vacuum Gauge High Precision Vacuum Measurement

Large Image : AGP11 Piezoresistive Vacuum Gauge High Precision Vacuum Measurement

Product Details:

Place of Origin:	China
Brand Name:	YJJ
Model Number:	AGP11

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000PCS/Month

Contact Now

AGP11 Piezoresistive Vacuum Gauge High Precision Vacuum Measurement

Description

Range:

0-100 Torr, 0-1000 Torr

Accuracy:

±0.5% FS

Power Supply:

9-24 VDC

Output Signal:

0-10 VDC, 4-20 MA

Highlight:

AGP11 piezoresistive vacuum gauge

high precision vacuum measurement sensor

electronic pressure sensor with warranty

AGP11 Piezoresistive Vacuum Gauge High Precision Vacuum Measurement

The AGP11 series is a piezoresistive vacuum gauge featuring a high-precision, high-stability diffused silicon oil-filled sensor core and an integrated electronic controller and sensor module. This design leverages the piezoresistive effect and excellent elastic deformation properties of semiconductor materials. Advanced packaging technology and comprehensive assembly processes ensure product quality and performance. The AGP11 series provides an analog voltage output and offers high accuracy, stability, corrosion resistance, excellent repeatability, light weight, and low maintenance. The AGP11 series is rigorously calibrated for accuracy, repeatability, and response time before shipment.

Specification:

Response time	50ms
Overload pressure	300kPa
Load resistance	10kΩ
Operating temperature	5-45°C
Storage temperature	-5-60°C
Connection	KF16
Weight	180g

AGP11 Piezoresistive Vacuum Gauge High Precision Vacuum Measurement 0
