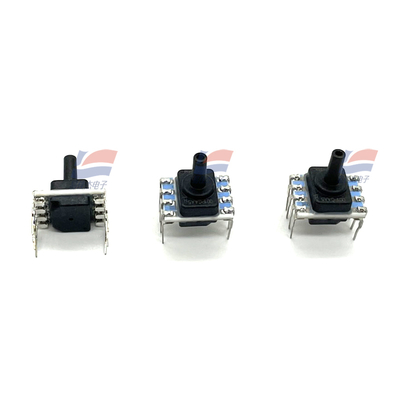

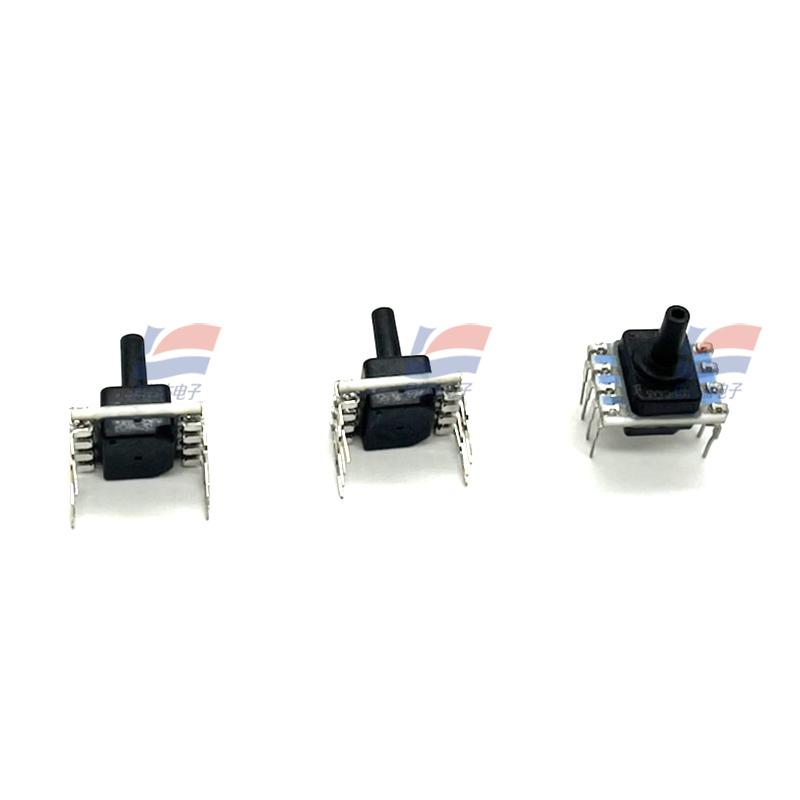

YJJ NSCSAAN100KDUNV ±100 KPa Integrated Pressure Sensor Is Used In Medical Devices

Product Description:

YJJ NSCSAAN100KDUNV ±100 KPa Integrated Pressure Sensor Is Used In Medical Devices

Features:

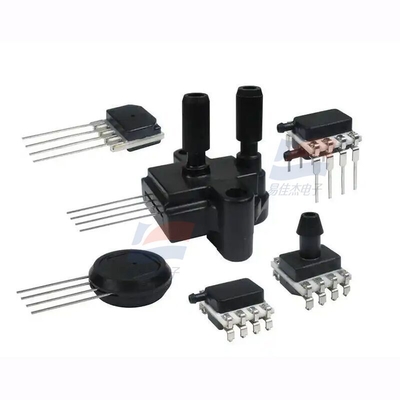

Stability and reliability you can count on • Industry-leading accuracy down to ±0.15 %FSS BFSL • Port and housing options simplify integration • Wide pressure range from ±2.5 mbar to ±10 bar | ±250 Pa to ±1 MPa | ±1 inH2 O to ±150 psi • Small package size • Low power consumptionTruStability® Board Mount Pressure Sensors Honeywells TruStability® TSC Series and NSC Series are piezoresistive silicon pressure sensors offering a ratiometric analog output for reading pressure over the specified full scale pressure span and temperature range.

TSC Series:

• Temperature compensated and unamplified.

• Compensation makes it easier to integrate the sensor into a system by eliminating the need to calibrate the system over temperature and also offers reduced part-to-part variation.

• Compensated temperature range is 0 °C to 85 °C [-32 °F to 185 °F]. • Operating temperature range is -40 °C to 85 °C [-40 °F to 185 °F]. • Measures differential or gage pressures

NSC Series:

• Uncompensated and unamplified.

• Allows customers the flexibility of performing their own calibration while still benefiting from the industry-leading stability, accuracy, and repeatability that the Honeywell TruStability® Pressure Sensors provide. • Operates as specified from -40 °C to 85 °C [-40 °F to 185 °F].

• Measures absolute, differential or gage pressures. The absolute versions have an internal vacuum reference and an output value proportional to absolute pressure. Differential versions allow measurement of pressure between two pressure ports. Gage versions are referenced to atmospheric pressure and provide an output proportional to pressure variations from atmosphere. The TSC Series and NSC Series sensors are intended for use with non-corrosive, non-ionic gases, such as air. Port 1 can also be used for non-corrosive, non-ionic liquids on sensors rated above 60 mbar | 6 kPa | 1 psi.

Specifications:
