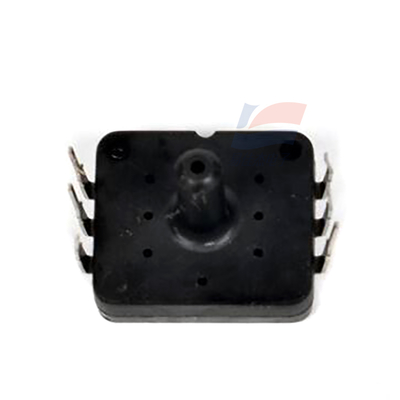

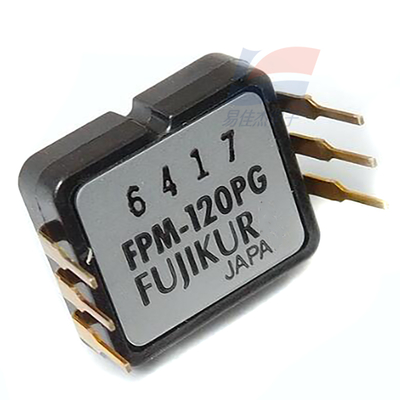

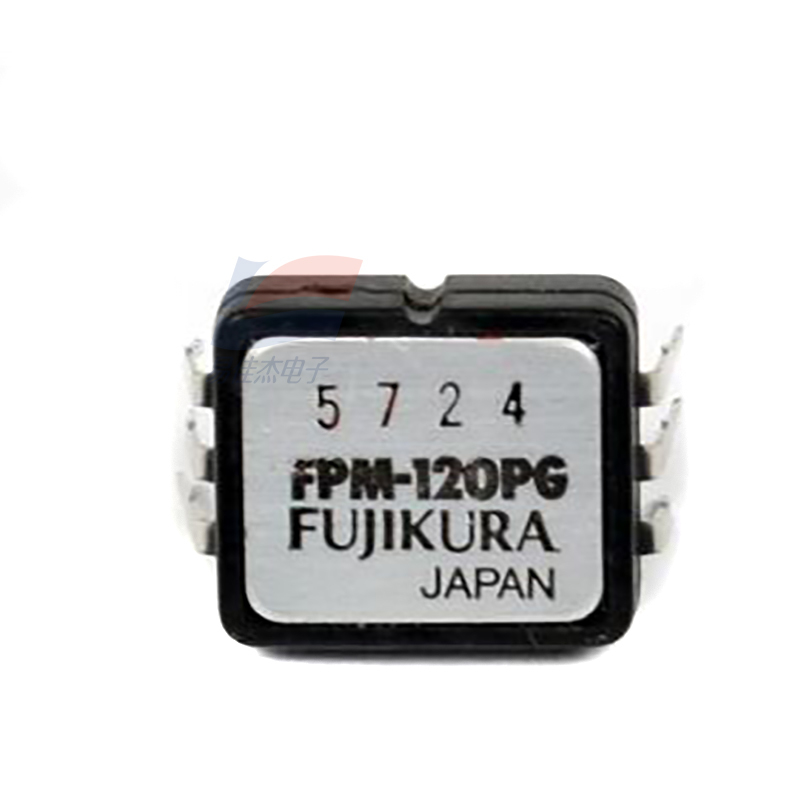

FPM-120PG Gauge Pressure Sensors Dual In Line Package DIP

Large Image : FPM-120PG Gauge Pressure Sensors Dual In Line Package DIP

Product Details:

Place of Origin:	Japan
Brand Name:	Fujikura
Model Number:	FPM-120PG

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000PCS/Month

Contact Now

FPM-120PG Gauge Pressure Sensors Dual In Line Package DIP

Description

Measurable Pressure Range:

-98.08 To 827.4kPa

Temperature Range:

0 To 50℃

Pressure Media:

Non-corrsive Gases Only(no Liquid)

Excitation Current:

1.5mADC

Highlight:

DIP gauge pressure sensor

electronic pressure sensor with warranty

dual in line pressure sensor

FPM-120PG Gauge Pressure Sensors Dual In Line Package DIP

Offset voltage (mV)
Voff= V(P1,T)
Voff(0)= V(P1,T1)
Voff(25)= V(P1,T2)
Voff(50)= V(P1,T3)
Output voltage at full scale (mV)
Vfs = V(P3,T)
Vfs(0)= V(P3,T1)
Vfs(25)= V(P3,T2)
Vfs(50)= V(P3,T3)
Output span voltage (mV)
SV= Vfs - Voff
SV(0)= Vfs(0)- Voff(0)
SV(25)= Vfs(25)- Voff(25)
SV(50)= Vfs(50)- Voff(50)

Specification:

Operating temperature	-20 to 100℃
Storage temperature	-40 to 120℃
Operating humidity	30 to 80 (Non dew condition)
Output span voltage	60 to 140mV
Offset voltage	+1-20 (at 0kPa)mV
Bridge resistance	4000 to 6000Ω

FPM-120PG Gauge Pressure Sensors Dual In Line Package DIP 0
