BPW21R Planar Silicon PN Photodiode Low Dark Current TO-5 Package

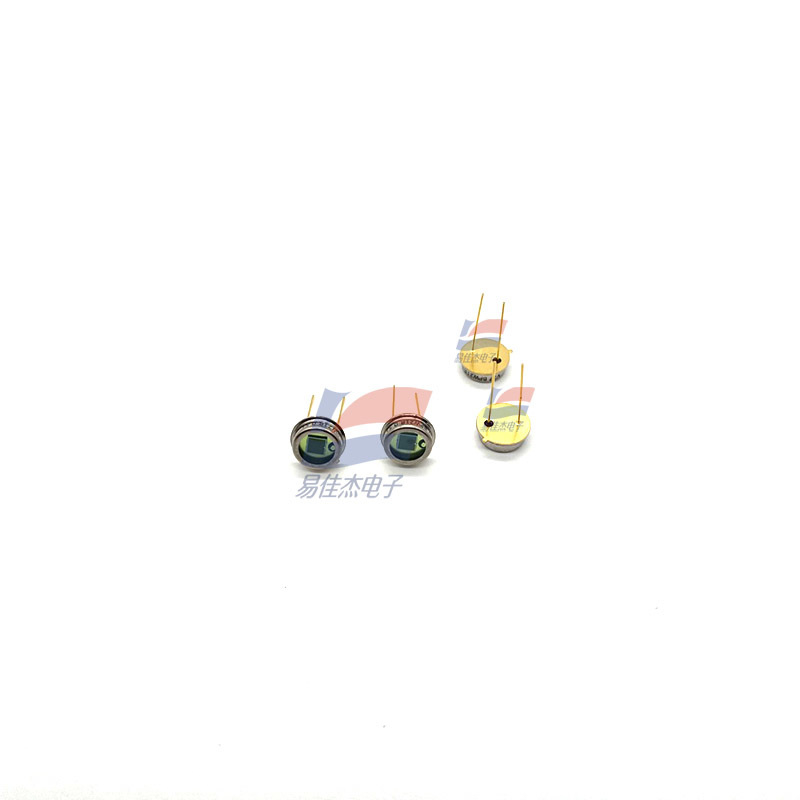

Large Image : BPW21R Planar Silicon PN Photodiode Low Dark Current TO-5 Package

Product Details:

Place of Origin:	USA
Brand Name:	Vishay
Model Number:	BPW21R

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000PCS/Month

Contact Now

BPW21R Planar Silicon PN Photodiode Low Dark Current TO-5 Package

Description

Reverse Voltage:	10V	Power Dissipation:	300mW
Junction Temperature:	125℃	Operating Temperature Range:	- 40 To + 125℃
Storage Temperature Range:	- 40 To + 125℃	Soldering Temperature:	260℃
Highlight:	Planar silicon PN photodiode low dark current , TO-5 package photodiode infrared sensor , BPW21R photodiode with warranty

BPW21R Planar Silicon PN Photodiode Low Dark Current TO-5 Package

FEATURES
• Package type: leaded
• Package form: TO-5
• Dimensions (in mm): Ø 8.13
• Radiant sensitive area (in mm2): 7.5
• High photo sensitivity
• Adapted to human eye responsivity
• Angle of half sensitivity: ϕ = ± 50°
• Hermetically sealed package
• Cathode connected to package
• Flat glass window
• Low dark current
• High shunt resistance
• High linearity
• Compliant to RoHS Directive 2002/95/EC and in
accordance with WEEE 2002/96/EC
APPLICATIONS
• Sensor in exposure and color measuring purposes

Specification:

Forward voltage	1.0-1.3V
Breakdown voltage	10V
Reverse dark current	2-30nA
Diode capacitance	1.2nF
Dark resistance	38GΩ

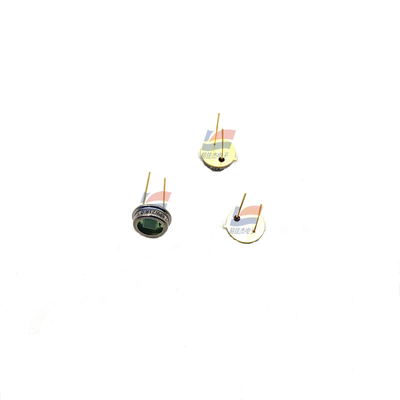

BPW21R Planar Silicon PN Photodiode Low Dark Current TO-5 Package 0
