S6428-01 Si Photodiodes RGB Color Sensor Plastic Material

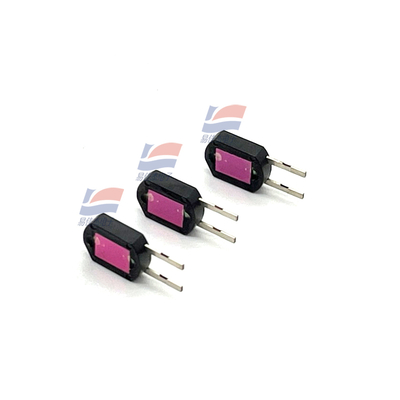

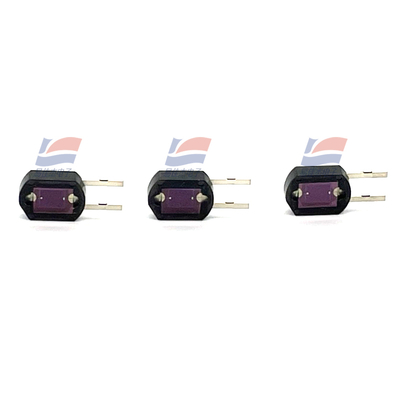

Large Image : S6428-01 Si Photodiodes RGB Color Sensor Plastic Material

Product Details:

Place of Origin:	Japan
Brand Name:	Hamamatsu
Model Number:	S6428-01

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000PCS/Month

Contact Now

S6428-01 Si Photodiodes RGB Color Sensor Plastic Material

Description

Photosensitive Area:

2.8 × 2.4 Mm

Spectral Response Range:

400 To 540 Nm

Dark Current (max.):

0.02 NA

Terminal Capacitance:

200 PF

Highlight:

Si photodiodes RGB color sensor

plastic material photoelectric sensor

infrared RGB color sensor

S6428-01 Si Photodiodes RGB Color Sensor Plastic Material

Features
-Plastic package (6 × 8 mm)
-Spectral response range: 400 to 540 nm (λp=460 nm)
-Insensitive to near IR range
-High sensitivity: 0.22 A/W Typ. (λ=λp)
-Low dark current

Applications
White balance adjustment
Color identification
Projector and Ty brightness level detection
Color control
Light source color temperature detection

Specification:

Spectral response range	400-540nm
Peak sensitivity wavelength	460nm
Photo Sensitivity	0.22A/W
Dark Current	5-20V

S6428-01 Si Photodiodes RGB Color Sensor Plastic Material 0
