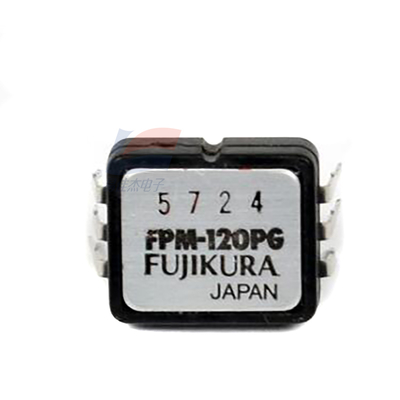

FPM-120PG Pressure Sensor For Medical Equipment Automotive Field Liquid Crystal Display Printers

                   FPM-120PG Pressure Sensor For Medical Equipment Automotive Field Liquid Crystal Display Printers

Product Uses:

• Medical Equipment: It is suitable for blood pressure monitors and other medical devices, which can accurately measure the pressure - related parameters in the human body and provide important data support for medical diagnosis and treatment.
• Automotive Field: It can be used in the automotive system to monitor the pressure of relevant components, such as the pressure in the air - conditioning system, the oil pressure of the engine, etc., to ensure the normal operation of the vehicle.
• Liquid Crystal Display Printers: It is used for pressure detection in liquid - crystal display printers, which helps to control the printing process and ensure the printing quality, such as detecting the pressure of ink - jet nozzles to ensure uniform ink output.
• Vacuum Cleaners: Applied to vacuum cleaners, it can monitor the vacuum degree inside the vacuum cleaner, help users understand the working status of the vacuum cleaner, and ensure the cleaning effect.

Product Features:

• Piezoresistive Sensing Principle: Adopting the piezoresistive sensing principle, it has high sensitivity and can accurately convert the pressure signal into an electrical signal, which is convenient for subsequent signal processing and analysis.
• Small - size Package: With a DIP - 6 rectangular package, the size is relatively small, with a body breadth of 12.0 mm, a height of 4.0 mm, and a length of 14.0 mm, which is convenient for installation in various equipment, especially in occasions with limited space.
• Through - hole Mounting: The through - hole mounting method is adopted, which is firm and reliable, and is easy to be integrated into the circuit board, and has good anti - vibration and anti - interference capabilities.
• Wide Pressure Measurement Range: The pressure range can reach from - 14.22 psi to 120 psi, which can meet the pressure measurement needs of different application scenarios, whether it is low - pressure or high - pressure occasions, it can work normally.
• Analog Voltage Output: The output signal is an analog voltage, which can be directly connected to the analog - to - digital conversion circuit or other signal - processing circuits, and has good compatibility with the traditional circuit system.
• Low Power Consumption: The operating current is at most 1.5 mA, and the power consumption is low, which is beneficial to saving energy, especially suitable for battery - powered equipment.
• Good Temperature Adaptability: The operating temperature range is 0℃ - 50℃, which can work normally in a general - temperature environment, and has a certain adaptability to the ambient temperature change.
