Product Description:

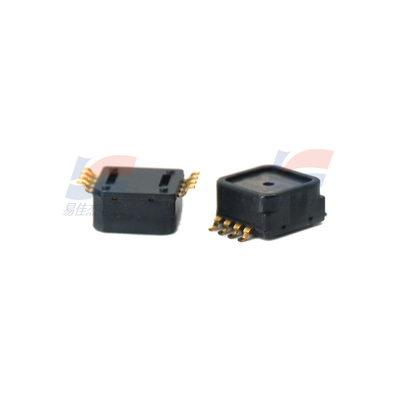

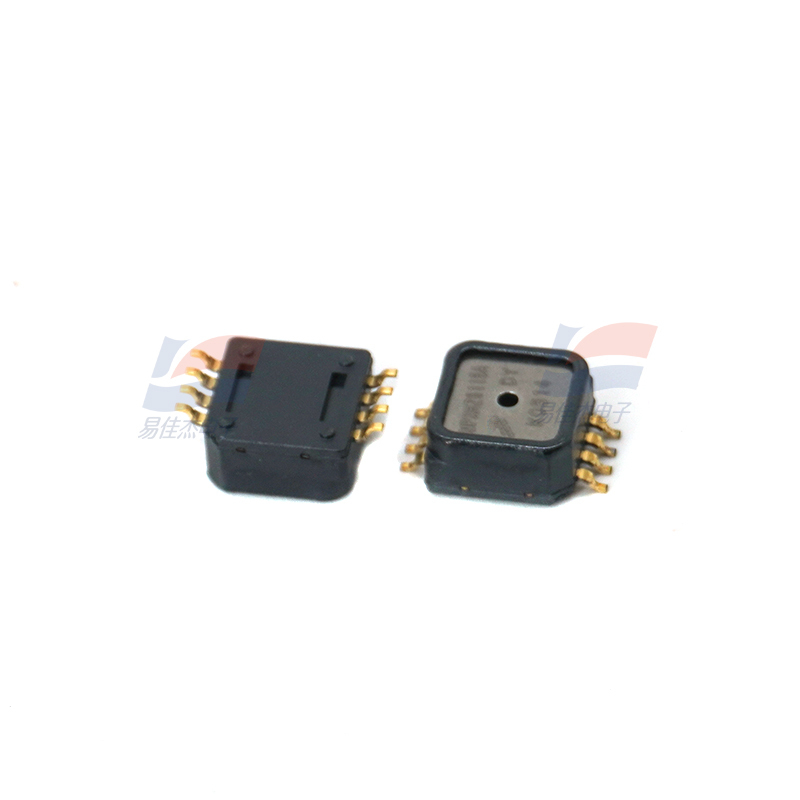

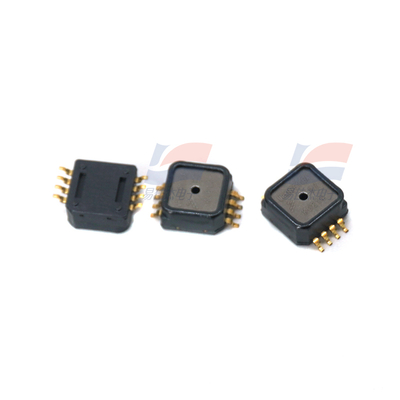

YJJ MPXHZ6115AC6T1 Board Interface Pressure Sensor Is Used In Medical Devices
Features:
Pressure sensor transmitter MPXHZ6115AC6T1
Technical Data
Media Resistant and
High Temperature Accuracy
Integrated Silicon Pressure Sensor
for Measuring Absolute Pressure,
On-Chip Signal Conditioned,
Temperature Compensated
and Calibrated
The MPXAZ6115A series sensor integrates on-chip, bipolar op amp circuitry
and thin film resistor networks to provide a high output signal and temperature
compensation. The sensor's packaging has been designed to provide resistance
to high humidity conditions as well as common automotive media. The small form
factor and high reliability of on-chip integration make the -
Semiconductor, Inc. pressure sensor a logical and economical choice for the
system designer.
The MPXAZ6115A series piezoresistive transducer is a state-of-the-art,
monolithic, signal conditioned, silicon pressure sensor. This sensor combines
advanced micromachining techniques, thin film metallization, and bipolar
semiconductor processing to provide an accurate, high level analog output signal
that is proportional to applied pressure.
Specifications:
| Pressure type |
Absolute |
| Work pressure |
15 kPa to 115 kPa |
| Accuracy |
1.5 % |
| Output type |
Analog |
