Product Description:

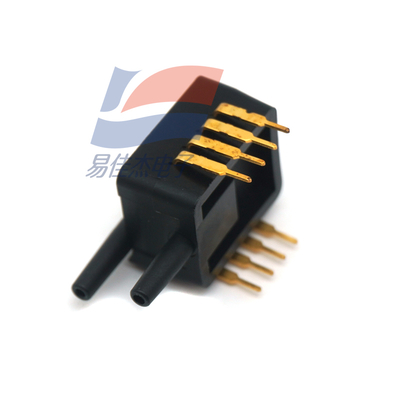

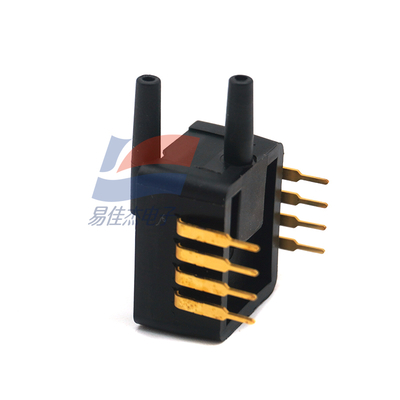

YJJ ASDXACX030PAAA5 Internal Vacuum Reference Absolute Pressure 30Psi Silicon Pressure Sensor
Features:
ASDX series, analog output, amplification, absolute pressure, 30 psi, AC pressure interface, DIP, 10% to 90% calibration, 5.0 Vdc power supply.
ASDX series are silicon pressure sensors, 2 providing IC or SPI digital interfaces for pressure readings within specified full range pressure spans and temperature ranges.
ASDX series utilizes proprietary integrated circuits on circuit boards for comprehensive calibration and sensor zero, sensitivity, temperature impact and nonlinear temperature compensation.The calibrated pressure output is updated at a rate of about 1 kHz.
In 0 ° C to 85 ° C [32 ° F to 185 ° F] the temperature range of the calibration standard ASDX series.The sensor is designed to operate on a single power supply of 3.3 Vdc or 5.0 Vdc.
These sensors can be used to measure absolute, differential and gauge pressures.The absolute pressure sensor USES vacuum pressure as its internal reference value and its output value is proportional to the absolute pressure.Differential pressure sensors allow pressure to be applied to either side of the inductive diaphragm.The gauge pressure sensor takes the atmospheric pressure as the reference and provides the output value which is proportional to the atmospheric pressure difference.
ASDX series sensors are intended for use in non-corrosive and non-ionic working fluids such as air and dry gases.All products are designed and manufactured according to ISO 9001 standard.
Product features
Output options: 14-bit Numbers compatible with I2C or SPI
In 0 ° C to 85 ° C [32 ° F to 185 ° F] temperature range of ASIC adjustment precision and temperature compensation
Low operating voltage
Type of absolute, differential and gauge pressures
Pressure ranges from 10 inH2O to 5 psi
InH2O, psi, mbar, bar and kPa are used for standard calibration
The total error band is 2.0 %FSS at full range
Comply with RoHS standard
Specifications:
| Pressure type |
Absolute |
| Work pressure |
30 psi |
| Accuracy |
2% |
| Working power supply voltage |
5V |
