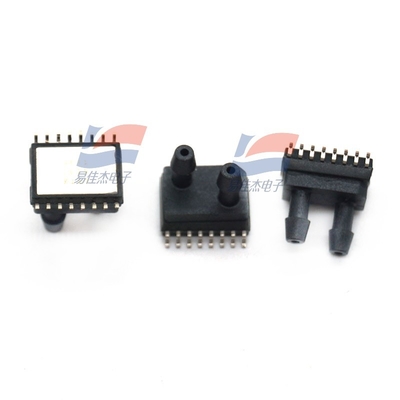

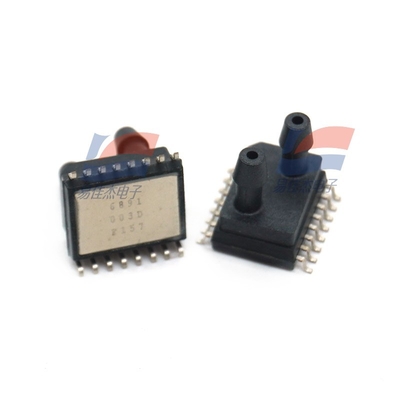

YJJ XGZP6878 Suitable For Non-Corrosive Gas Or Liquid Pressure Sensor Module

Product Description:

YJJ XGZP6878A Suitable For Non-Corrosive Gas Or Liquid Pressure Sensor Module

Features:

Product features

· Measuring range 0kPa ~ 100kPa... 1600kPa

Absolute pressure type

· Suitable for non-corrosive gases or liquids

·5V or 3.3V or 3.0V power supply is optional

· Standard voltage output or proportional voltage output is optional

Application field

· Tire pressure gauge, MAP sensor, on-board air pump, brake power and other automotive electronics

· Washing machine, rice cooker, water heater, water purifier, coffee machine, beer machine and other household appliances

· Air pump, air compressor, vacuum pump, pressure instrument and other fields

· Hydrostatic survey, diving equipment and other absolute pressure systems

An overview of the

XGZP6878A pressure module adopts SOP8 encapsulation form, through the pressure sensor core and signal processing circuit core bound inside the shell

Offset, sensitivity, temperature drift and nonlinearity of the sensor are digitally compensated, and the supply voltage is used as a reference to generate a calibrated temperature

Standard voltage signal after compensation. The surface of the chip in the pressure sensor module is covered with fluorinated silica gel, which can be waterproof, moisture-proof and oil-gas resistant.

XGZP6878A pressure module is small in size, easy to install, can be calibrated according to user requirements output signal, widely used in consumer electronics, small household appliances,

All kinds of water level measurement and instrumentation and other fields.

Specifications:
