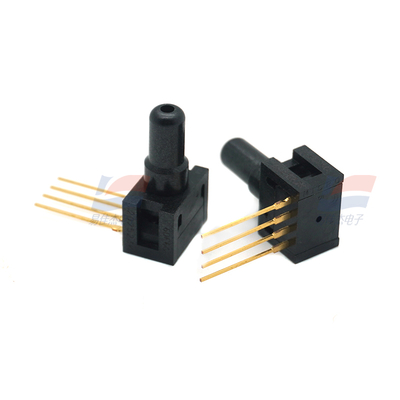

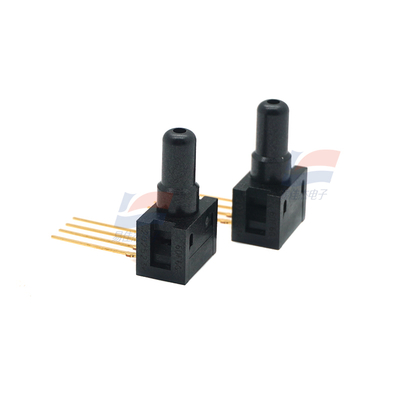

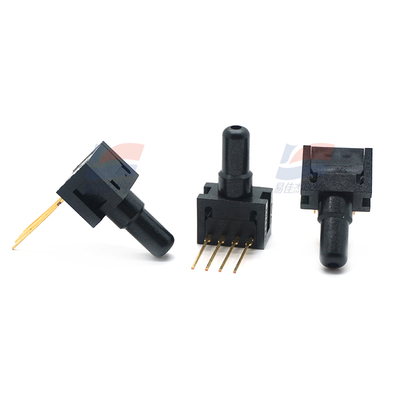

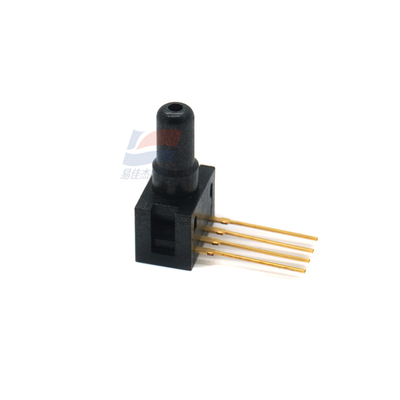

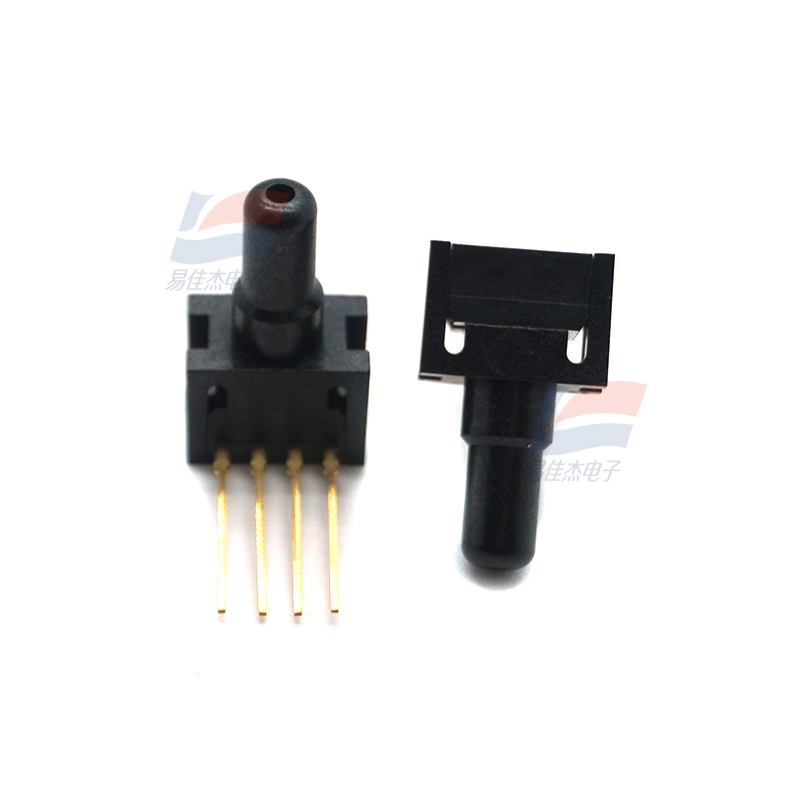

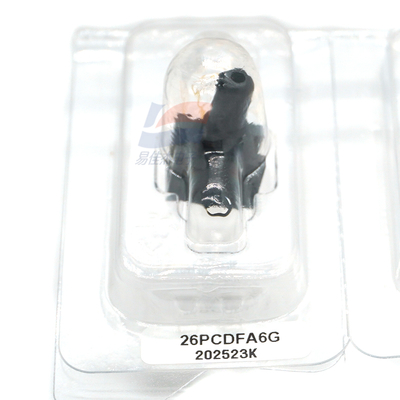

26PCDFA6G Board Mount Pressure Sensors Through Hole SIP4 Packing

26PCDFA6G Board Mount Pressure Sensors Through Hole SIP4 Packing

Miniature Low Pressure Sensors 26PC Series, Compensated/Unamplified 1 psi to 250 psi

The 26PC Series Miniature Pressure Sensors are small, cost-effective devices intended for use with wet or dry media.
These sensors feature proven sensing technology that uses a specialized piezoresistive micromachined sensing element
to offer high performance, reliability, and accuracy. Each sensor contains four active piezoresistors that form a Wheatstone
bridge. When pressure is applied, the resistance changes and the sensor provides a milliVolt output signal that is
proportional to the input pressure.
